How To Measure A Bike Wheel & Tire + Bike Wheel Size Chart

As you can imagine, wheels are an essential component of a bike.

Not only do bike wheels allow us to roll smoothly while cycling, but they also provide dampening from lumps and bumps as well as providing traction to the surface we’re riding.

Many cyclists don’t understand how to measure a bicycle wheel, or how to measure a bike tire so I put together this bicycle wheel size guide to help you determine your current wheel size and what size bike tires you need for your wheels.

Riding with wheels that are too big or small can cause damage to your bike, so pay attention to the steps below, and you won’t have any issues!

Ready to learn how to measure a bike wheel? Let’s hit the road.

Add a header to begin generating the table of contents

How to Measure a Bike Tire (How to Measure a Bicycle Tire)

Based on how much time you want to allocate to measuring your bike wheel, you can take a few different approaches.

You could attempt first to contact the manufacturer or the shop where you purchased your bike. Retailers and manufacturers have a record of all measurements and sizing information.

But be warned, retailers can be a nightmare to get hold of and often take a long time to reply.

If you have a bike tire on your wheel, you can generally find required measurement information on the tire wall (side of tire – see picture below).

Tire walls usually display the size as determined by the European Tire and Rim Technical Organization, or ETRTO and will look something like the picture below.

Bike tire wall size picture

If you can’t find the sizing on the wall of your tire, don’t panic. Below you’ll find several methods to help you understand how to measure your bike wheel.

Alongside understanding more about your bicycle’s rim, a few of the methods below will also help you determine which tire size your wheel needs.

These steps are beneficial in those cases where you do not have a bike tire or have custom wheels, as the measurements you seek may not be readily available to you.

Typically there are two main approaches for how to measure bicycle wheel size.

Just before we begin, if your wheel doesn’t have a tire fitted, click here to move on to the next step.

The Standard Method (Easiest and Fastest Ways to Find Bike Tire Size)

The quickest way to determine your bike wheel size is the standard method.

The standard method measures the tire width and tire diameter in inches.

How to Measure Bike Wheel Size with the Standard Method

Let’s start with a step by step guide on completing the standard method of bike wheel measuring:

Bike Wheel RadiusBike Tire Width
  1. Begin by propping your bicycle on its kickstand or against a wall so that it’s stable.
  2. Using a tape measure, place the bottom of the tape at the lowest point of the tire (on the ground) and measure in a straight line to the centre of the bike wheel to find your wheel radius (as shown in the image above).
  3. Multiply your wheel’s radius by two to find the wheel’s diameter.
  4. Now, measure the tire’s width by placing the measuring tape across the top of it.
  5. The numbers obtained are your standard measurements. Be sure to list diameter first, followed by the tire width.
  6. Bike wheel diameters are rounded to the nearest half-inch, so if your measurements are just over or under, round up or down to the nearest size.

The ISO Method (Most Accurate Way to Measure Bike Tire Size)

The most accurate way to measure bike tire size is through the ISO method.

ISO stands for the International Organization for Standardization, a measuring system that uses millimetres to gain the most accurate sizing possible for a bike tire.

Using this method, one measures the width of the tire and the inner diameter, or bead seat diameter.

Towards the end of the article, you’ll find a chart allowing you to compare the different ISO wheel sizes and what types of bike or vehicle each size of wheel is used with. Click here to view the chart.

How To Measure Bike Tire with the ISO Method

Here is a step by step guide on how to measure a bike tire using the ISO standardization method.

  1. Not all wheel brands and manufacturers use the ISO standardization, so if you have a tire on your wheel, check it to see if there is a printed ISO measurement.
  2. If there is no visible ISO measurement on your tire, check the wheel rim.
  3. If you can’t find a measurement, lean your bicycle against the wall or with its kickstand so that it’s stable.
  4. With a measuring tape, begin at the centre of the wheel and measure up to the tire’s inner edge (or as close to the bead seat as possible).
  5. If you don’t have a tape measure with millimetre readings, measure in inches and multiply it by 25.4 (for example, 12.25(inches) x 25.4 = 311mm).
  6. Identify this length and multiply it by two for the diameter of your wheel (311 x 2 = 622mm).
  7. Measure the tire’s width by measuring from one side of the tire to the other.
  8. You now have all of the calculations needed for the ISO method. This measurement is listed with the tire’s width first, then the diameter (25-622).

How To Measure a Bike Wheel (Rim) for Tire Size

If you do not have your bike’s tire to hand, you can determine the tire size by measuring your bike’s rim width in millimetres as well.

Based on the average tire and wheel combinations currently on the market, the following charts illustrate the coinciding tire size and rim length.

This bike wheel has an ISO 622mm with an internal bead seat width of 15mm. Not all wheels will display their measurments!

Many rims will display their size somewhere, but some rims may be missing this measurement.

If you cant find. measurement on your wheel’s rim, follow the easy steps below that will help you determine the appropriate tire sizes your rim can handle.

  1. With no tire on your bike wheel, position the wheel vertically and hold it steady.
  2. Take a measuring tape and press it against the inside of the rim, where the tire bead would normally sit.
  3. Measure the internal distance from one side of the rim to the other (as shown in the image above).
  4. Take this width and apply it to the correct table below.

It’s important to note that these charts are based on average measurements; therefore, if possible it’s a good idea to double-check with your wheel’s manufacturer or retailer to confirm all compatible tire sizes.

It’s also important to consider the tire clearance on your fork and rear triangle. If you choose a tire that’s too wide you can end up damaging your frame and a tire that’s too thin can easily cause damage to your rim and inner tube.

Road Bike Rim Width to Tire Size Chart

Tire Size Compatibility Internal Rim Width
23 - 25c 13-15, 17-19mm
25 - 28c 13-15, 17-19, 20-21, 22-23mm
30 - 33c 17-19, 20-21, 22-23, 24-25mm
33 - 35c 17-19, 20-21, 22-23, 24-25mm
38 - 40c 20-21, 22-23, 24-25mm
40 - 43c 20-21, 22-23, 24-25mm
43 - 45c 22-23, 24-25mm
45 - 48c 22-23, 24-25mm
48 - 50c 24-25mm

Mountain Bike Rim Width to Tire Size Chart

Tire Size Compatibility Internal Rim Width
1. 9" Tires 19-23mm
2.0" Tires 19-24mm
2.1" Tires 19-28mm
2.2" Tires 20-30mm
2.3" Tires 21-33mm
2.4" Tires 23-34mm
2.5-2.7" Tires 25-35mm
2.8-3.1" (plus) Tires 22-23, 24-25mm

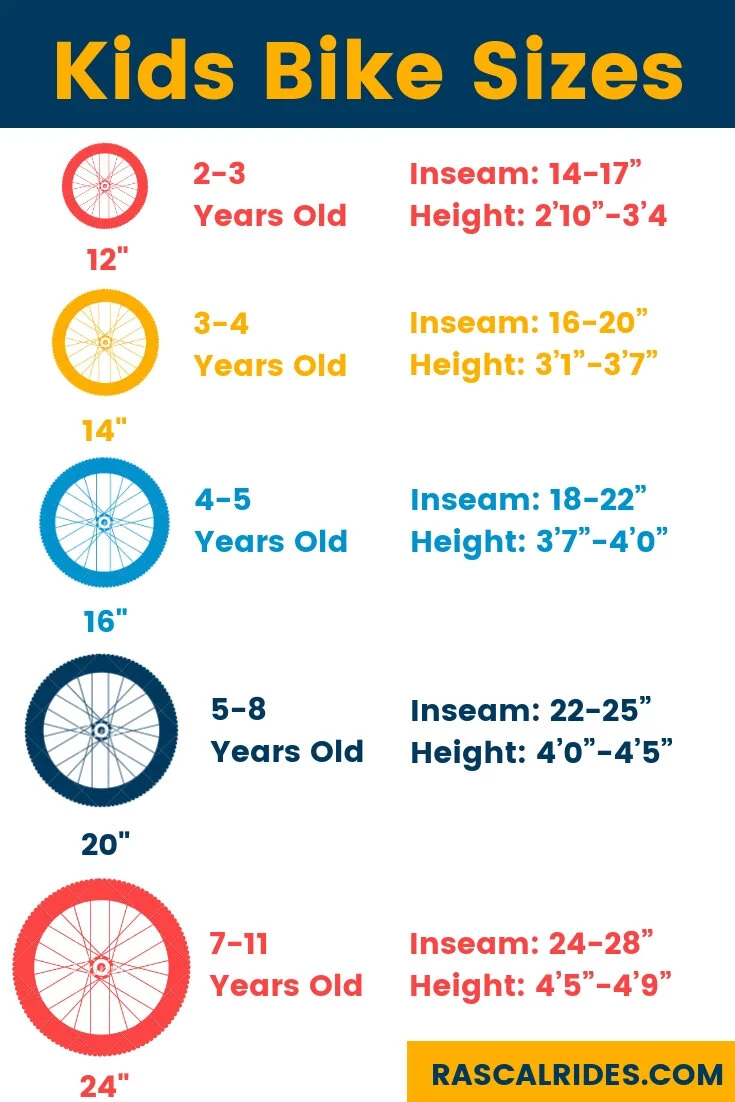

How to Measure Kid's Bike Wheels

The process of measuring a kid’s bike wheel and tire size follows similar steps to those shown above, but kid’s bike tires are measured in inches and are understandably smaller than those of an adult bike.

I’ve put together a simple guide for everything to do with kid’s bike sizing.

If you’re looking to measure the wheels on a kid’s bike, or are looking to determine which size bike is best for your kid, have a read of this guide, which includes all of the bike and wheel size charts you’ll need!

Follow the steps within this guide closely, as a poor fitting kids bike can put you child off cycling for good.

Measure Bike Wheel Circumference for a Bike Computer

Measuring your wheel’s circumference for a bike computer is an important task that will determine the accuracy of the data your computer provides.

To simplify the steps required to measure your wheel’s circumference for a cyclometer, I’ve put together a simple bike wheel circumference guide.

These three simple methods will help you accurately measure your wheel’s circumference.

You won’t need any specialist equipment, apart from a measuring tape.

This may look interesting, but it's one of the easiest ways to measure the circumference of a bike wheel for a bicycle computer!

Most Common Bike Wheel Sizes

Each type of road bike and mountain bike comes with a different set of average wheel sizes. In general, each of these sizes offer a unique set of benefits and drawbacks.

What Is the Most Common Road Bike Wheel Size?

The most common size wheel for a road bike is 700c, and has been the standard size for a number of years.

The 700 refers to the wheel’s diameter of 700 mm, while the “c” is an old French width code for tires.

With “a” characterized as the most narrow width and “d” at the widest, “c” refers to a generally wider size.

Most Common Size of Mountain Bike Wheel

Mountain bike wheels come in three main sizes: 26 inches/559 wheels, 27.5 inches/650b wheels, and 29 inches/622 wheels.

The smaller, 26-inch mountain bike wheels were once considered standard size and are more lightweight and agile than larger sized wheels.

Despite their popularity in the past, 26-inch wheels are no longer the standard, as larger wheels have a better grip, traction, and durability and have therefore become more popular.

Both the 27. 5-inch and 29-inch wheels offer a smoother and more controlled ride while sacrificing some of the acceleration capabilities of a 26-incher.

ISO Wheel Size Chart For Bike Tires and Rims

ISO otherwise known as the International Organization for Standardization developed the ISO wheel size system, which is universal and simplifies the once confusing task of finding the right size wheel for your bike.

The ISO standardization system uses two different numbers, that can often be found printed on the tire or rim walls.

The second number displayed in ISO tire size is the important one and represents the wheel’s bead seat diameter (as shown in the ISO size chart below).

If your wheel rim or tire has no size markings, you can use this ISO wheel size chart after measuring your wheels, to cross-reference and understand more about the size of your bike’s wheels.

ISO Bead Seat Diameter Traditional Sizings Applications
137mm 5. 4" 8 x 11/4 Wheelchairs
152mm 6" 10 x 2 Wheelchairs
203mm 8" 12 1/2 x various Scooters (children's)
254mm 10" 14 x 2.00 Various (children's)
305mm 12" 16 x 1.75 - 16 x 2.125 Folding bikes, some recumbents
317mm 12. 5" 16 x 1 3/4 Schwinn (children's)
337mm 13.25" 16 x 1 3/8 Very rare bike tire
340mm 13.4" 400 A Folding bikes, European bikes (children's)
349mm 13.75" 16 x 1 3/8 Folding bikes, recumbents, bikes (children's)
355mm 14" 18 x 1.5 - x 2.125 Folding bikes, bikes (childrens)
369mm 14. 5" 17 x 1 1/4 Moulton bikes
390mm 15.35" 450 A European bikes ( children's)
406mm 16" 20 x 1.5 - x 2.125 BMX, bikes (children's), folding bikes, recumbents
419mm 16.5" 20 x 1 3/4 Schwinn (children's)
440mm 17.3" 500A European bikes (children's), folding bikes
451mm 17. 75" 20 x 1 1/8; x 1 1/4; x 1 3/8 Bikes (children's), BMX, recumbents, folding bikes
457mm 18" 22 x 1.75; x 2.125 Bikes (children's)
490mm 19.3" 550 A European road bikes (children's)
501mm 19.75" 22 x 1 3/8, 22 x 1.00 British bikes (children's)
507mm 20" 24 x 1.5- x 2.125 Mountain bikes (children's), cruisers
520mm 20. 5" 24 x 1, 24 x 1 1/8, 24 x 1 3/4 Schwinn bikes
540mm 21.25" 24 x 1 1/8, 24 x 1 3/8 (E.5), British bikes (children's), wheelchairs, Japanese women's bikes
547mm 21.5" 24 x 1 1/4, 24 x 1 3/8 (S-5) British bikes (children's), Schwinn bikes (children's)
559mm 22" 26 x 1.00- x 2.125, fatbike tires up to 5 inches wide Mountain bikes, cruisers, fatbikes, Schwinn bikes
571mm 22. 5" 26 x 1, 26 x 1 3/4, 650 C Cannondale bikes, wheels for shorter cyclists, Schwinn bikes
583mm 22.95" 700 D GT bikes
584mm 23" 650B, 26 x 1 1/2, 27.5 French bikes, tandem and touring bikes, Raleigh & Schwinn mountain bikes
590mm 23.25" 26 x 1 3/8 (E.A.3), 650 A French & Italian bikes, English 3 speed bikes
597mm 23. 5" 26 x 1 1/4, 26 x 1 3/8 (S-6) British bikes, Schwinn bikes
599mm 23.6" 26 x 1.25, x 1.375 Old US bikes
622mm 24.5" 700 C, 28 x 1 5/8 x 1 1/2, 29 inch, 28 x 1 1/2 F.13 All bike types, Canadian bikes (F.13),
630mm 24.8" 27 x anything (not 27.5), 609mm Rare Danish bikes, old road bikes
635mm 25" 28 x 1 1/2, 700 B, 28 x 1 5/8 x 1 1/2 European roadsters, old Swedish bikes
686mm 27" 32 inch Unicycles, Custom bikes
787mm 31" 36 inch Unicycles, Custom bikes

Bike Wheel FAQs

How do you remove a bike wheel?

The process of removing a bike wheel varies based on whether you wish to remove the front or back wheel.

Remove the front wheel by releasing the brake, flipping the bike over, opening its quick-release or unscrewing the wheel nuts, and pulling it off the fork.

Remove the back wheel by shifting the chain down onto the smallest cog, opening the break, loosening your quick release or wheel nuts, then pull the rear derailleur back and remove the wheel at the same time.

Are bike wheels universal?

Bike wheels are not universal.

As bikes come in many different sizes, you’re limited with what size wheels you can use with a bike.

Usually, you’ll be able to make minor adjustments to the size of your wheels or tires, but wheels that are too big or small can easily damage your bicycle.

Can you put a road bike wheel on a mountain bike?

Putting road bike wheels on a mountain bike frame can be done and is a popular option for many commuters who cycle to work in the city but switch back to MTB wheels to hit the trails.

Just remember, as the designs of road and mountain bike wheels vary drastically, you’ll probably need to make adjustments elsewhere on your bike!

But yes, putting road bike wheels on a mountain bike is entirely possible!

Can you put a mountain bike wheel on a road bike?

For improved aerodynamics, the frame of a road bike is typically narrower and offers less wheel clearance than a mountain bike.

Due to the reduced wheel clearance road bikes typically offer, the wider tires and wheels that accompany a mountain bike are not usually compatible with road bike frames.

That being said, some slimmer 29-inch mountain bike wheels with narrow ties may fit on a road bike that takes 700c wheels.

However, cycling with wheels that are too big can end up causing damage to your bicycle.

If in doubt, don’t risk it.

Conclusion - How To Measure a Bike Wheel

I hope you found the content within this short article helpful. You should now understand exactly how to measure a bike wheel and how to measure a bike rim for a tire.

If I’ve left any of your questions unanswered, leave me a comment down below and I’ll get back to you straight away.

As always, make sure to use a good quality bike lock to secure your bike, when leaving it unattended.

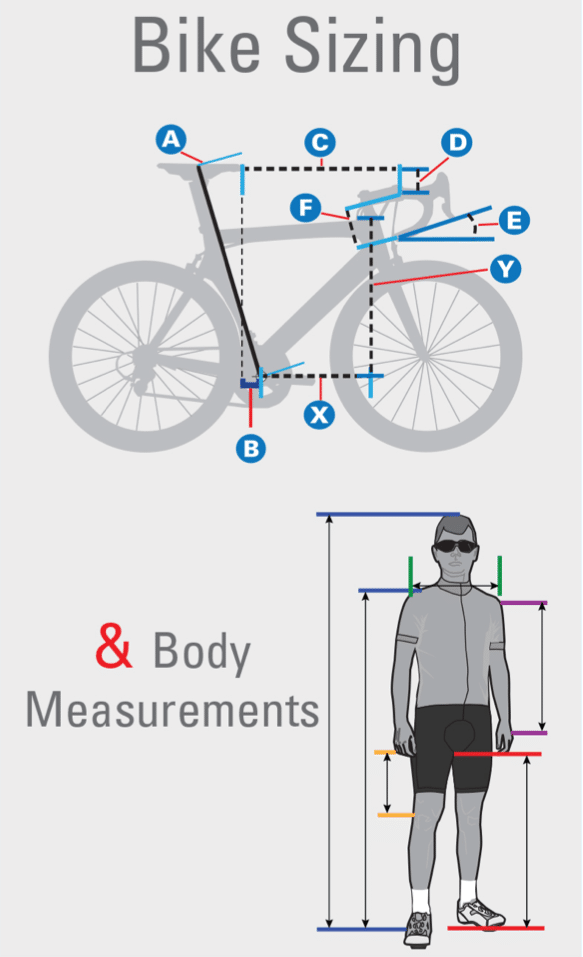

If you’ve been wondering which size bike frame fits you best, have a read of this short guide, which will help you select the most suitable bike size in a few quick steps.

Lock it or lose it.

Ciao for now.

Author of This Post:

A Guide To Bike Tire Size: How It’s Measured and Why It Matters

Your bicycle’s tires might not be something you think about very often, but they have crucial implications for every aspect of your ride. Better understanding how your mountain, gravel, and road bike tire size is measured can help you fine-tune your equipment, and learning how tire size relates to performance can make you faster when it counts. What are the basics of bike tire size?


How Do You Measure Bicycle Tire Size?

Bike tires are typically measured in two dimensions— diameter and width. The diameter measurement is an approximation of the tire’s total outside diameter including treads, and the width is a measurement of the approximate total width of the tire when mounted and inflated. For mountain bike tires these dimensions are expressed in inches, while a millimeter-based system called French sizing is used for road, gravel, and track. For example, a 29 x 2.25 mountain bike tire is about 29” in diameter and about 2.25” wide, while a 700c x 25 road tire is approximately 700mm in diameter and 25mm wide.

This makes it pretty straightforward to fit a modern tire to a modern rim—a 700c tire will almost definitely fit a 700c road rim (we’ll explain that “c” later), and a 29” tire will likely fit a 29” mountain bike rim. But some obsolete or unusual sizes can be misleadingly labeled, and any tire’s nominal measurements (especially width) are really just approximations. Rim width and tire pressure can significantly influence the size of a tire when mounted and inflated, and tires often measure a bit larger or smaller when installed than the printed dimension would suggest.

To reduce confusion, most tires are also labeled with a second system of measurements called ISO (formerly known as ETRTO). The ISO measurement displays the tire’s nominal width in millimeters, followed by the diameter of the tire’s bead (the surface that actually attaches to the rim) in millimeters (ex: 25 x 622 is a common road tire). This measurement can help resolve any ambiguity about whether a tire will fit a particular rim, but as with other systems, the ISO measurement of a tire’s width is an approximation and may be impacted by pressure and rim width.

Road Bike Tire Sizes

Nearly all modern road bikes use 700c wheels and tires. It used to be widely accepted that narrower tires were faster and 23mm was the standard width. But recent research has proven wider tires to be faster and more comfortable in most situations. As a result, 700c x 25mm and 700c x 28mm are now the most common road tire sizes; many riders prefer even wider widths of 30mm or 32mm. The limiting factor is usually the bike itself, with some frames unable to accommodate tires beyond a certain width. Most new road frames can at least fit up to 28mm tires but double-check your frame’s allowance before sizing up.

A few other less common wheel and tire sizes exist for road bikes. 650b (ISO 584) and the rarer 650c (ISO 571) are two examples, both sometimes used on bikes for smaller riders. The letter that follows the diameter measurement in French tire sizes originally delineated width, but it’s now mostly just useful to differentiate between similarly-named but incompatible sizes. For instance, a 650b tire will not fit on a 650c rim.

It’s also important to understand the different types of mutually-incompatible road tires. Clinchers are most common; these are the familiar tires that seat into a walled rim around an inner tube. Certain clincher rims can also be used with tubeless tires, which use a liquid sealant in place of an inner tube. Finally, tubular tires are permanently sewn closed around an internal tube and are glued into a specially-made rim. All 3 of these tire types use the same sizing standards and terminology but are generally not interchangeable.

Road Bike Tire Pressure

Tires are printed with a manufacturer’s recommended pressure range, and road riders used to think inflating their tires to the highest possible pressure was fastest. But with the move to wider tires has also come a trend towards lower pressure. The science of tire pressure is complicated, but wider tires require less pressure for the same volume of air than narrower tires, allowing for a more comfortable ride. Additionally, wider tires at lower pressures reduce bouncing and are actually faster on most surfaces than smaller, harder tires.

It’s tough to make a generalized recommendation for pressure—riding conditions, your weight, and the tire’s size all play a part. But generally, the larger the tire and the rougher the surface, the lower the optimal pressure. With each 3mm increase in tire width, you can usually reduce pressure by 1 Bar (~14 psi). Also, tubeless tires can generally be ridden at lower pressures than tubed tires of the same size. Some tire and rim manufacturers have calculators on their websites that make personalized recommendations for pressure; these are a great starting resource to make your ride faster and more efficient.

Adaptive Training

Get the right workout, every time with training that adapts to you.

Check Out TrainerRoad

Mountain Bike Tire Sizes

Mountain bike tires are measured in inches and are offered in 3 non-interchangeable diameters corresponding to common mountain bike wheel sizes. Most popular for high-end mountain bikes are 29” tires and wheels. Next come 27.5” setups, preferred by some riders who like smaller,  slightly more maneuverable wheels. And finally, 26” wheels and tires used to be the standard, but are now found mostly on entry-level and kids’ bikes.

Tires at each of these diameters are available in a wide variety of widths, which riders select for the specifics of their discipline and terrain. Cross-country racers usually choose comparatively narrow tires ranging from 1.9” to 2.25” wide. Trail, all-mountain, and enduro bikes are normally equipped with wider tires between 2.25” and 2.4”, and downhill tires are even wider at 2.4” to 2.6”. Finally, fat bike tires are mounted on purpose-built rims and push the boundaries even further, sometimes measuring as wide as 5”. The specifics of tire choice are carefully considered by mountain bikers, with racers often choosing different widths and tread patterns depending on the course and conditions.

Interestingly, most mountain bike wheel sizes are actually the same diameter as road wheels—29” wheels are equivalent to 700c, while 27.5” are the same as 650b. But you wouldn’t want to put tires intended for one on a wheel intended for the other, as the rim’s width is dramatically different for road and mountain bikes and would interfere with the tire’s performance.

Mountain Bike Tire Pressure

Tire pressure is a crucial concern in mountain biking. Small changes in pressure can dramatically impact performance and handling on the trail, and experienced mountain bikers regularly adjust pressure depending on terrain, conditions, riding style, and tire choice.

Because all of these variables are factors to consider, it’s nearly impossible to make a general recommendation for mountain bike tire pressure. Online calculators can help suggest a starting pressure based on equipment, weight, and conditions, but in the end, it’s ultimately a matter of personal preference and learning from experience. A good strategy is to treat the first few rides on a new setup or in new terrain as experiments. Carry a digital gauge, start with pressure on the higher side, and gradually let a few psi out/ add some pressure back in as you ride to experiment with what works and feels best. Check and record your pressure when you find the sweet spot and use this as your starting point for future rides.

There are a few general principles to keep in mind when finding the right pressure. Typically, the larger your tire, the lower the optimal pressure. Tires with thinner casings require higher pressure, as do heavier riders. Rocky terrain may also necessitate higher pressure to avoid flats, while lower pressures can be used in smooth, grassy, or muddy conditions. Finally, some riders like to use tire inserts, which provide more flat protection and allow a few psi reduction in pressure.

Tire Sizes for Other Cycling Disciplines

Gravel, cyclocross, and track cyclists also choose specific tire sizes and pressures to optimize performance.

Cyclocross Tire Sizes

Cyclocross bikes use 700c road wheels, so cyclocross tires are all designed for this standard diameter. In the past, most serious cyclocross racers used tubular tires, but tubeless tires have become increasingly popular over the last few seasons. Tires at CX events have traditionally been allowed up to a maximum width of 33mm, and UCI-governed events still impose this limit. Non-UCI races often allow larger tires, such as the 38mm maximum width allowed at USA Cycling masters, collegiate, and single speed national championships. Many local events impose no size restrictions at all—check your race’s rules to know for sure.

Gravel Tire Sizes

Gravel bikes used to be repurposed cyclocross bikes, but with dedicated gravel equipment introduced over the last few years tire options have greatly expanded. Most gravel bikes use 700c wheels, but 650b wheels are occasionally used for especially technical trail riding and bikepacking. Most new gravel bikes have clearance for tires ranging up to at least 42 or 45mm width, and some allow for even wider tires. Virtually all gravel riders use tubeless tires.

Gravel tires all balance speed and efficiency with offroad traction. Narrower tires with minimal treads are fastest on hardpack and paved surfaces but offer poor grip in loose corners. Wider tires with more aggressive tread patterns are more capable on loose terrain but roll much more slowly on smooth or paved roads. Gravel riders choose the width and tread pattern that offers the best balance for their local terrain, but may significantly adjust their tire choice and pressure for different conditions.

Track Tire Sizes

Like road bikes, track bikes use 700c wheels. But unlike on the road where slightly wider and softer tires are usually faster, on a smooth track harder and narrower tires have an advantage. For this reason track racers still prefer 21mm – 23mm wide tubular tires inflated to very high pressures—usually 150 psi or more on indoor tracks. Racers on rougher outdoor tracks don’t inflate their tires quite this high, but they still use much more pressure than they would on the road, with relatively narrow tires offering little in the way of puncture protection.

Common Bike Tire Sizes

Tire SizeUse/ DisciplineISO Designation
700c x 23mm – 32mmRoad/Track622
700c x 35mm – 50mmGravel and Mixed surface622
650b x 23mm – 25mmSmall road bikes584
650b x 45mm – 50mmGravel and Bikepacking584
26” x 2.1” – 2.3”Cross Country MTB559
26” x 2.3” – 2.5”Trail559
26” x 2.4” – 2.6”Enduro/ Downhill559
27. 5” x 2.1” – 2.3”Cross Country MTB/ Gravel584
27.5” x 2.3” – 2.5”Trail584
27.5” x 2.4” – 2.6”Enduro and Downhill584
29” x 2.1” – 2.3”Cross Country MTB622
29” x 2.3” – 2.5”Trail622
29” x 2.4” – 2.6”Enduro and Downhill622

bike tire pressurebike tire sizegravel bike tiresmountain bike tiresroad bike tires

4 ways to find the diameter of a bicycle wheel

4 ways to find the diameter of a bicycle wheel https://www.sportek.in.ua

Nikolaev bicycle shop "Sportek"

Published: 04/07/2017

Edited: 07/15/2018

From time to time the question arises: “What is the diameter of the bicycle wheels?”

Most often, it pops up if a tire has broken through or new tires are needed for the wheel of an old bicycle. And to the seller’s question “What wheel does your bike have?” Only one answer comes to mind: “round”.

First of all, you need to define the concept of wheel diameter .

For most ordinary people, this is the diameter of the wheel at the outer (outer) border of the tire.

But there is also the concept of rim fit size - this is the diameter of the rim or tire itself along the inner border.

Therefore, it would be a good idea to first understand the tire marking systems adopted in the world in order to speak the same language with the bike shop salesperson. You can read about this in the article "Bicycle tires: sizes, marking types and interchangeability" on our website.

For the sake of brevity, here is a figure explaining what is measured in each labeling system. Therefore, it is important to understand what we measure and what we want to find.

So, methods for determining the diameter of a bicycle wheel in inches and millimeters:

  1. The simplest and most reliable. An old tire mounted on a bicycle, , should have its diameter written in inches or millimeters.

    When choosing a new rubber, be guided by it. If there is no tire with exactly the same marking, look at the interchangeability table and select the right size in another marking.

    If a new tire is needed a little wider or narrower, check the tire and rim width chart.

    If in doubt, talk to the salesperson. He will tell you if it is right for you, both in terms of size, tread, riding style and what kind of roads you want to ride.

  2. See if the rim size is written on the rim itself . Sometimes manufacturers write the size in the ETRTO system in mm: bore diameter and width. Depending on this, the tire size is selected. What sizes in inches are suitable for your rim size in mm can be found in this table.
  3. If nothing is written on the rim and, most importantly, on the tire, then you will have to calculate its diameter “manually”.

    This can be done by measuring the radius and multiplying it by two.

    For younger students reading this article, I remind you that one diameter consists of two radii.

    Only you need to measure strictly from the center of the sleeve, and not from its edges. When measuring, the bike should stand vertically, and the tape measure, putting one end to the ground, keep the same strictly vertically, and not along the spokes of the wheel . Only such a measurement will give the correct value.

    The wheel diameter itself can be measured in the same way. The main thing is to accurately determine its upper cut. To do this, you can take a level and attach it to the top of the tire, and, holding it strictly horizontally, determine the desired size from the tape measure.

    After that, we convert it from mm to inches. To do this, divide it by 25.4 (1 inch = 25.4 mm) and calculate the size in inches. The result can be rounded up to standard inch wheel sizes.

    For example, if the measurement is 720 mm, divide by 25.4 to get 28.346 inches. So, most likely, the actual size of the wheel, taking into account the accuracy of the calculations, is 28”.

    In principle, the rim diameter can also be measured in the same way.


    Just pay attention to the difference between what is measured on the outside of the tape measure and the fit size of the rim.

  4. For those who are not looking for easy ways in life, you can calculate the wheel diameter using its circumference . How to calculate the circumference of a bicycle wheel is described on our website in a separate article (Second method).

    And knowing it, it is easy to calculate the diameter. To do this, the circumference in millimeters must be divided by the number "Pi" (3.14). Once you get the diameter in mm, divide it by 25.4 to get the diameter in inches. Similarly to the previous paragraph, the result will have to be rounded to the nearest whole number in inches. The more accurate all measurements, the more accurate the result and the less rounding.

Read more about bicycle wheels and rims:

  1. Bicycle rims
  2. How to measure the rim width of a bicycle wheel
  3. How to determine the wheel circumference
  4. Rim tape (flipper) - what is it and what is it for

Comments (2)

  1. x

// //

Bicycle tire | How to determine the size of a bicycle tire

The bicycle is presented as a vehicle that constantly needs to be serviced. And bicycle tires are the fastest wearing part on a bike. When buying a new bicycle tire, the question is what size to buy and what tread will best fit the bike.

When determining the size of a tire, everything is simple, on each tire there are numbers that indicate the size. You just need to rewrite these numbers, and come to the bike shop with this tire data and you will easily find the right size. This is easy to do in the Kiev bicycle shop KupiBike on Kharkiv Highway. The bicycle shop has a bicycle workshop, which has a bicycle mechanic and can easily help you with the choice.

But sometimes you want to choose a tire yourself on the Internet, order it yourself on the site, buy in an online store. This can also be done through the online store kupibike.com.ua. To independently choose a tire for a bicycle, you need to know what measurements of bicycle wheels are, how tire sizes are determined. And understand what number means what: width, radius, diameter, tread, weaving density of the court (this determines the softness and strength of the tire).

In Ukraine, for a long time, the designation of tires was indicated in the unit of measurement "ETRTO". The measurement "ETRTO" meant: European Tire and Rim Technical Organization (technical specification of European tires and wheels). This approach to the designation is applied both for bicycles, and this standard of measurement is also used in motorcycle and automotive products.

When characterizing the "ETRTO" 37-622 standard, the meaning of the numbers is as follows: the number 37 indicates the width of the tire when inflated (working condition in millimeters), the number 622 indicates the internal size (tire diameter in millimeters). This approach to size is more detailed, and is not always justified. Since bicycle rim sizes can vary slightly in shape, this naturally entails slight differences.

Another thing is the ease of measurement in the modern world, the definition of a bicycle tire is not in millimeters, but in inches. It's simple and easy. Inch tire sizing found popularity in America, after which the popularity of bicycle tire size in inches became widespread. So, with a bicycle tire size of 26X2.10, it indicates the generalized dimensions of the tire. Where the number 26 indicates the approximate outer diameter of the tire, and the number 2. 10 indicates the width of the tire. By "relative size" it means that all bicycle tires are made of rubber, and they have some stretch, which can be easily fitted to rims of different widths.

There is also another measuring scale for tire sizes, for example 28X1 5/8X1 3/8. And these numbers again indicate different sizes:

  • the number 28 indicates the approximate outer diameter of the bicycle tire;
  • 1 5/8" indicates tire height;
  • 1 3/8" indicates tire width.

And with a variety of measurements, you have to be smart and choose the right size. All this does not always fit, because if you take a wheel size of 26 inches for different styles of bike, you will find differences in numbers: a 559 mountain bike(MTB), 571 (triathlon), 590 (road bike). A bicycle tire labeled 635 or 622 is labeled as 28" in size. Or a 630mm bike tire corresponds to a 27.5" wheel size.

Well, when choosing a tire tread, it is worth starting from what conditions you are going to ride a bike.


Learn more
