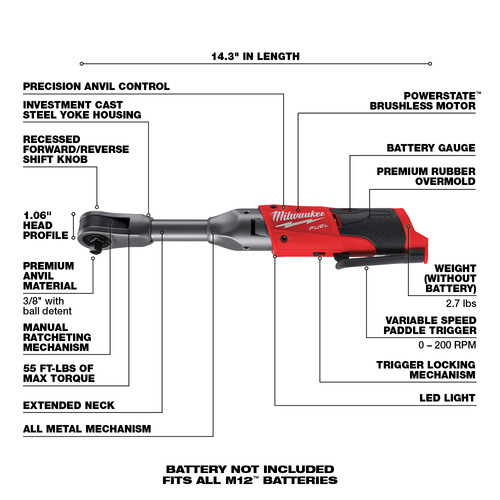

Our M12™ FUEL™ 3/8" Ratchet is the first cordless tool that provides both the torque and compact size to replace pneumatic ratchets in the industry.
This cordless ratchet has up to 55ft-lbs of max torque and 200rpm's making it the ideal fastening solution for automotive mechanics, repair technicians and maintenance workers who demand maximum performance and convenient portability. The M12™ battery powered ratchet has a low profile head and cordless design which allows you more access in tight spaces than competitive units. With the industry leading FUEL™ technology, a reinforced mechanism and investment cast steel yoke housing, this rechargeable ratchet can withstand daily jobsite wear and tear for years of reliable use. Milwaukee’s cordless ratchet has eliminated the constant maintenance of pneumatic ratchets and the nuisance of an air hose in the shop. The M12™ FUEL™ Ratchet delivers the maximum portability and productivity for the professional user.
Includes
(1)
M12™ FUEL™ 3/8" Ratchet Bare Tool (2557-20)
Up to 55ft-lbs Max Torque
Recessed head profile for more access in tight spaces
Greater durability with FUEL Brushless Motor
Pneumatic ratchet performance with up to 55ft-lbs max torque
Low profile head design allows users for more access in tight spaces
Delivers 200rpm for increased productivity
The industry leading FUEL™ technology, a reinforced mechanism and investment cast steel yoke housing housing provides greater durability for the professional user
Providing the first brushless Ratchet in the industry, the POWERSTATE™ brushless motor delivers up to 2x longer motor life
REDLINK PLUS™ intelligence prevents damage to the tool and battery due to overloading or overheating
REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery
Variable speed metal trigger provides ultimate control of the tool
The LED light illuminates the work area while the on-board fuel gauge displays remaining run time
Ergonomic and compact solution at 11. 8" and 2.8lbs with battery (battery not included)
Part of the M12 System, featuring over 80+ tools
Download Operator’s Manual Download Service Parts List
Product Specifications
Anvil Type
Ball Detent
Anvil Size
3/8"
Maximum Torque
55 ft-lbs
Fastening Torque
55 ft-lbs
Head Profile
1.1 in
Tool Warranty
5 Year Limited Warranty
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Length
10. 87 in
Weight
2.4 lbs
Height
2.74 in
Width
1.93 in
Voltage
12V
Brushless
Yes
Battery System
M12
Maximum RPM
200
RPM Range
0 - 200
M12 FUEL 3/8" High Speed Ratchet
2567-20
2567-22
Our M12 FUEL™ 3/8" High Speed Ratchet is part of the latest addition to our best-in-class lineup of ratchets.
This MILWAUKEE® cordless ratchet features the fastest speed while installing and removing fasteners. The most compact head size in its class gives you more access in tight spaces. A steel yoke housing and POWERSTATE™ Brushless Motor deliver the superior durability that you expect from Milwaukee. The M12 FUEL™ High Speed Ratchets are an ideal addition to any technician tool chest, allowing you to be more productive than any other battery-powered ratchet.
Includes
(1)
M12 FUEL™ 3/8" High Speed Ratchet (2567-20)
3/8" HIGH SPEED RATCHET
fastest
cordless
ratchet
most
compact
head size
greater
durability
Click a Number for Details
PORTABLE PRODUCTIVITYTRADE FOCUSEDSYSTEM WIDE
Delivers up to 450 RPM for best-in-class productivity
Up to 35 ft-lbs. of max torque
0.75" head profile allows for best-in-class access in tight spaces
Steel yoke housing for greater durability
Ratchet can be used manually without engaging the motor
LED light to illuminate work areas
On-board battery fuel gauge displays remaining run time
Extended paddle switch for multiple grip options
Durable proprietary rubber designed to withstand corrosive materials commonly found in maintenance environments
POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life
REDLINK PLUS™ Intelligence prevents damage to the tool and battery due to overloading or overheating
REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery
Part of the M12™ system, featuring 100+ tools
Download Operator’s Manual Download Service Parts List
Product Specifications
Wrench Type
High Speed
Anvil Type
Ball Detent
Anvil Size
3/8"
Maximum Torque
35 ft-lbs
Fastening Torque
35 ft-lbs
Head Profile
0. 75 in
Tool Warranty
5 Year Limited Warranty
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Length
10.3 in
Weight
1.7 lbs
Height
0.75 in
Width
1.54 in
Voltage
12V
Brushless
Yes
Battery System
M12
Maximum RPM
450
RPM Range
0 - 450
