In the winter season, when the cold hits us hard, we quickly realize if we are missing something essential to prolong the rides during this kind of weather. Frostbite at the extremities of our body undoubtedly takes away the pleasures related to our outdoor activities.
It is at this precise moment that we realize the importance of having heated grips to enhance our rides. It is an inexpensive addition that can be done with very few tools and some basic experience.

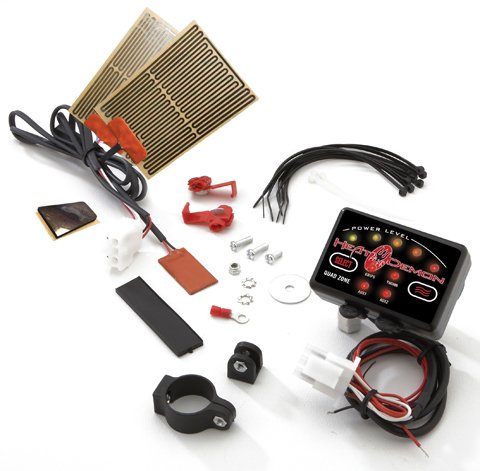

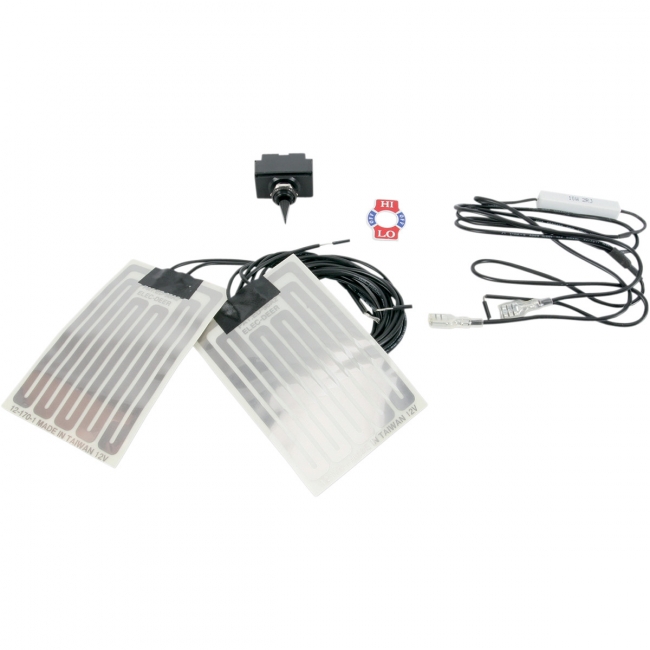

– The first, self-adhesive type, offers the advantage of keeping the original handle grip and is available at low cost. It requires that the original grips be removed with care if we wish to reuse them after the installation. On the other hand, as in the case of our Can-am Outlander, the use of glue during the factory installation of the grips makes recovering them almost impossible and requires the purchase of a new set. The heating elements of this option also have a limitation on the spread of heat caused by the thermal insulation property of the original rubber grips.
– The second option is more robust, but also more expensive because the heating element is integrated into the new handle grips. These complete sets allow us to proceed with the replacement of the original grips simply because they will no longer be necessary. This kit is the most efficient and has no interference to slow down the diffusion of heat. Therefore, they are more direct, efficient, and faster than the filament systems used in the past.
We decided to install the Kimpex Heated Grip and Thumb set. The main characteristics are as follows:
1- Neutralize the energy source. Your vehicle’s battery might seem harmless, but it is a potentially life-threatening storehouse of electrons looking for a way out at the speed of light.
Therefore, always remove the terminal from the ground (negative) terminal first. This greatly reduces the risk of a battery short circuit. Second, remove the positive terminal.
2- Start to disassemble your existing handles:
Once the end caps are removed, you need to remove the existing rubber grip from the handlebar metal tube. These are usually glued and won’t come off easily. Slip a flathead screwdriver between the rubber and the bar and squeeze it left and right to break up the glue joint. You can also cut the handles using a sharp blade. Make sure to completely remove any adhesive deposits using sandpaper or such material.
3- Insert the new handles on the end of the handlebar:
Take care to insert the new Kimpex handles correctly. If they are difficult to insert, this is best, as they will firmly stay in place. On the other hand, the use of a lubricant is an option when the insertion is too laborious. The use of a rubber-tipped mallet can also be used to complete the installation.
4- Install the heating surface on the throttle thumb:
Peel off the self-adhesive backing behind the heating surface and carefully place it on the thumb of the throttle. Insert the shrink band and use a heat gun for a perfect fit.
5- Installation of the switch:
Two installation methods are possible. First, it is possible to install it on the rounded surface of the handlebar using a clamping ring. For our part, we have opted for a self-adhesive film in a place that we have pre-selected.
6- Find energy for the wiring harness:
Now you need to find 12V power for your new heated grips. You can wire the grips directly to the battery, but it’s a bad idea because if you accidentally leave the heater on, you’ll kill your battery in a flash. What you want is to connect it to a switched power source which only turns on when the ATV is running. If your ATV is equipped with an accessory power source, this is essentially what we are looking for.
Our Can-am Outlander is equipped with a 12V accessory socket that we will use. We have therefore taken care to connect all the wiring near this source, taking great care to attach everything with zip ties to avoid friction and wear that could affect its proper operation. This Kimpex set also has the advantage of having quick connect fittings.
We connected the 2 wires to get our positive source (+) as well as our grounding (-). We have taken care to insulate everything to protect our connections.
7- Finally, reconnect first the positive terminal to the battery followed by the negative.
8- Test the operation: press the switch installed on the handlebars for a few seconds to activate it and to check the 5 levels of heat intensity. There you are! An easy addition that you will be proud of and that was installed very quickly.
In conclusion, the DIY addition of the heated grips and thumbs is a wise and beneficial decision. The result will allow you to make long rides in the cold season.
The investment will quickly pay off thanks to the convenience that the heated grips and thumb will provide.
| Assuming your grips were installed per our installation instructions: Tutorial on Test Meters-Click Here Resistor: The resistor's only function is when you select the "Lo" switch position: The voltage goes through the resistor before it reaches two heated grips. It creates a voltage drop of one third of the available voltage so that the heated grips produce less heat. When on "Lo" the resistor will get hot, so it must be mounted on a metal heat sink in moving air flow. Do not mount on plastic, or you will have melted damaged plastic. Use nylon wire ties (nylon can take the heat), safety wires, or other means to secure it. Do not mount it in an enclosed area where heat can build up. In the cases where the instructions indicate the grips must be wired in "series", (such as model 101,102, 103, 104,105, 106, 201, 202, 203, 204, 205, 301, 302, 401, 406) you must be careful not to wire the grips incorrectly ("parallel") or the resistor might build up so much heat that it melts (or causes brown discoloration) of the resistor case. With all other models (such as those that are designed to be wired in "parallel", i.e. 475-875, 475-876, 475-879, 525-875, 525-876, 525-879, 575-875, 575-876, 575-879, 475-100, 475-106, 475-109, 525-100, 525-106, 525-109, 475-ATV, 525-ATV and 575-ATV) a melted or discolored-brown resistor can be caused by a faulty voltage regulator, mounting it without a metal heat sink, mounting it with no air flow, or mounting it in an enclosed area where excess heat is trapped. Switch: The 3-position switch has a pivot mechanism inside the housing, which you cannot see. When the switch is moved to "Hi" or to "Lo" it connects the center terminal to the diagonally opposite terminal (diagonally opposite to the toggle pole). Epoxy: You must use a slow-cure type 2-part epoxy because the grips get hot, and excessive heat can break down the lower temperature quick-epoxy. J.B. Weld epoxy is fine, or Devcon Plastic Steel Epoxy. Both are often found at auto parts stores, or at your local Wal-Mart store. At Wal-Mart it is in the aisle where they keep the automobile oil additives. If other brands are available to you, avoid any that discuss 5 minute cure on the packaging. Look for 250 degrees F. service duty. Voltage Source Testing:................. You can troubleshoot Hot Grips® most easily at first with an independent voltage source, i.e. one independent from your vehicle's electrical system. Remove center wire ( or cut it a few inches away) from the Hot Grip® 3-position switch, and use an independent voltage source. IMPORTANT EXCEPTIONS: Honda Gold Wing, Honda Magna, Honda Valkyrie, 475-875, 475-876, 475-879, 525-875, 525-876, 525-879, 575-875, 575-876, 575-879, 475-100, 475-106, 475-109, 525-100, 525-106, 525-109, 475-ATV, 525-ATV and 575-ATV models are to be wired in "Parallel" like in their own respective instructions. With grips that are wired in series you can either test one grip at a time or both together. But disconnect the center terminal of your switch from your vehicle's power source, and hook up your independent voltage source at that point. Turn the Hot Grips® switch to "Hi" and the grips should heat up in 3-5 minutes. If not, then you need to check resistance of each grip, and the switch. Bypassing the switch is easy, instead of wiring your independent voltage source to the center terminal, just wire it to wire going from the switch to the first Hot Grip®. Basic Resistance Test: Some Hot Grips® such as models Ergo 1, Ergo 2, 101, 102, 103, 104, 105, 106, 201, 202, 203, 204, 205, 301, 302, 306, 401, and 406 have an electrical resistance of 2.4 ohms each, though YAMAHA original equipment heated grips from 1990 through 2001 are 3.0 ohms, and most street bike models (Honda Gold Wing, Honda Magna, Honda Valkyrie, 475-875, 475-876, 475-879, 525-875, 525-876, 525-879, 575-875, 575-876, 575-879, 475-100, 475-106, 475-109, 525-100, 525-106, 525-109, 475-ATV, 525-ATV and 575-ATV models) are in a range of 8 to 10 ohms. To test the grip's resistance, use a volt-ohm meter and set the meter to Rx1 or lowest most sensitive resistance range. Zero adjust your meter if it has that feature, by touching the two test leads together and pressing your meter's reset button or adjusting the appropriate control.
If the meter reading shows an open circuit, or infinity, then possibly a break has occurred where the lead wires enter the grip. This might happen if more than 20 pounds of force had been placed on the lead wires, or if you failed to use epoxy on the grips, and they rotated while riding the vehicle. If this has happened, you have two options: replace the grip, or repair it by cutting open the area where the lead wires enter the grip, and re-soldering where it broke. If the meter reading shows a closed circuit (zero ohms) then instead of breaking the connection from too much force, the two lead wires have been pulled together and are touching, electrically bypassing the grip's internal 63" of resistance wire. Your options are to replace the grip or cut open the area and separate the two lead wires or brass crimps you find inside. Some installation problems can occur when the installer selects a power source that is inadequate to power the Hot Grips®, but may be powerful enough to run a test light. Just because a wire lights up a test light, that doesn't mean it has the power to run a 30 watt accessory such as Hot Grips®, or any 30 watt load, such as a headlight. To test against this potential problem, take the same wire you are using to feed the Hot Grips® switch, and wire it to a 30 watt headlight, or to two 15 watt brake light bulbs wired in "parallel". (An exception is the Honda Gold Wing model Hot Grips®, which are 18 watts per grip, and 36 total for the pair.) If they only light up dimly, then clearly the wire chosen is not powerful enough to do the job. Your installer has chosen a wire( voltage source) that already is fully using it's available power capacity running other electrical loads. Or it could be that with your magneto electrical system, it doesn't generate a full 12 volts at a low rpm engine speed. Good Soldered Connections are important and we've found that the 3M squeeze on connections are not reliable over time for two reasons. Often there is a mismatch in the wire gauge of the Hot Grips® lead wire (20 AWG) and the 3M connector on hand. And, over time, we've observed these connectors result in oxidation of the connection, the exposed copper strands of the wire turn green with corrosion. The same problems can occur with the push together 1/4" spade connectors. Ground Connection is critical, you cannot just check with a test light bulb for continuity because your eye cannot perceive minor voltage drops. Check with a volt-ohm-meter and make sure your ground connection is zero ohms. If you have 1 ohm or more then that small resistance is contributing to poor heat output on the grips. Make sure the paint is scratched off under the ground connection. Wired Switch Backwards? Possibly your "Hi" and "Lo" heat positions are reversed. When you place the switch to the "Hi" position, it is electrically connecting the center terminal to the diagonally opposite terminal from the toggle position. This is due to a hidden pivoting mechanism inside the switch. If you installed the wires wrong, then "Hi" would be "Lo" and "Lo" would be "Hi". Wired Grips Wrong? If the instructions described wiring the grips in "series" then that means voltage goes into one grip then out to the second grip before reaching electrical ground. "Parallel" wiring would mean each grip has it's own ground wire. Most Hot Grips® are wired in "series", so each grip only effectively gets 6 volts on a 12 volt system. (Note Honda Gold Wing, Honda Magna, Honda Valkyrie, 475-875, 475-876, 475-879, 525-875, 525-876, 525-879, 575-875, 575-876, 575-879, 475-100, 475-106, 475-109, 525-100, 525-106, 525-109, 475-ATV, 525-ATV and 575-ATV models are wired in "parallel" which means each grip will get 12 volts and have it's own ground. If you have a 12 volt battery in the system, you still need time to build up heat in the grips, but at least the full 12 volts is available at idle or low engine speeds. Yamaha Special Note: On some Yamaha snowmobiles the original equipment grips are fed 18 volts in series so that each grip receive 9 volts. This results in 27 watts per grip with our 3 ohm grip, which explains why Yamaha grips are the hottest grips on the market. Replacement Resistors or Switches: Ordering just a resistor or a switch from the website is costly to you on the shipping. However RADIO SHACK stores have an acceptable substitute: Resistors: Radio Shack #271-131 cost two for $2.99 and you should use both of them wired in "series" to give you 2 ohms. Don't let them dangle by their lead wires, support them on a metal surface (not plastic) with nylon wire ties just like the original Hot Grip® resistor. Each Radio Shack resistor is rated at 10 watts/ 1. We hope this has been helpful in troubleshooting. It is very difficult to abuse the Hot Grips® electrically, if they are wired correctly. Of course if you take a kit designed to be in 'series' wiring and instead you wire them in 'parallel', they will get too hot - 400% of intended watts, and melt the grips fairly quickly. The internal heating wires are very heavy gauge, not sensitive to voltage spikes like a light bulb, and will not break or "blow" like a fuse (or like printed resistance circuits used for handlebar heaters). In fact the resistance wires alone can tolerate over 1500 degree temperature, so the rubber on the grips will melt long before the heating wire will fail. Summary: Most common fault is wiring, either an installation error, oxidation (corrosion) in connectors (we warned you in our instructions to solder them), or damage to the wires where they enter the grips. If you used the quick-and-dirty hookup to power with blue 3M Scotch-Lok connectors you are going to have a problem down the road. They are a very bad solution especially because the blue ones don't match our wire gauge, they are designed for larger gauge wires. Secondly they invite corrosion at the wire-crimp site. Replacement Grips: for snowmobiles and all-terrain vehicles can be purchased on the internet website at www.hotgrips.com or call us for current price. We accept MasterCard, Visa, Discover Card, and PayPal. Specify which grip you have by model or detailed description: Models include: SNOE, HW, (in Black, Red, Blue, Purple, Green) SND-ATV in Black or Red, Street Bike original 401 small diameter 7/8" handlebars Left or Right Grip, Harley Davidson 4. Sticky, gummy grips that wear quickly and leave black residue on your gloves and hands. By riding with leather gloves that have been treated with a leather preservative, the grips are constantly getting that preservative pressed and rubbed into them under high temperature, changing the chemical makeup of the grip. The MINK-OIL treatment of your leather glove palms can ruin the grips. One fellow from California admitted using a hair dryer to melt the mink oil paste into his leather gloves to treat them. That would be MANY times worse than getting an external petroleum based spray on the grips (which we discuss below), because whenever you ride with those treated glove palms the grips are being exposed to hour upon hour of a modifier-substance that is being pressed and twisted with elevated temperature into the grip outer surface. The "rheology of the grip surface" has changed permanently and NO treatment can reverse the process. When you attempt to solve the problem by exposing the grips to yet more petroleum based treatments, you just make it worse. You might sprinkle baby talc powder on them (and your glove palms) to reduce the tackiness but I don't know how long that would be effective before additional application is needed. Replacement of the grips will not solve the problem, since it is exposure to the MINK-OIL in the leather glove palms that is the cause. The only way to prevent it would be to cover the grips when new with anything that is either a natural rubber, a PVC (vinyl), or some other polymer that is not attacked by leather preservative. If you pre-wrap the new grips in tennis racket rubber wrap, and the tape wears out, that is cheap to replace. Many grip manufacturers use the same Shell Kraton-G that we mold with, but some are molded in PVC (poly-vinyl-chloride, aka "vinyl"). The advantage to a manufacturer is that PVC is very inexpensive as a raw material, about 40% of the cost per pound as what we mold with. The problem with PVC is that it gets slippery when wet, unlike the material we use, which stays tacky when wet. There is a company called California Sport Touring that sells "Grip Puppies": http://www.casporttouring.com/cst/motorcycles/GRIPPUP.html I have read online of riders using the "Grip Puppies" over our product to 1) absorb vibration and 2) make the grip a fatter diameter which they prefer. The drawback reported is that they are an insulator and reduce the ultimate heat you'll feel, AND it'll take much longer for the heat to get thru the "Grip Puppies". Another bad idea is to expose the grips to solvent such as gasoline, a gasoline product, spray brake cleaner, electrical contact cleaner, or general purpose bike cleaner such as Greased Lightning, Simple Green, even the ever popular S100, etc. Unrelated to our grips but an important example of consequences of not rinsing off Simple Green cleaner off bare aluminum is the resulting aluminum corrosion: Simple Green reports: Simple Green products have been successfully and safely used on aircraft, automotive, industrial and consumer aluminum items for over 20 years. Look at the MSDS (Material Safety Data Sheets) of the cleaners and you will see the strong chemical contents of them. Battery Drain: Here's a good link to Jim Davis' site in Nagono, Japan on a problem of your battery going dead from current drain. I'll let him take over on it, he knows his stuff: Eastern Beaver Company |
