Making your ATV run quieter is actually not all that hard to do. It all starts with the exhaust noise. There’s a few ways you can lower the exhaust noise of your quad that are pretty easy to do yourself.
Suppressing the sound your ATV makes is pretty popular among hunters, bird watchers, or anyone that wants to disturb the wildlife where they ride as little as possible. Others want a quieter machine to avoid bothering the neighbors or to comply with sound pollution regulations in their area. Whatever the case may be you have a few options available to quiet down the noise your ATV makes.
The most effective way to reduce the sound an ATV makes is to install an aftermarket ATV exhaust silencer on your machine. Other options include packing the muffler with sound dampening materials, installing a spark arrestor, or repairing any leaks in the exhaust or muffler system.
This is the preferred method, and you’ll see why later on when I talk about the other options out there. Getting and installing an aftermarket ATV exhaust silencer is so simple and straight forward, and suppresses the exhaust noise better than anything else you could do.
There are plenty of ATV exhaust silencer kits out there to look through. I suggest you start with this Silent Rider ATV Silencer on Amazon. It’s a bit more pricey than some of the other options out there, but well worth it. The Silent Rider makes many versions of this ATV silencer so you should be able to find one that fits your quad. They make it a custom fit for your machine and even offer a one year warranty.
If you’re a bit strapped for cash you could try this Universal Fit Kolpin Stealth Exhaust 2.0 with Heat Shield. Sure it’s about half the price of the Silent Rider, but it’s also about half the star ratings too.
Don’t be put off by that though, most of the complaints are about fitting issues. If you’ll be able to weld this on, you shouldn’t have a problem. The makers of this ATV exhaust silencer, Kolpin, claim there will be no loss in performance with this silencer.
That’s a plus in my book.
If you’re trying to spend as little money as possible, you’re looking at the do it yourself approach. You could silence the existing exhaust by packing the muffler with sound dampening materials.
I don’t recommend doing this because you will be restricting airflow out of your engine and could cause overheating or other issues. Still, It’s a viable option if you need to quite the engine quickly and cheaply.
I would advise against using steel wool or anything of that sort because it will heat up pretty quickly in your muffler. Eventually blowing red hot pieces of steel all over the trail. Instead try using heat resistant insulation of some kind.
Sure, you could go into your attic and grab some fiberglass insulation to stuff in your muffler. That should work fine, but the best thing to use would be this Standard Muffler Packing Material , or something similar.
This is low down on the list because it’s not made to reduce the sound of your ATV exhaust.
It’s intended to prevent hot debris from being blown out of your exhaust and catching the woods on fire. But, it does reduce the sound your engine makes a little bit.
If you’re going to use the ‘pack the muffler’ method, I highly recommend you make sure your ATV has a spark arrestor because the chances of high heat material getting shot out your exhaust is a lot higher.
It’s pretty easy to install a spark arrestor, and you can find them for around 20 bucks online. Here’s an HMF Spark Arrestor For Exhaust from Amazon to get your search started. As for the install, you simply take the end piece off your exhaust tip, put this on the end of the exhaust and reinstall the end piece.
This may seem like a no brainer but a lot of people don’t realize their exhaust system may have a crack or rusted out areas. If you’re trying to quiet your ATV because you feel the exhaust is overly loud, it may be as simple as fixing the existing exhaust system on the machine.
Check over the exhaust and muffler systems for any small cracks or rusted out areas. Get a flashlight and take care to get a good look, even a small hairline fracture could be causing extra noise.
This is another simple maintenance tip I’ve noticed not many people know about. If you already have an exhaust silencer installed on your quad, you may just need to repack the insulation.
Some ATVs come stock with a silencer on the exhaust from the factory that you will need to repack. You can use the same silencer packing material I recommended up above in the ‘pack the muffler’ section.
You should only need to do this every few years depending on how much you ride. It’s a simple process. Start by taking the exhaust silencer off the exhaust and disassemble until you have access to the material in the silencer.
Pull out all the old silencer packing material and clean the core. It doesn’t hurt to blow out the silencer with compressed air if you can.
Install new packing material and reassembly the silencer. Easy as that, you’re done.
There you have it, there’s a few different ways to make your ATV exhaust quieter. I would start with inspecting your exhaust and muffler for damage, rust, and cracks to make sure you don’t have a problem before going through the process of suppressing your ATV exhaust.
If everything looks good, I would repack the stock silencer if you have one, or go ahead and buy an aftermarket silencer for best results. Install a spark arrestor for a little help with the noise if you don’t already have one.
In a pinch you could always pack the muffler, but remember, that could lower your airflow which will reduce your engine power or cause problems.
Sharing is caring!
There are many reasons why ATV owners want to quiet the exhaust noise on their machines.
In this post, we’ll take a look at different ways you can achieve this.
We’ll also have a look at some pros and cons of quietening the exhaust, and how well it really works. This will allow you to consider whether the benefits outranks the downsides and to decide whether it’s worth it for you or not.
Page Contents

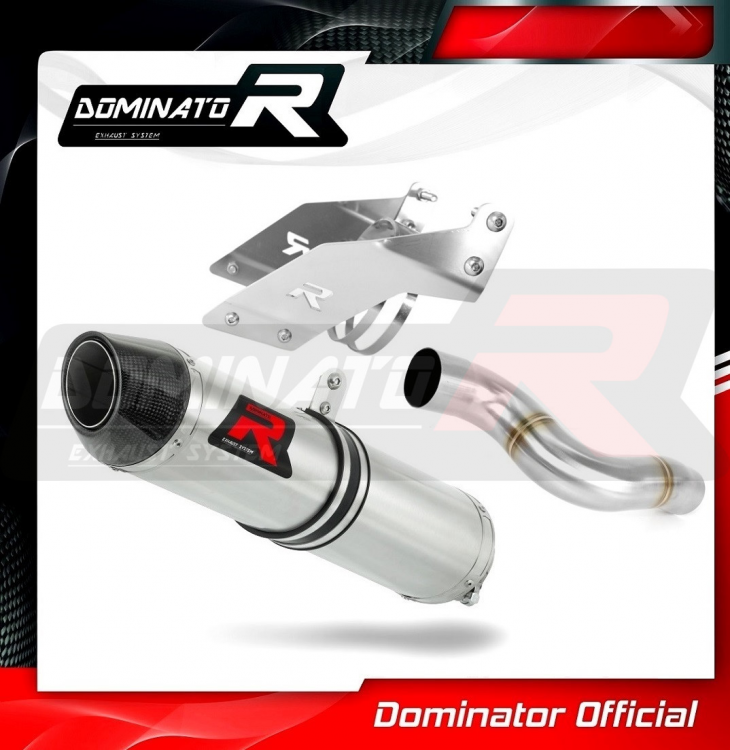

Adding an aftermarket silencer muffler is a simple and effective way to get a noticeable quieter exhaust sound.
The system consists of an additional muffler and mounts that install to your OEM system as an auxiliary exhaust. Installation time is less than 10 minutes (as long as you don’t have to fabricate mounting brackets), which means you can remove it or install it according to your needs if you want.
There are quite a few different brands out there that offer their take on this concept. They all work by the same principle; the exhaust has to pass through one extra muffler, stuffed with baffles and silencing materials.
One brand or model silencer may work well on some ATVs, but not so good on others. Make sure you read a review specifically for your bike before you decide on what type to get.
For example, some riders think the Kolpin Stealth is the best silencer available, while others report that it did not perform very well on their Polaris Sportsman XP 1000.
You’ll find model-specific mufflers that will bolt straight on to most major ATV brands. Or, if you don’t find one that’s made for your bike, you can opt for a universal model.
The universal models work just as well, but installation may require some modifications, and the final result may not look as stock as a custom muffler will.
What results you should expect varies a bit between the different brands available. But as a general rule, you should see an improvement of about 6-8db at idle. In some cases, you may see a reduction of as much as 10-12 dB when revving the engine at 2000RPM.
While 6-12db may not seem as much, it’s worth noting that an increase of 3 dB equals double the sound intensity.
This means that a system putting out 99dB is 4 times more intense than a system that’s only emitting 93dB.
While the main purpose of spark arrestors is preventing forest fires, they also come with the added benefit of slightly reducing the sound output of your ATVs exhaust system.
The sound must pass through the steel mesh or baffles, breaking up the sound waves on their way out of the muffler.
However, do not expect drastic results from this simple tweak. You may expect results in the range of about 1-3dB reduction. On some ATVs, the difference with and without the arrestor is quite easy to notice just by listening.
Many stock exhaust systems already have a spark arrestor installed from when it was new. And if your bike is fitted with an aftermarket performance exhaust system or muffler, the spark arrestor may or may not have been included in the kit.
In some cases, you have to purchase it separately. It’s usually optional whether you want to install it or not.
Check out this post to learn more about spark arrestors, and how to find out if your exhaust system already has one installed or not.
The spark arrestor requires cleaning from time to time, so it has to be easily accessible. Installing a spark arrestor is therefore usually quite straight forward.
A simple spark arrestor made out of fine steel mesh.You may need to drill a hole or remove a couple of bolts, but that is usually about all it takes to install one. Just follow manufacturer’s directions or ask the dealer if you get stuck.
Inside some mufflers, you will find a fiberglass sound dampening material that helps to quiet the exhaust sound. I’ve seen this more often on aftermarket systems, but some stock system uses this technology as well.
Over time, this fiberglass material gets dirty, burns out and looses its dampening effect. So if your system is starting to have some age to it, you should consider removing the old stuffing and replace it with new.
All you need is some high temp silicone and some silencer repacking material that fits your muffler. Most manufacturers sell these as spare parts and it’ s recommend you stick with the OEM stuff.
The repacking process varies, but most manufacturers will provide proper instructions for four your specific silencer.
Some riders use steel wool or steel dish scrubs as dampening material inside their mufflers. This may result in some initial improvement, but it’s not an option that stands well over time.
It also comes with a significant fire hazard, which makes it an alternative I do not recommend.
What may happen is that the wool heats up until it gets glowing red hot. Then it gets tossed out of the exhaust as glowing red particles that can set dry leaves and such on fire.
Over time, oil and fuel may soak the steel wool. The glowing red particles may then cause the muffler to ignite from the inside.
When the steel wool burns out, it quickly loses it’s dampening effect as well. Not to mention potential rust issues.
Fiberglass handles the heat much better and will not glow from the exhaust heat. It is usually cheaper than steel wool as well.
If you are on a budget, fiberglass building insulation is a better alternative for stuffing material than steel wool because you won’t have the risk of incineration.
But the best option is always to get the OEM fiberglass mats. They are easier to install, won’t burn out as fast, and give the best dampening results.
If you want to keep your costs down and don’t care too much about the aesthetics of your system, consider building a DIY extra muffler made from a car muffler. It installs behind the stock system, just like the muffler silencers that are specifically made for ATVs.
Car mufflers are cheap and usually have a good dampening effect. Your best option would be to buy a small size model that fits your bike.
You will also need a couple of 90-degree bends of the exhaust pipe in the correct diameter, and some flat steel to make a mounting bracket.
You will also need a welder or a lot of clamps to connect the different parts.
You should be able to make a system like this for half or two-thirds of the cost of a bolt-on system if you can live with the looks.
Be aware that back pressure and power loss may become issues if you choose a muffler that is too effective.
Even the smallest leak or crack can make your exhaust noticeably louder. It is common to experience shrill whistling noises when you apply throttle. Under deceleration, you may even get a backfire due to a change in backpressure.
The leak may be hard to spot, but start at the front and work your way backward.
Check all welds or joints between the different parts of the system extra carefully. The first few inches of pipe from the engine are usually most prone to leaks and cracks because of the big fluctuations in temperature.
Look for black zoot as it will be a sure indicator of a leak. Weld the leak or replace broken parts with new, and you should expect stock performance again.
Like any other part on the ATV, the muffler wears out over time. And when it does, it also starts underperforming.
The most common wear on mufflers is that the sound dampening internals either rust away, burn out or come loose. When this happens, it will no longer dampen the exhaust sound as it’s supposed to. You may also get rattling sounds like a nice bonus.
If you wait long enough, you may find your muffler completely gutted out, with barely any sound dampening effect at all.
Not only will this give you a loud exhaust, but you may also run into issues caused by reduced backpressure.
The easiest way to fix a worn-out muffler is obviously just to get an OEM muffler that bolts straight on to the bike.
But if you want to save a few bucks and potentially get a quieter system there are a couple of DIY alternatives you may look into.
The first one is getting an aftermarket muffler silencer, intended to be installed at the end of your stock system.
Often you’ll find that these mufflers give a more silent system, even if you use it to replace the stock muffler. This option may, however, require some slight modification to make it fit.
Another cool option for silencing your bike on the cheap is replacing the stock muffler with a stock muffler from any Japanese racing motorcycle.
Owners of these bikes often replace their stock mufflers with aftermarket performance exhausts. You should be able to get your hands on the stock one at a very reasonable price or for free.
Modify it to fit your exhaust header pipe and mounts, and you should in most cases get a decent improvement in sound output.
Just remember that any time you create a DIY solution like this you are completely on your own if you run into any issues caused by a change in backpressure. We’ll look more into the potential risks involved further down this post.

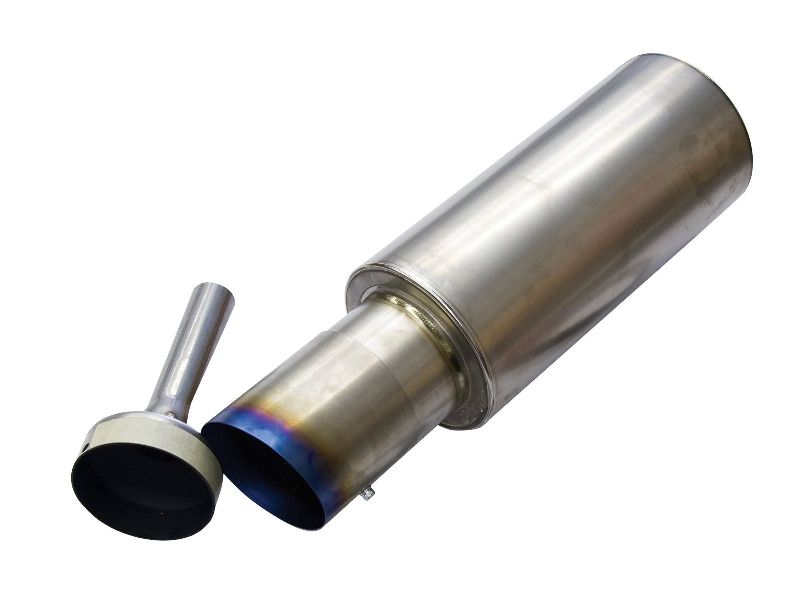

Some manufacturers of aftermarket exhaust systems offer quiet core inserts that can be fitted to make the exhaust quieter.
The design if these inserts vary, but usually consists of a baffled or perforated pipe that fits inside the muffler. These core inserts often come in combination with a spark arrestor and/or a downwards facing pipe for directing the sound down to the ground.
Not all manufacturers offer these types of inserts, commonly named dB-killers. But it’s definitely worth checking out if you already own an aftermarket muffler, or if you’re in the market for getting one.
It may be hard to visualize how the system will sound when you are in the process of purchasing the new exhaust.
So if your brand new system ends up sounding louder than you were expecting, it’s good to have the option of installing a simple insert to make it a few dB quieter.
The dB killer inserts usually install in just a matter of minutes.
If there are no bolt-on quiet core kits available for your muffler, consider making one on your own. You should be able to achieve just as good or even better results as with the store-bought kits.
What you should do is to get inexpensive universal baffle inserts and fit it to your existing exhaust system. These inserts come in a variety of shapes and sizes. Find one that fits the diameter of your exhaust pipe.
Depending on your bike’s piping design, you can make it fit by disconnecting a joint and tacking it or bolting it in place inside the pipe.
Alternatively, you can make an extension pipe at the rear of your muffler, that contains the baffle insert.
This is probably the best (cheapest and least ugly) budget solution for those looking to make their stock exhaust a bit more silent.
This modification should work fine on most bikes for low RPM trail riding or utility work. For racing applications, it is likely not the best option.
Just make sure you restrict airflow too much so that you build up back pressure that can damage your engine.
More on that further down.
This tip will not actually reduce the actual sound levels your system puts out.
But making sure the sound is being directed downward to the ground will have a big impact on how far the sound will reach after it has left your muffler.
With a straight muffler, the sound gets shot directly backward and can be heard from far away.
But if the sound gets directed straight down to the ground instead, the rough surface will act as an acoustic dampener. The sound waves ” break up”, effectively leaving them unable to reach as far.
To achieve this you simply install a sound direction pipe at the end of the muffler. A so-called down snout tip. This part is simply a small piece of bent pipe that changes the direction of exhaust flow downwards.
Most manufacturers offer this part as an option, or it may even be included when you buy the exhaust system.
It should bolt-on in just minutes. And if you look around you will also find universal parts that may fit your exhaust.
As a final alternative, you can just buy a piece of 90degree exhaust pipe and weld it to the rear of your muffler.
If you need to get your exhaust quiet in a hurry, this may be the method for you. Get about 6 feet of flexible metal conduit (made for electrical wires) and connect it to your muffler using a simple clamp. Coil it up and use some steel wire to keep it in place.
This will eliminate almost all exhaust sound, but be aware that you may be restricting exhaust flow too much.
Use this only when in a pinch and only for low RPM riding.
This last tip is completely free.
Any time you find yourself in a place with a risk of disturbing others, simply drive gently until you are alone again. By backing off the throttle slightly you effectively reduce the exhaust sound to more manageable levels.
Now that you have a wide variety of methods to choose from, it’s time to decide which suits you the best.
Besides aspects such as cost, looks and the level of mechanical work involved in the installation you may find yourself asking questions such as;
The sound is widely recognized as the number one challenge by those who work hard to keep our riding trails open. A loud exhaust is also one of the major obstacles when looking to open up new trails to motorized recreation riding.
In later years, the problem has become even worse with large four-stroke engines entering the scene. These bikes tend to be a lot louder than the two strokes, especially when installing performance exhaust systems.
On one hand, you have ATV riders that just want to enjoy their trail rides in nature.
They feel that others need to accept the occasional ATV passing by.
On the other hand, you have those that feel loud engine sound is completely ruining their experience of being out enjoying the silence of nature.
In-between you find a great number of ATV enthusiasts that are able to understand both points of view. These riders are frustrated with those that install screaming aftermarket exhausts on their big four-stroke machines just to achieve an almost unnoticeable power gain.
It’s not hard to understand why there is a conflict of interest here. And it really doesn’t matter which side you are on.
The reality is, that riders running loud aftermarket exhausts on open trails are contributing to heat up this conflict up to the boiling point. As a result, we see an increasing number of trails and riding areas being permanently closed.
Being allowed to ride on public ground is a privilege that is directly influenced by the opinion of the majority. On the private land, all it takes is to annoy the landowner, and the trail is closed.
It all comes down to upsetting fewer people. Over time, this strategy will increase the number of ATV trails and riding grounds available for us to enjoy.
Another great benefit of having a silent exhaust on your trail machine is being able to communicate with your passenger without having to scram your lungs out. After longer rides, you get home feeling much less exhausted as well.
It’s not only trails and open riding areas that are in danger of being permanently closed or heavily restricted because of sound issues. This is true for many race tracks as well.
Not all tracks are located out of reach from people’s homes and need to apply sound limitations so that they are allowed to stay open.
As a result of this, more and more manufacturers are now offering high-performance exhausts that keep sound output at reasonable levels as well. 96dB maximum sound level is becoming the norm. Some places even operate with lower limits.
If your goal with quieting the exhaust is to sneak past wild game completely unnoticed, you are most likely wasting your time and money. No matter how silent your exhaust is, most animals will pick you up long before you get within sight.
It is not only the exhaust which makes noise on your bike. Even when leaving exhaust sound out of the equation, the noise still present from your bike’s transmission, drive train, airbox, and mechanical engine noise is enough to make your ears ring.
Bikes with CVT transmissions are particularly noisy, where bikes with manual transmissions make for much better candidates as silent rides.
Even when riding an electric golf cart, the deer will hear you coming from far away. In addition, you have the smell from grease, oils, and exhaust that will blow your cover even if you were moving completely silent.
A quiet exhaust may allow you to drive closer to wildlife without scaring them away, leaving less disturbance in the hunting grounds.
But they will still hear you coming.
Why bother using ATVs for hunting at all then?
As operators of loud forestry machinery and farming equipment will likely testify; the sound of their machines has never scared the deer away. How can this be?
The trick is not removing the sound and smell, but making the animal used to it!
All you have to do is take a few rides through the area in the last few weeks before the hunt begins.
Use the bike to check up on your deer stands. Use it to get to know your hunting ground by mapping out important spots such as water sources and food plots. Check your trail cameras.
Make all this a part of your season preparation routine and your riding will soon no longer be an abnormality that scares them.
On opening day you should be able to ride out with little chance of spooking them. In fact, walking in by foot will usually cause a lot more disturbance, than an ATV they are used to from before.
When you make modifications to the exhaust system to make it quieter you will alter how the exhaust gasses flow through the system.
When you add a muffler you make it slightly harder for the exhaust to pass. Therefore it will require a bit more pressure to blow the same amount of air through the system in the same amount of time.
If you restrict air flow too much, backpressure may start building up inside the engine. You may experience issues like misfiring, stalling loss of power and the engine running too rich. None of which are likely to cause any damage to the engine.
But you may also experience the engine running too hot, which is not something you want.
As long as you stick to a reputable brand of mufflers that design and manufacture their mufflers for each specific ATV model, you should have little to worry about. These usually add very little back pressure.
But if you decide on one of the DIY alternatives, you are completely on your own if you mess up. Making such modifications will most likely void warranty, so be careful.
It’s always a good idea to have the jetting checked or to get a fuel programmer when doing modifications like described in this post.
You want to make sure the fuel/air mixture is still within acceptable limits.
Aftermarket muffler manufacturers will often claim that you do not need to worry about the jetting, and I have no reason to doubt that they know what they are talking about. But if you want to be completely safe, it’s worth having looked after.
More noice equals more power, right? This is not always the case anymore.
Both European and American manufacturers are now offering systems that are capable of keeping the sound output well below the recommended 96dB limit, without any power loss.
The tradeoff is usually that you get a physically larger and slightly heavier muffler. A small price to pay for keeping the trails open if you ask me.
And as long you stick to a reputable brand, you should have no noticeable loss of power by installing a muffler silencer neither. These systems add just about 2% of back pressure that will make very little impact on the engine performance.
In fact, you may actually experience a slight increase in bottom end power after installing the system.
Some of the DIY solutions, however, may cause some power loss, especially at higher RPMs. This makes such modifications best suited for hunting, Sunday rides or utility work.
If you’re into racing aftermarket systems are really your only good option.
It’s worth noting that if you ride at altitudes above 5000-6000 feet above sea level, you are advised to have the jetting adjusted for best performance. Some manufacturers will even offer specially designed systems made for high altitude riding, that will assure proper air flow and performance where the air gets thin.
An exhaust muffler silencer can reduce the sound level of an ATV exhaust by up to 60%. It dampens the popping or crackling sound from the engine backfiring and changes it to a lower pitch rumble. The actual sound reduction depends on the brand of silencer and ATV engine size.
ATV muffler tuning can be conditionally divided into four types of tasks to be solved:
As you can see, each of the above types of muffler tuning solves its own, specific task, but we will try to acquaint you with all four types of muffler tuning as briefly and as easily as possible and give you, as they say, food for thought. nine0003
You may be interested in the article - "Cleaning the muffler of an ATV with your own hands."
ATV mufflers.
This type of muffler is designed to increase engine thrust, lighten the stock design (especially important for sports tuning), and, in addition, these mufflers have a beautiful acoustic effect.
The increase in power is due to the fact that all unnecessary elements that can slow down the flow of exhaust gases are removed from the design of the muffler, roughly speaking, the exhaust in this case goes without obstacles, directly. There are a great many models of direct-flow mufflers for ATVs on sale, but their cost is very high, and therefore craftsmen make direct-flows with their own hands. nine0003
We bring to your attention the simplest scheme of a straight-through muffler.
As well as the finished silencer in the section.
And you can appreciate the pleasant and daring sound of a straight-through muffler by watching this video.
ATV Exhaust Thermal Insulation.
Why is it necessary to insulate the muffler pipes and reduce their heat transfer? Most often, this type of tuning is used on ATVs, the exhaust system of which is very close to the gas tank and, with the active operation of the ATV, brings a lot of trouble to the owner.
nine0003
There is also an opinion that reducing the heat transfer of the muffler pipes allows you to keep the exhaust gas temperature high, which, in turn, increases the exhaust gas flow rate and has a positive effect on engine health.
A special muffler thermal tape is used to insulate the pipes. There is a tape with a width of 2.5 and 5 cm, for an ATV, a width of 2.5 cm will be optimal. nine0003
When reassembling the exhaust system, use heat resistant sealant to seal the joints.
Silencer for ATV.
This type of muffler tuning is especially relevant for hunters, but can also be indispensable for people riding an ATV with a loud exhaust in densely populated areas. The disadvantages include a decrease in engine power when using additional mufflers, although manufacturers claim that this does not happen. nine0003
Factory models of additional mufflers (for example, KOLPIN) are very easy to mount on an ATV and also easy to dismantle if necessary, but again everything comes down to money, and ATVs make an additional jar with their own hands and connect it to the main muffler using a small pipe and clamps .
You can listen to the sound of the exhaust with an additional muffler in the video below.
ATV exhaust snorkel. nine0020
This snorkel is made solely to avoid water entering the engine through the exhaust pipe and to easily overcome deep fords.
It is very easy to make a nozzle: as a donor, you can use the muffler pipes of a VAZ car, choosing the most suitable length in the store, welding a snorkel of the shape and length you need on the spot, and you can fix the structure with clamps.
If overcoming fords is not a frequent occurrence for you, it is more expedient to use a stainless corrugated pipe (sold in hardware or plumbing stores) and attach it with clamps for the duration of the “water procedures”. nine0003
Well, in the end, we offer you a photo of frankly brutal exhaust tuning, as you can see, sometimes everything is limited only by our imagination.
Good luck on the road and stay with us.
monssson
Are you tired of the loud exhaust sound on your ATV? Are the neighbors complaining? Do you use an ATV for hunting? animals scatter from you Try our silencer!!! .Now you will enjoy a quiet ride without any power loss or performance degradation. Easy to install. Easily dismantled. nine0105 All hardware is included, no need to weld parts or make modifications to the ATV.
- Sophisticated sound suppression system reduces noise by up to 60% without power loss!
- Uses steel construction for durable use. It is made for all types of ATV equipment, including all-terrain vehicles and swamp vehicles.
cell.0105
monssson
Monssson
Monssson
Tsepoych
And something else? If the price turns out to be acceptable, of course
monssson
no more compact did the effect not the same. price 8500 weight 4.5 kg fastening under the ball for someone removable then the bracket is attached to the frame. nine0003
Miner1976
Throw off the link on YouTube
Monssson 9000
Forester+
monssson
did not. But if you have a desire, then you can send it to the "jar", but how to fix it and the adapter will have to be thought by yourself
forester +
monssson
Yes, it differs in its throughput by the number of labyrinths, the diameter of the mesh, the thickness of the metal "Okovskaya" can, according to its technical characteristics, will rather not suppress, but increase the exhaust roar. who does not believe can check.
SimonF
Do you make for stealth 600? nine0003
monssson
no friends standing in the garage x8 chinese here and doing it.
Forest wolf 63
How much will it cost at Can Am?
monssson
Only on x8. Other quadras require the presence of vehicles.
But if you have a desire, you can send it to the "bank", but how to fix it and the adapter will have to be thought for yourself, this will be considered not a finished product, the price of a ruble is two cheaper, the price was announced above! nine0003
Amigo 28
Does the towbar continue to function after the silencer is installed or is it removed every time?
monssson
the towbar remains in place, unless of course it is removable and performs its functions in any case. on the other hand, the muffler can be removed quickly and easily and can be removed!
vicvol73
I will mark
Hatsan OPTIMA 12
Contact T.
S.
I wrote you SMS, although I ate to chat.
No answer, if the phone number is different please write.
Yours faithfully.
monssson
call me
https://www.avito.ru/samara/mo...hitel_911477871
http://forum.x8faq.ru/viewtopic.php ?f=14&t=1049
tigerhunter
did you do it on X6?
ThoR177
Interested in CF Х5НО
zabuqrai
How stupid people are. Written only in X 8
ThoR177
Smart guy, watch your language!
monssson
friends don’t swear, the technique is all different and we are working on creating a universal additional silencer, there are a lot of thoughts, but they all crumble from the variety of ATV models. You can put a silencer on any device and I have such cases was a lot of the main condition is the presence of technology. nine0105 RESPECT TO YOU .
aak
how much does your muffler "strangle" the engine?
monssson
the diameter of all holes is in no case less than the standard exhaust muffler. Prima, the gas flow is divided into many small ones, its passage through the muffler is lengthened due to the many labyrinths at the end, it unites and freely exits closer to the ground, which also underestimates the noise level.
monssson
this does not affect the dynamic characteristics of the engine. in any case, whoever puts it is not in a hurry unnecessarily, but quietly, without noisy, drives up to the right place and also quietly leaves in that sense of this device.
Vitalya imashev
Cool thing I met a hunter in the forest on an ATV with your additional muffler I really liked the result of the exhaust in general it’s not audible like the wind in the forest I at first thought the scooter was driving through the forest. now it caught fire the desire to also ride and enjoy the singing of birds in the forest and not scare all the animals for five kilometers, and the neighbors will grumble less, tell me what you can offer me for my BRP 1000, I know that it’s not according to your model, I will be very grateful for any advice and help.
nine0003
----------
icler
monssson
call me on
https://www.avito.ru/samara/mo... hitel_911477871
http://forum.x8faq.ru/viewtopic.php?f=14&t=1049
ARIK8880
Contacts in PM
Monsson 901.2019 - 12 58
Friends with the popularity and high demand of this offer, as well as with the complexity of manufacturing, a slight increase in the price of an additional muffler is expected from the new year. nine0105 HAPPY NEW YEAR TO ALL.
Vitalya imashev
Thank you very much. this is exactly what I wanted. I recommend it to all hunters and not only. I will post a photo later.
Arik880
Guys don't raise prices, and so the price is normal.
monssson
Friends demand exceeds supply! the waiting list is two or three weeks and the price for seven years is raised a second time. With respect to everyone, but the closest analogue costs twice as much! nine0105 http://www.atvtun.ru/kolpin_protivoshumnaya_nasadka_na_glushitel
monssson
This miracle is done by the Americans if anyone liked write we have one in stock soon we will shoot a comparative video!
Yuriysergievposad
monssson
Are you tired of the loud exhaust sound on your ATV? Are the neighbors complaining? Do you use an ATV for hunting? animals scatter from you Try our silencer!!! .Now you will enjoy a quiet ride without any power loss or performance degradation. Easy to install. Easily dismantled. nine0105 All hardware is included, no need to weld parts or make modifications to the ATV.
- Sophisticated sound suppression system reduces noise by up to 60% without power loss
- Uses steel construction for durable use
Seems to be half the price of stock. location Samara region. It is made mainly for x8, but there were options for other models of ATVs and bugs, everything is negotiated individually. 89093715861
Please tell me, if you send a muffler from a taiga snowmobile, can you reduce the sound?
Yuriysergievposad
monssson
Are you tired of the loud exhaust sound on your ATV? Are the neighbors complaining? Do you use an ATV for hunting? animals scatter from you Try our silencer!!! .Now you will enjoy a quiet ride without any power loss or performance degradation.Easy to install. Easily dismantled. nine0105 All hardware is included, no need to weld parts or make modifications to the ATV.
- Sophisticated sound suppression system reduces noise by up to 60% without power loss
- Uses steel construction for durable use
Seems to be half the price of stock. location Samara region. It is made mainly for x8, but there were options for other models of ATVs and bugs, everything is negotiated individually. 89093715861
Please tell me, if you send a muffler from a taiga snowmobile, 2 stroke, can you reduce the sound?
monssson
.
Yuriysergievposad
monssson
difficult situation with the muffler from the taiga snowmobile. I have never come across looked pictures thought how to help and came to the conclusion that the engine compartment does not give vent to fantasy.can't be added! and the native is competently made to modify it is not worth it. either the engine will choke or everything will light up. Yuriysergievposad try to wrap the entire exhaust system with non-combustible material like tape as in the picture. % 15 will be quieter. nine0365
Understood, thank you.
Taydak
Good afternoon, do you do Haysan 500? And another question, is there any power loss after installing your muffler?
monssson
You can make it for any ATV and bugs, including the Haysan 500 stealth, but if you have it in the garage !!! currently stands sf moto x8 and sf moto 500 On the issue of power loss after installing an additional muffler, I will answer - it’s a bad case! The basic rule in the manufacture of a muffler is that the labyrinth and all holes with their number should not be narrower than the outlet of the standard exhaust system! nine0003
monssson
Friends, I'm sorry, I rarely visit !!! I bring to your attention a new product, an additional muffler on the SF moto 500-A, it became possible to make several copies.
Monssson
Monssson
Monssson : 2105 9000 Monsson 9000 Monsson 9000 Monsson
Successful test! There is a video on my channel! nine0003
Kalina
Will the 800 bomb be silenced?
monssson
I will make a muffler based on the throughput and cubic capacity of your ATV! The difficulty is to install and hermetically connect!
monssson
I will make a muffler based on the throughput and cubic capacity of your ATV! The difficulty is to install and hermetically connect!
monssson
Contact me at least by SMS, I will give you a WhatsApp number.
In the tablet I have similar developments!
monssson
monssson
This is a new more perfect model4 of the additional silencer! Increased the severity of the can, the most compact setting without interfering with the functions of the towbar! And a more advanced exhaust sound suppression system. nine0003zemba
And for Chinese Lifans
https://www.220-volt.ru/catalo...830958180592232 76730]https://www.220-volt.ru/ catalo...818059223276730
did you try to make mufflers?
On such motors, cheap all-terrain vehicles karakat-breaks on UAZ fists "a la Vologda" are usually assembled on such motors.
They rumble mercilessly, but their hands don't know how to attach something from the Oka.
monssson
Chinese Lifans were made yes, but only the silencer itself!!! you have to connect and install in place on your own, the models are different, the layout and location of the power unit are also different for everyone. I always advise such Kulibins to take the exhaust gases further from the seat so that the combustion products are not inhaled !!! There were no complaints. nine0003
zemba
Price, what, size, weight?
monssson
zemba the price does not fundamentally change, all the work is in the lineup of the barrel itself! material iron of different thicknesses internal labyrinths many holes of different diameters, size 25-30 cm diameter 12-15 everything depends on the cubic capacity and throughput of the power unit, respectively, the weight also changes 5-8 kg.
Vosnavnom difficulty in installation in place. Everything needs to be discussed!!! nine0105 whatsapp and viber +79179528938 .
monssson
BAD NEWS due to increased demand, the order waiting time has increased from one week to two!
monssson
BAD NEWS due to increased demand, the order waiting time has increased from one week to two!
monssson
GOOD NEWS despite the critical fall of the ruble, the price remains the same! nine0105
Kalina
There is good news, how to try it on remotely?
monssson
Kalina is waiting for a visit, otherwise it is impossible to remotely try on, but if you have not changed the design and everything is in order, how can I take a photo and even a video of the fitting!!!
monssson
monssson
Watch the video on YouTube channel. nine0003
BMP193
I myself installed an additional one from Oka on the CF 600. Everything worked out, the main sound remained from the variator. Corrugated stainless steel plumbing, from Leroy (~500 rubles).
monssson
BMP193 Well done, I just forgot to mention that it is three times larger than the regular one and you can’t put it without welding! drum! watch the comparison video.
nine0105
monssson
ATV friends!!! Work on the creation of a universal muffler has ended. The barrel itself has remained unchanged, since for eight years it has proven itself from the best side and does not need to be improved. Innovations are a strong bracket with double fastening to the barrel and the possibility of bending in the right direction! and the introduction of AISI 304 stainless steel flexible bellows for exhaust systems. The only thing I ask when ordering is the outer diameter of the standard muffler outlet and discuss the installation location, since not everyone has a tow ball mount !!! nine0105
monssson
Despite the fact that the labor intensity and the cost of manufacturing a universal additional silencer is an order of magnitude higher than usual, we will not raise the price this year.
monssson
monssson
Individual approach to each order, unlimited possibilities to make your trips quieter and more comfortable. nine0003
blawe
Can I have a link to YouTube with comparative tests?
Taydak
Didn't they make Haysan500 stealth?
monssson
In this video, we compared our version of the silencer with foreign ones!
https://www.youtube.com/watch?v=xcjpmeIN4Tg
The introduction of a special corrugation for exhaust systems into production has made it possible to improve any ATV model! nine0105monssson
https://www.avito.ru/samara/za...itel_1948057706
my tablet is always at hand and viber and vatsab
+7938.95 Sergeymonssson
monssson
https://www.avito.ru/samara/za...itel_1948057706
my tablet is always at hand and viber and vatsab
+79179528938 Sergey. nineIs the topic alive or dead?
I'm interested in the muffler for Suzuki Kingquad 750.
How much does it cost, how fast is the installation / dismantling, is it possible to ride with it all the time?
Fragment isMonssson
Monssson
Monssson 9+79179528938 Sergey.
Test video available!monssson
RSL
Hello, on AVANTIS HUNTER 200 - is it possible to do it?
monssson
marmosha
nine0003
monssson
marmosha you can say that he did everything! the barrel itself without fundamental differences! only cubature affects the flow area of gases in the labyrinth.
I don't remember exactly what the 400 BRP looks like. There are a lot of photos, only the rear view! I know that the same model may differ over the years and the place of attachment is always at the choice of the customer !!!
skinte me on a tablet photo rear view +7 917 952 89 38 Sergey.maybe I have a photo of the finished and installed version. nine0003
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
monssson
https://vk.
com/public210437417
igor honda
Are there options for Suzuki Kingquad?
monssson
Good day. I assemble an additional quiet muffler individually for each model, taking into account the wishes and possible attachment points, strictly according to the cubic capacity of the engine! On the Suzuki Kingquad 750, it is mounted on a bracket for a towbar ball, if there is no bumper on the back, there is an option for attaching to it. nine0105 Write to WhatsApp +7 917 952 89 38 so quickly. Production time 3-4 days Price 12 to Send by SDEKOM.
Igor Honda
I have a cap. I have 500, not 750
Monssson
IGOR HONDA on the photo VIZHA RIDA I suggest mounting on it, you only need to make two holes for 8mm! And you need to clarify the outer diameter of the pipe outlet of the standard muffler, so that the connecting part of the quiet muffler fits snugly on it! nine0105
monssson
photo for example! WRITE ME AT LEAST SMS to the above number, I will start assembling, I rarely go here only when I have time to sit down at a PC.
monssson
monssson
monssson
ruslangalitzin
Good day.
Guys, please tell me what could be the reason for pops in the muffler? How to fix the problem? nine0003
monssson
ruslangalitzin
Good day. Guys, please tell me what could be the reason for pops in the muffler? pops in the muffler. How to fix the problem?There are many reasons why the mixture burns out in the muffler and not in the cylinder! if injector, then you need to look at the valve for wear; if the carburetor, then, in addition to mixture formation, also the ignition angle. Or maybe it’s trite gasoline. In general, the topic is not about that 😊
Monssson
Ruslangalitzin
Monsson
There may be many reasons for why the mixture is bogged down in a dumbfound! if injector, then you need to look at the valve for wear; if the carburetor, then, in addition to mixture formation, also the ignition angle.
