Christ Posted on Posted in Tips 1 Comment Tagged with Initialize TPMS on Lexus IS, IS200t TPMS Light Reset, IS250 Tire Pressure Reset, Lexus IS Tire Pressure, Lexus IS tpms, Lexus IS TPMS Light, Lexus IS TPMS Reset, reset tire presure on Lexus is, TPMS Light Reset
Last Updated on February 16, 2020 by Christ
Lexus IS TPMS Light Low Tire Pressure Sensor Reset (IS250 IS200t) – Lexus through the line-up ‘IS presenting its increasingly fierce competition in the Small Luxury Sedan class. Although in this class of opponent that must be faced is formidable German Trio. Mercedes-Benz C-Class, Audi A4, and BMW 3-Series. Through its flagship variant of the Lexus IS 350 F SPORT, this Japanese manufacturer seems more confident to compete with its German rivals.
It is the most powerful IS variant armed with 3,456 ccs V6 engine. Our test unit is a version of the JDM (Japan Domestic Market) which adopted a special feature called the Lexus Dynamic Handling System. The advantage of these features is the ability to provide optimum stability when maneuvering in a variety of speed ranges without compromising the agility.
Contents
Time Needed : 7 minutes
If you replaced a wheel, tire, TPMS sensor, etc. and are now getting a warning light on your car, then the sensor needs to be reset. Follow these steps to reset the Tire Pressure Monitoring Sensor (TPMS) light on your Lexus IS:
Each year model may have different button locations
This tutorial is based on the Lexus owner’s manual. The procedure above can be applied to all the generations of Lexus IS (2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 model years), which is equipped with a Tire Pressure Monitoring System (TPMS). Hopefully, the article of Lexus IS TPMS Light Low Tire Pressure Sensor Reset (IS250 IS200t) useful for you.
Name
Comment
Lexus is known for its luxury and reliability, and that extends to its warning lights.
When you see a warning a “Check System” light comes on your Lexus is250, it can be difficult to know what exactly the issue is and can cause panic, fortunately, this is not as bad as it sounds. In this article, I am going to talk about the Lexus “check system” fault’s meaning, cause, and how to reset it.
Table of Contents
In short, the IS250 check system light indicates there is something wrong with the Tire Pressure Sensor (TPS) or one of the sensors on your vehicle is not working properly.
The TPMS is a system that monitors and alerts you if there is something wrong with your tires, such as low pressure or a flat. When the light comes on this means that there is an issue with one of these systems and needs to be checked out by a professional.
The main cause for this is a faulty Tire pressure sensor on one or more of your tires. The TPMS uses a sensor in each wheel to monitor the air pressure, temperature, and position of the tire.
If there is an issue with one or more of these sensors, then you will see the check system light come on.
If your tires are low on air, then this can cause the system to display “Check System.” The TPMS will not operate properly if there is too little air in the tires.
A good way to tell if this is caused by Low tire pressure is by inflating the tires to the recommended air pressure on the door placard and see if the light goes away, if not then you may need to replace the sensor or have it recalibrated.
If the battery is low on power, then this can cause the system to display “Check System.” The TPMS will not operate properly if there is too little voltage in the system.
An easy way to tell if this is caused by a Low Voltage Battery is by checking your battery voltage with a Digital Volt Meter (DVM). If it does not read at least 12.
5 volts then you may need to replace your battery since this will cause other electronics to malfunction over time over time.
Now, that you know that this is caused by a bad tire pressure sensor. The first thing you want to do is figure out which TPS is failing and have it replaced.
I personally recommend that you replace all four sensors in order to cut out all the guesswork and prevent another Tire pressure sensor problem from happening in the near future. If you have a Lexus is250, here are some steps you can take:
1) After Replacing the sensors then you have to reset the system, the easiest way to do this is by disconnecting the battery for 10-15 minutes. After that, reconnect the battery and start your car up. This will reset the system and you can check all four tires to make sure they are at the correct pressure.
The cost of replacing the tire pressure sensor on an Is250 is relatively cheap.
You can get it done at any Lexus dealership for around $150-300 for all 4 tires, but you might be able to find a cheaper price online. The part itself will cost about $20-40 per sensor and depending on where you live, the labor charge can range from $10-40 per tire.
Yes, you can still drive your Lexus Is250 with the check system message on. You just won’t be able to tell your tire pressure and can risk a tire blowout. That is why I recommend that you get the tire pressure sensors replaced as soon as possible.
Yes, you can replace the tire pressure sensors yourself. It’s a relatively easy task and only takes about an hour or so to complete. If you don’t feel like tackling this DIY job yourself then you can always take your car to a Lexus dealership and have them do it for you.
Here is a video on How to do it yourself.
Additional Sources:
https://mag.
lexus.co.uk/tyre-pressure-monitoring-system
https://www.researchgate.net/publication/349036643_Tyre_Pressure_Monitoring_System
Skip to main content
Explore all the features and performance of your Lexus vehicle in the online version of your vehicle owner's manual.
UX 200 OWNER'S MANUAL nine0003
OWNER'S MANUAL
UX 250h
NAVIGATION OWNER'S GUIDE
UX 200 / UX 250h
SEARCH MANUALS FOR PREVIOUS MODEL YEARS
OWNER'S MANUAL
NX 300 / NX 200
OWNER'S GUIDE
NX 300h
NAVIGATION OWNER'S MANUAL
NX 300h / NX 300 / NX 200
SEARCH MANUALS FOR PREVIOUS MODEL YEARS
OWNER'S MANUAL
RX 300 / RX 350 / RX 350L
OWNER'S GUIDE
RX 450h
NAVIGATION OWNER'S GUIDE
RX 300 / RX 350 / RX 350L
NAVIGATION OWNER'S GUIDE
RX 450h
SEARCH MANUALS FOR PREVIOUS MODEL YEARS
OWNER'S GUIDE
GX 460
NAVIGATION OWNER'S GUIDE
GX460
SEARCH MANUALS FOR PREVIOUS MODEL YEARS
OWNER'S GUIDE
LX 570 / LX 450d
NAVIGATION OWNER'S GUIDE
LX 570 / LX 450d
SEARCH MANUALS FOR PREVIOUS MODEL YEARS
OWNER'S MANUAL
ES 200 / ES 250 / ES 350
NAVIGATION OWNER'S MANUAL
ES 200 / ES 250 / ES 350
SEARCH MANUALS FOR PREVIOUS MODEL YEARS nine0003
OWNER'S GUIDE
LS 350 / LS 500
OPERATOR'S MANUAL
NAVIGATION AND MULTIMEDIA SYSTEMS
LS 350 / LS 500
SEARCH MANUALS FOR PREVIOUS MODEL YEARS
OWNER'S GUIDE
LC 500 / LC 500h
NAVIGATION OWNER'S GUIDE
LC 500 / LC 500h
SEARCH MANUALS FOR PREVIOUS MODEL YEARS
LEARN MORE
LEARN MORE nine0174
LEARN MORE
nine0000 How to reset a tire pressure error: a few easy stepsSave article:
The article says:
When the tires are optimally inflated, the low tire pressure indicator (TPMS) does not light up on the vehicle's dashboard.
However, in some cases, it lights up even if the pressure is normal. This can't help but be annoying, especially when the tires are inflated normally. In our article today, we will figure out how to reset a tire pressure error. nine0003
American and European scientists conducted a study, during which it was found that most drivers do not check whether the wheels are properly inflated before getting behind the wheel of a car. Only 40% of car owners perform such a check - and even then only once every 12 months. This is the reason for a large number of accidents.
The TPMS (Tyre pressure monitoring system) system is designed to monitor tire pressure, as well as warn of a malfunction. If the tires are under-inflated or over-inflated, an error will be displayed on the remote control or an audible signal will appear. nine0003
What is dangerous too high or, conversely, low pressure? The risk of an accident increases, the car begins to consume more fuel, in addition, the rubber wears out faster.
Photo: Shutterstock
The above devices operate on the same principle. Let's figure out how information about what tire pressure gets to the control panel.
7–3.2 bar. Consider how pressure is calculated by measuring instruments. Typically, the sensor performs a comparison of the angular rotation of the wheel. Knowing the value of this parameter, you can calculate the distance that the wheel will travel in one rotation. nine0003
Obviously, if the tires are under-inflated or over-inflated, then the outer diameter of the wheel will be different. Visually, a person cannot determine this change. But the sensor notices even such changes. The system fixes non-compliance with the required parameters.
The sensor will still respond, despite the fact that the wheel circumference has changed quite a bit. In this situation, it is necessary to find out what mechanical reason led to this. Only in this way can you eliminate the misinterpretation of the signals transmitted by the system.
This can happen because: nine0003
Also, the TPMS system gives an error when you install new wheels or rearrange them.
When, after these steps, a tire pressure error appeared, indicating unbalance, you should reset the settings, and then set the basic parameters. In this case, the control signal may remain even if the basic settings have been selected. nine0003
Why such problems may occur:
Some wheel is under-inflated or vice versa.
See also
Velcro or spikes: which rubber is better for the Russian winter
Read more
How to reset tire pressure error? To begin with, imagine that the TPMS system is working properly and the blinking light indicates a problem with the undercarriage of the machine. The first thing you should do is slowly release the gas. You can not brake sharply, turn the steering wheel. After the car has stopped, inspect the tires to make sure the rubber is not punctured or broken.
Then you can check if the tire pressure is normal. nine0003
Pay attention! The TPMS will not always show a tire pressure error. For example, if the tires are slowly deflating, the system will not inform you about the problem. In the same way, she will not notice the error if the tire pressure starts to drop rapidly. This usually happens when a tire ruptures. This feature of the TPMS system is explained by the specifics of identifying and counting nonconformities.
However, in some cases, it happens that the TPMS system indicator is on, but the tires are in perfect condition. How to reset tire pressure error? We understand. nine0003
The complex TPMS system in some cases starts to work incorrectly. Usually, car owners observe the following picture: a tire pressure error is displayed on the display (the tire is underinflated), but in reality everything is fine with the wheel. You have to reset the tire pressure error.
Otherwise, the TPMS system starts to work incorrectly.
Photo: Shutterstock nine0003
You also have to reset the tire pressure error when there is radio interference from high voltage power lines. Or when sources of radio signals are located in the immediate vicinity. But as soon as you move away from them, the pressure error disappears and the system begins to function properly.
The reason for the malfunction may lie in the sensor, which is "failed". This damage cannot be easily repaired. How to reset a tire pressure error if the sensor flashes, while you hear a beep, lose your vigilance and find it difficult to drive a car? There are 4 ways to fix this problem. nine0003
To reset the error, pick up a speed of 80 km / h and continue driving for another 15 kilometers.
This method is the easiest to implement. If your car has this feature, then turn on the cruise control so that the speed does not change. Depending on the model of your car, you will be able to reset the tire pressure error at a speed that exceeds the specified one.
After you cover a distance of 15-20 kilometers, maintaining the same speed of 80 km / h, make a stop. Turn off the motor. When you start it again, the tire pressure error will disappear. nine0003
Popular articles
How to choose a subwoofer for your car
19.12.2022
103
From top to bottom, obliquely: how to degrease a car body before painting
12/15/2022
72 nine0003
Chic, shine, beauty: how to remove scratches on a car with your own hands
9.12.2022
133
Without damage: how to reduce fuel consumption on a car
11/29/2022
168
nine0191 How much do they pay for advertising on a car11/25/2022
370

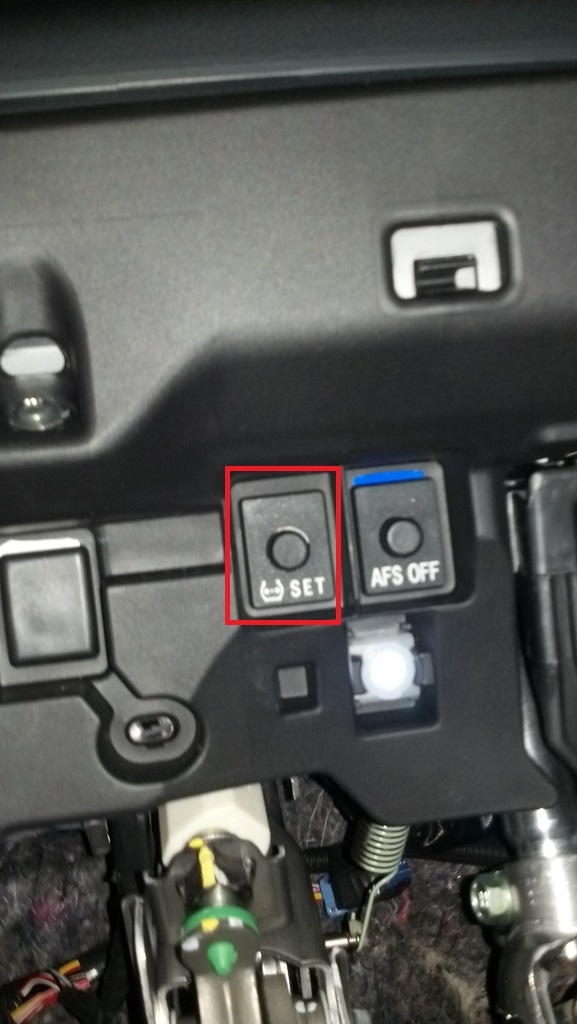

Press the tire pressure monitoring system (TPMS) reset button on your car and you will be able to reset the error.
It does not matter what type of low pressure warning system is used. In any case, there will be a sensor on each wheel of your car. Sometimes it may be necessary to reboot the touch system of the car. Read the owner's manual for the vehicle. It contains information on how to reset a tire pressure error. Most often, the instructions indicate which button to press to reset. nine0003
The ignition key must be in the lock. No need to start the car, just turn it to the “on” (“ON”) position. Then press and hold the reset button, which may be under the steering wheel. We are waiting for the low pressure indicator to blink 3 times. After that, you can release the button. We start the car, it should work for 20 minutes. After this time, the computer will calibrate the sensors on the wheels. Now you can turn off the car.
nine0002 See also
""
Read more
Lower and then re-inflate the wheels.
Failed to reset tire pressure error using the previous method? Then we inflate all tires to 0.2 bar, this is the pressure that should be according to the recommendations of car manufacturers. Did the error go away? Then we lower the pressure in the tires completely.
Now we pump up the wheels again. The pressure in them should be the same as indicated on the driver's door pillar or in the car's operating instructions. When there are sensors on the wheels, you need to remember about the spare tire. Now you need to drive about 3-5 kilometers, adhering to a speed of 25 km per hour. So you can reset the tire pressure error. nine0003
Remove the battery terminals and then connect it to reset the error.
Each car has a computer that receives data from all kinds of vehicle sensors, including TPMS system sensors. However, any electronics can fail. To reset the error, you will have to reboot the system, for which you need to turn off the power.
Photo: Shutterstock
To do this, open the hood. The battery is located under the hood. Disconnect the negative terminal from it. To perform this operation, use a wrench. Then sit in the driver's seat, turn the key to the "ON" position, but do not start the car. Now you need to press the signal for 3 seconds. This will use up the energy that remains in the electrical system of the machine. Then reconnect the battery. This way you can reset the error. nine0003
Sensors keep track of tire pressure. However, you need to be sure that they function properly. Of course, you do not need to constantly walk around with a special measuring device and find out the status of the sensors. It just needs to be calibrated from time to time.
It is performed quite simply. The most important thing to remember is that, depending on the make and model of your car, for each wheel there are pressure parameters strictly defined by the manufacturer for winter and summer.
These values should be given to the sensors. How the installation and configuration will be performed depends on the controller used. nine0003
Experts do not recommend using the internal controller yourself. However, additional settings are not required if the data is read using the screen that is directly on the control system. For current promotions on the Halva card, which will help you profitably purchase household appliances, you can follow here. nine0003
To prevent a tire pressure error from appearing, it is important to calibrate (adjust the TPMS system) every time a change is made. For example, when you installed a new set of wheels, repaired tires, did balancing, and the like. Using TPMS controllers is quite simple. The main thing is to read the instructions for use of the device. And make sure that the tire pressure is the one recommended by the car manufacturer.
nine0002 See also
"What tires can be put on rims 14, 15 and 16: advice from professionals"
Read more
Every car owner gets annoyed if the tire pressure error icon lights up on the dashboard.
