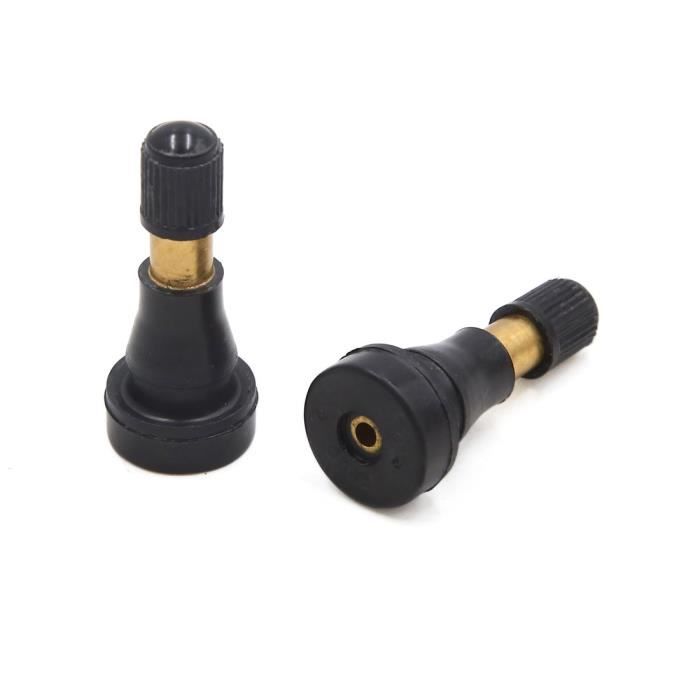

Metal clamp-in valves can be used with virtually any wheel and are highly recommended for commercial vehicles and all track activities, as well as when vehicle speeds may exceed 130 mph. All our metal valves use a 200 psi rated core.

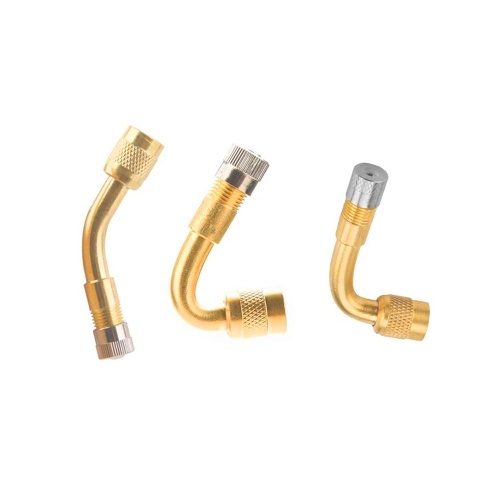

Coyote Bolt-On valve stems are constructed with high quality brass. All rubber components are made with 30% EPDM rubber molding. EPDM, (ethylene propylene diene monomer) is a type of synthetic rubber that exhibits resistance to hydraulic fluids, similar to the characteristics of brake fluid, and outstanding resistance to heat, ozone, and weather. All our valve stem assemblies offered are manufactured to SAE requirements.
Valve Core
Regardless of the valve type, the valve core is the fundamental sealing device and should be snugly screwed into the valve core chamber. Valve cores come in short and long lengths, with the short length being preferred for high performance applications.
Valve cores are available in both nickel-plated and brass. The nickel-plated valve core is used in aluminum valve stems of tire pressure monitoring sensors because using a standard brass valve core in an aluminum tire pressure sensor valve stem will experience galvanic corrosion and the brass valve core will eventually seize in the valve's aluminum barrel.
All valve cores feature a seal attached to a movable, spring-loaded pin that allows pressurized air to pass when inflating a tire, or to allow air to escape when the pin is depressed to unseat the seal. Valve cores have a working pressure of 300 psi. It is important to protect them from grit, sand and moisture. Grit and sand might prevent valve cores from sealing completely, and moisture can freeze in cold temperatures and defeat the seal.
Valve Cap
Valve Caps are available in plastic and metal. The plastic caps are fine for normal driving whereas metal valve caps to designed to withstand the high temperatures applications. Valve caps are knurled to make it easier to tighten or loosen them, while some metal caps feature hex head designs tools are available for easier removal and installation. Valve caps use a rubber washer or o-ring to seal the valve completely.
High-speed pressure loss and core contamination are reasons why valve caps should always be used.
In the event anything disrupts the valve core's seal, the valve cap provides a backup seal that prevents air from escaping.
Shop By
Shopping Options
Category
Valve Stem Height
Valve Stem Length
Valve Stem Angle
Valve Stem Finish
All Metal Valve Stems1147115ms115ms2713 Degree Bend13 Degrees13°13° Bend16 Degree Bend16 Degrees16°16° Bend23 Degree Bend23 Degrees23°23° Bend27 Degree Bend27 Degrees27°27° Bend3 Valve Stems & Hardware3.1 Metal Valve Stems3.1 Valve Stems3.12 Metal Passenger3.13 Metal Truck3.16 Tank31 Degree Bend31 Degrees31°31° Bend399400401416416L416mc41741MS41ms0043045 degree45 Degree Bend45 Degrees45°45° Bend47501OV509510511513515523MS542543544544D545545D545E546546D546E552554554D555D575575A575hp60 Degree Bend60 Degrees60086010602060306040605060ms60ms2760°60° Bend618618A621621A622622A623623A65 Degree Bend65 Degrees65°65° Bend70ms70ms2770ms775 Degree Bend75 Degrees75°75° Bend80ms80ms2790 degree90 Degree Bend90 Degrees90ms90ms2790°90° BendAir LiquidAir Liquid ValveAir Liquid Valve StemsAlcoaAlcoa Grommet Seal Valve StemAlcoa Grommet Valve StemsAlcoa O-Ring Seal Valve StemAlcoa O-Ring Valve StemsAluminumAluminum Truck Valve StemAluminum Wheel Tubeless Valve StemsBend_13°Bend_16°Bend_23°Bend_27°Bend_31°Bend_45°Bend_60°Bend_65°Bend_75°Bend_90°Bend_Double BendBend_StraightBrass Tubeless Clamp-In ValvesChromecircularClamp-In Valve StemDouble BendDouble Bent Valve StemDouble Bent Valve Stemsds1duallydually valve stemdually valve stemsdully valve stemdully valve stemsEinkyenkeiEnkei Valve StemsFlush Mount Valve StemsFor_PassengerFor_TankFor_TruckFordFord F Series Valve StemFord F Series Valve StemsH-47H-501OVH-523MSHigh Pressure Chrome Valve StemsisuzuizuzuLight Alloy Valve StemsLow Profile Chrome Valve StemLow Profile Chrome Valve StemsMetal Tubeless Clamp-In ValvesmetricMetric Rim Hole Valve StemMetric Rim Hole Valve StemsMotorcycle ValvesN-1147N-1600N1147N1600oblongovalOval Rim Hole Valve StemsPassengerrim holeSpecial Clamp-In ValvesStraightStraight - No BendTankTank ValveTank ValvesTR416TR416DS1TR416LTR416MCTR417TR430TR500TR501TR501-OVTR509TR510TR511TR513TR515TR542TR543TR543CTR543DTR543ETR544TR544DTR545TR545DTR545ETR546TR546DTR546ETR552TR554DTR555TR555DTR570TR575TR575ATR575HP-DS1TR618TR618ATR621TR621ATR622TR622ATR623TR623Atractor valveTrucktubelessTubeless Truck Valve StemTV-399TV-400TV-401TV-416TV-416-DS1TV-416LTV-416MCTV-430TV-500ATV-501ATV-509TV-510TV-511TV-513TV-515TV-542TV-543TV-543CTV-543DTV-543ETV-544TV-544DTV-545TV-545DTV-545ETV-546TV-546DTV-546ETV-552TV-554DTV-555DTV-570ATV-571ATV-572-13TV-572-F19TV-572ATV-573ATV-574ATV-575-HPTV-575-HP-DS1TV-575ATV-6008CTV-6010TV-6020TV-6030TV-6040TV-6050TV-621ATV-622ATV-623ATV-714TV-CPVtv416TV416LTV430tv500tv501tv509tv510tv511tv513tv515tv543tv543ctv543dtv543etv544tv544dtv545tv545dtv545etv546tv546dtv546eTV552tv554tv554dtv555tv555dtv570tv571tv572atv573TV575TV575HPtv60008TV6010TV6020TV6030TV6040TV6050TVCPVType_Air Liquid ValveType_Alcoa Grommet Seal Valve StemType_Alcoa O-Ring Seal Valve StemType_Aluminum Truck Valve StemType_Clamp-In Valve StemType_Double Bent Valve StemType_Ford F Series Valve StemType_Low Profile Chrome Valve StemType_Metric Rim Hole Valve StemType_Tubeless Truck Valve StemV3-20-1V_Borgvalve stemVH515-4
FeaturedBest SellingAlphabetically: A-ZAlphabetically: Z-APrice: Low to HighPrice: High to LowDate: New to OldDate: Old to New
0, 3/8 in. Swagelok tube fitting | Instrumentation Quick Couplings | Quick Couplings | Valves | All Products
| Attribute | Meaning |
|---|---|
| Housing material | Brass |
| Cleaning procedure | Standard Cleaning and Packaging Instructions (SC-10) |
| Connection size 1 | 3/8" |
| Connection type 1 | Swagelok® tube fitting |
| Maximum flow coefficient (Cv) | 1.0 - when connected to a normal or reverse flow body; 1.5 when connected to full bore body |
| ECLASS (4.1) | 37110302 |
| ECLASS (5.1.4) | 37110302 |
| ECLASS (6.0) | 37020590 |
| ECLASS (6.1) | 37020590 |
| Grease | No lubrication on any parts |
| O-ring material | Buna N (standard) |
Pressure ratings linked to max. temperature | 250 psi inch man. at 250°F / 17.2 bar at 121°C |
| Pressure ratings with reference to room temperature | 1000 psi inch man. at 70°F / 68.9 bar at 21°C |
| Series | QC6 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 31160000 |
| UNSPSC (4.03) | 31163101 |
Choose a new product with similar features
CAD Disclaimer: This template has been prepared for informational purposes. Template dimensions are for reference only and are subject to change. See Swagelok product catalogs for more information.
The reader should consult a qualified engineer before using the pattern in whole or in part.
2D
2D models are available for this product. Download CAD file.
3D
There are 3D models for this product. Download CAD file.
Sales drawing
Sales drawings are available for this product. Download files.
| Product code | Housing material | Connection size 1 | Connection type 1 | Connection size 2 | Connection type 2 | |
|---|---|---|---|---|---|---|
| B-QC4-S-2PM | Brass | 1/8" | Out. thread NPT | - | - | Product View |
| B-QC4-S-400 | Brass | 1/4" | Swagelok® tube fitting | - | - | Product View |
| B-QC4-S-400K1 | Brass | 1/4" | Swagelok® tube fitting | - | - | Product View |
| B-QC4-S-400K3 | Brass | 1/4" | Swagelok® tube fitting | - | - | Product View |
| B-QC4-S-4PF | Brass | 1/4" | Int. thread NPT | - | - | Product View |
| B-QC4-S-4PM | Brass | 1/4" | Out. thread NPT | - | - | Product View |
| B-QC4-S-6M0 | Brass | 6 mm | Swagelok® tube fitting | - | - | Product View |
| B-QC6-S-4PF | Brass | 1/4" | Int. thread NPT | - | - | Product View |
| B-QC6-S-4PM | Brass | 1/4" | Out. thread NPT | - | - | Product View |
| B-QC6-S-600 | Brass | 3/8" | Swagelok® tube fitting | - | - | Product View |
| SS-QC4-S-200 | Stainless steel 316 | 1/8" | Swagelok® 9 tube fitting0017 | - | - | Product View |
| SS-QC4-S-2PF | Stainless steel 316 | 1/8" | Int. thread NPT | - | - | Product View |
| SS-QC4-S-2PM | Stainless steel 316 | 1/8" | Out. thread NPT | - | - | Product View |
| SS-QC4-S-400 | Stainless steel 316 | 1/4" | Swagelok® tube fitting | - | - | Product View |
| SS-QC4-S-400K1 | Stainless steel 316 | 1/4" | Swagelok® 9 tube fitting0017 | - | - | Product View |
| SS-QC4-S-400K2 | Stainless steel 316 | 1/4" | Swagelok® tube fitting | - | - | Product View |
| SS-QC4-S-400K3 | Stainless steel 316 | 1/4" | Swagelok® tube fitting | - | - | Product View |
| SS-QC4-S-400K4 | Stainless steel 316 | 1/4" | Swagelok® tube fitting | - | - | Product View |
| SS-QC4-S-400K5 | Stainless steel 316 | 1/4" | Swagelok® 9 tube fitting0017 | - | - | Product View |
| SS-QC4-S-4FT | Stainless steel 316 | 1/4" | Int. conical thread ISO | - | - | Product View |
| SS-QC4-S-4MT | Stainless steel 316 | 1/4" | Out. conical thread ISO | - | - | Product View |
| SS-QC4-S-4PF | Stainless steel 316 | 1/4" | Int. thread NPT | - | - | Product View |
| SS-QC4-S-4PM | Stainless steel 316 | 1/4" | Out. thread NPT | - | - | Product View |
| SS-QC4-S-4PMK2 | Stainless steel 316 | 1/4" | Out. thread NPT | - | - | Product View |
| SS-QC4-S-6M0 | Stainless steel 316 | 6 mm | Swagelok® tube fitting | - | - | Product View |
| SS-QC6-S-10M0 | Stainless steel 316 | 10 mm | Swagelok® tube fitting | - | - | Product View |
| SS-QC6-S-4PF | Stainless steel 316 | 1/4" | Int. thread NPT | - | - | Product View |
| SS-QC6-S-4PM | Stainless steel 316 | 1/4" | Out. thread NPT | - | - | Product View |
| SS-QC6-S-600 | Stainless steel 316 | 3/8" | Swagelok® tube fitting | - | - | Product View |
| SS-QC6-S-6PF | Stainless steel 316 | 3/8" | Int. thread NPT | - | - | Product View |
| SS-QC6-S-6PM | Stainless steel 316 | 3/8" | Out. thread NPT | - | - | Product View |
| SS-QC8-S-12M0 | Stainless steel 316 | 12 mm | Swagelok® tube fitting | - | - | Product View |
| SS-QC8-S-810 | Stainless steel 316 | 1/2" | Swagelok® tube fitting | - | - | Product View |
| SS-QC8-S-8PF | Stainless steel 316 | 1/2" | Int. thread NPT | - | - | Product View |
| SS-QC8-S-8PM | Stainless steel 316 | 1/2" | Out. thread NPT | - | - | Product View |
| B-18RF8 | Brass | 1/2" | Int. thread NPT | 1/2" | Int. thread NPT | Product View |
| B-1RF2 | Brass | 1/8" | Int. thread NPT | 1/8" | Int. thread NPT | Product View |
| B-1RF4 | Brass | 1/4" | Int. thread NPT | 1/4" | Int. thread NPT | Product View |
| B-1RM4 | Brass | 1/4" | Out. thread NPT | 1/4" | Out. thread NPT | Product View |
| B-1RM4-F4 | Brass | 1/4" | Out. thread NPT | 1/4" | Int. thread NPT | Product View |
| B-1RM4-S4 | Brass | 1/4" | Out. thread NPT | 1/4" | Swagelok® tube fitting | Product View |
| B-1RM6 | Brass | 3/8" | Out. thread NPT | 3/8" | Out. thread NPT | Product View |
| B-1RS12MM | Brass | 12 mm | Swagelok® tube fitting | 12 mm | Swagelok® tube fitting | Product View |
| B-1RS4 | Brass | 1/4" | Swagelok® tube fitting | 1/4" | Swagelok® tube fitting | Product View |
| B-1RS6 | Brass | 3/8" | Swagelok® 9 tube fitting0017 | 3/8" | Swagelok® tube fitting | Product View |
| B-1RS6MM | Brass | 6 mm | Swagelok® tube fitting | 6 mm | Swagelok® tube fitting | Product View |
| B-1RS8 | Brass | 1/2" | Swagelok® tube fitting | 1/2" | Swagelok® tube fitting | Product View |
| B-ORF2 | Brass | 1/8" | Int. thread NPT | 1/8" | Int. thread NPT | Product View |
| B-ORS2 | Brass | 1/8" | Swagelok® 9 tube fitting0017 | 1/8" | Swagelok® tube fitting | Product View |
| M-1RM4 | Alloy 400 | 1/4" | Out. thread NPT | 1/4" | Out. thread NPT | Product View |
| M-1RS4 | Alloy 400 | 1/4" | Swagelok® tube fitting | 1/4" | Swagelok® tube fitting | Product View |
| PFA-4RPS4 | Perfluoroalkoxy (PFA) | 1/4" | Swagelok® tube fitting | 1/4" | Swagelok® tube fitting | Product View |
| PFA-4RPS6 | Perfluoroalkoxy (PFA) | 3/8" | Swagelok® tube fitting | 3/8" | Swagelok® tube fitting | Product View |
| PFA-4RPS8 | Perfluoroalkoxy (PFA) | 1/2" | Swagelok® tube fitting | 1/2" | Swagelok® tube fitting | Product View |
| SS-18RF6 | Stainless steel 316 | 3/8" | Int. thread NPT | 3/8" | Int. thread NPT | Product View |
| SS-18RF8 | Stainless steel 316 | 1/2" | Int. thread NPT | 1/2" | Int. thread NPT | Product View |
| SS-18RF8RT | Stainless steel 316 | 1/2" | Int. conical thread ISO | 1/2" | Int. conical thread ISO | Product View |
| SS-18RM8 | Stainless steel 316 | 1/2" | Out. thread NPT | 1/2" | Out. thread NPT | Product View |
| SS-18RM8-F8 | Stainless steel 316 | 1/2" | Out. thread NPT | 1/2" | Int. thread NPT | Product View |
| SS-18RS12 | Stainless steel 316 | 3/4" | Swagelok® tube fitting | 3/4" | Swagelok® tube fitting | Product View |
| SS-18RS12MM | Stainless steel 316 | 12 mm | Swagelok® tube fitting | 12 mm | Swagelok® tube fitting | Product View |
| SS-18RS18MM | Stainless steel 316 | 18 mm | Swagelok® tube fitting | 18 mm | Swagelok® tube fitting | Product View |
| SS-18RS8 | Stainless steel 316 | 1/2" | Swagelok® tube fitting | 1/2" | Swagelok® tube fitting | Product View |
| SS-1RF2 | Stainless steel 316 | 1/8" | Int. thread NPT | 1/8" | Int. thread NPT | Product View |
| SS-1RF4 | Stainless steel 316 | 1/4" | Int. thread NPT | 1/4" | Int. thread NPT | Product View |
| SS-1RF4RT | Stainless steel 316 | 1/4" | Int. conical thread ISO | 1/4" | Int. conical thread ISO | Product View |
| SS-1RM2 | Stainless steel 316 | 1/8" | Out. thread NPT | 1/8" | Out. thread NPT | Product View |
| SS-1RM4 | Stainless steel 316 | 1/4" | Out. thread NPT | 1/4" | Out. thread NPT | Product View |
| SS-1RM4-F4 | Stainless steel 316 | 1/4" | Out. thread NPT | 1/4" | Int. thread NPT | Product View |
| SS-1RM4-S4 | Stainless steel 316 | 1/4" | Out. thread NPT | 1/4" | Swagelok® tube fitting | Product View |
| SS-1RM4-S6 | Stainless steel 316 | 1/4" | Out. thread NPT | 3/8" | Swagelok® tube fitting | Product View |
| SS-1RS10MM | Stainless steel 316 | 10 mm | Swagelok® | tube fitting10 mm | Swagelok® tube fitting | Product View |
| SS-1RS12MM | Stainless steel 316 | 12 mm | Swagelok® tube fitting | 12 mm | Swagelok® 9 tube fitting0017 | Product View |
| SS-1RS4 | Stainless steel 316 | 1/4" | Swagelok® tube fitting | 1/4" | Swagelok® tube fitting | Product View |
| SS-1RS4-BKB | Stainless steel 316 | 1/4" | Swagelok® tube fitting | 1/4" | Swagelok® tube fitting | Product View |
| SS-1RS4-PK | Stainless steel 316 | 1/4" | Swagelok® tube fitting | 1/4" | Swagelok® tube fitting | Product View |
| SS-1RS4-SC11 | Stainless steel 316 | 1/4" | Swagelok® tube fitting | 1/4" | Swagelok® tube fitting | Product View |
| SS-1RS4-SG | Stainless steel 316 | 1/4" | Swagelok® tube fitting | 1/4" | Swagelok® tube fitting | Product View |
| SS-1RS6 | Stainless steel 316 | 3/8" | Swagelok® tube fitting | 3/8" | Swagelok® tube fitting | Product View |
| SS-1RS6MM | Stainless steel 316 | 6 mm | Swagelok® tube fitting | 6 mm | Swagelok® tube fitting | Product View |
| SS-1RS6MM-SC11 | Stainless steel 316 | 6 mm | Swagelok® tube fitting | 6 mm | Swagelok® tube fitting | Product View |
| SS-1RS6-PK | Stainless steel 316 | 3/8" | Swagelok® tube fitting | 3/8" | Swagelok® tube fitting | Product View |
| SS-1RS6-SH | Stainless steel 316 | 3/8" | Swagelok® tube fitting | 3/8" | Swagelok® tube fitting | Product View |
| SS-1RS8 | Stainless steel 316 | 1/2" | Swagelok® tube fitting | 1/2" | Swagelok® tube fitting | Product View |
| SS-1RS8MM | Stainless steel 316 | 8 mm | Swagelok® tube fitting | 8 mm | Swagelok® tube fitting | Product View |
| SS-ORF2 | Stainless steel 316 | 1/8" | Int.  |
