Carburetor Maintenance for Motorcycles and ATVs


Carburetor from a Yamaha YFM200 Moto 4.

Carburetors were the standard for fuel delivery in gasoline-powered passenger cars and trucks up until the late 1980s, when fuel injection saw greater widespread use and eventually overtook the carburetor as the preferred method. Then-new government regulations of emissions and fuel economy dictated the changeover and the very last production passenger vehicle for the North American market to use a carbureted engine was the 1994 Isuzu TF Series Pickup (the last-ever production passenger vehicle to use a carburetor was the 2015 Lada Riva).


The Yamaha YFM200 Moto 4 is a popular vintage ATV model that uses a carburetor.

Unlike passenger vehicles, small engines do not fall under the same set of restrictions for pollution and fuel economy and it is still quite common to find late model motorcycles, ATVs, snowmobiles, powerboats, and other recreational powersports vehicles that use carburetors as opposed to fuel injection systems.


Weber carburetors under the hood of a Shelby Cobra.

Compared to modern fuel injection, carburetors are relatively low-tech. Perhaps, even archaic by today’s standards. There is, however, beauty in simplicity. Carburetors less expensive to produce and far less complicated to build, maintain, and/or repair. Unlike an electronic fuel injection system, carburetor maintenance is easy enough for anyone to perform with the most basic mechanical skills. Our quick how-to instructional piece will show you how to clean and maintain the carburetor on your motorcycle or ATV for maximum performance and efficiency.

Why Do I Need to Clean the Carburetor?


Yuck!

All that nasty black soot that you see caked around the exhaust pipe exits, that’s all carbon deposits. Carbon is a byproduct of combustion and all gasoline-burning engines produce it. Engines that experience regular daily use are less-prone to carbon buildup as proper heat cycles and fuel flow help to clean and break up carbon deposits before they can accumulate. When engines sit unused for long extended periods of time, carbon deposits can harden and varnish can form in the carburetor, intake, and combustion chambers. Also, in many parts of the country, gasoline is mixed with ethanol and a nasty side-effect of ethanol is that draws moisture directly from the atmosphere. We all know that water and gasoline is a problem. This excess moisture can also promote rust on sensitive carburetor parts such as in the float, the jets, along the throttle plate, and also on the exterior linkages and connections. That’s why it’s a good idea to use a water displacer or fuel stabilizer if storing your powersports vehicle for a season or for any extended timeframe. The tell-tale signs that your carburetor may be due for a good deep-cleaning include rough and choppy idle, poor throttle response, difficulty starting, and the possibility of random stalling. At first, these symptoms can seem quite scary but more often than not, the solution is a simple but thorough cleaning of the carburetor. Especially, if you haven’t started your engine in over a month.

So, now that you know the reasons why you should keep your carburetor clean, let’s go over the steps on how to do it.

YOU WILL NEED:

  • Screwdrivers (Phillips and flathead screwdrivers)
  • Needle nose pliers
  • Wire brush (A toothbrush also works. It can be an old one or a brand new one, just as long as it’s not the one you’re using now.)
  • Rags (Avoid using paper towels. Fine paper fibers can clog sensitive carburetor parts, thus negating the whole purpose of cleaning the carburetor in the first place.)
  • Nitrile gloves
  • Air compressor (A can of computer duster can be a suitable substitute.)
  • Protective eyewear
  • Wrench or socket set
  • Carburetor and choke cleaner
  • Throttle cleaner (There IS a difference. Only use this for the throttle plate.)
  • New gaskets (HIGHLY RECOMMENDED!)
  • Carburetor rebuild kit (Might be necessary, especially on older models or vehicles that have been sat unused for a very, very long time.)

#1: REMOVE THE CARBURETOR

Turn off the fuel valve on your fuel tank and then track the fuel line down to the carburetor. Remove the hose. This would be a good time to inspect the condition of the fuel hose and check for any cracks or dry rot (replace if necessary, do not reuse damaged fuel line). Remove the overflow hose that runs out of the carburetor and then loosen the clamps at the front and rear of the carburetor. The carburetor will now be loose, but held in place by the throttle cable. Don’t let it hang under its own weight as this can cause premature wear and stretching of the throttle cable. Twist the top cap to remove the throttle cable and remove the carburetor. Once the carburetor has been unmounted, remove the throttle slide from the cable.

#2: REMOVE THE FLOAT

When cleaning a carburetor, this is the first thing to be taken apart. Common problems include engine flooding, running too rich (too much fuel) or too lean (too much air), and stalling under engine load. Remove the float bowl by loosening the four screws on the bottom of the carburetor. Be mindful not to use excessive force as these screws can strip easily. Gently pull the float bowl off the carburetor.TIP: You might want to replace the gasket.

With your needle nose pliers, gently pull out the float pin. Once the pin has been removed, the float itself can be removed. Note that on some carburetors, the needle will be hanging on the float and come out with it.

#3: REMOVE THE JETS

WARNING: Some carburetors have splash jets that need to be removed before the jets themselves can be extracted.

The jets are where the fuel flows and mixes with the atmospheric air. These are screws with a small hole through them, much like a brake bleed screw. The main jet is short and fat and will have either a hex head or a flat screw head. The pilot jet is long and thin and have a flat screw head. Be careful not to use too much force when removing the jets; the biggest risk is accidentally stripping the screw threads and getting tiny metal shavings inside the hard-to-reach spots and crevices within the carburetor interior.

#4: REMOVE THE EXTERIOR PARTS

This is the idle screw, air screw, and the choke (if external). With a flathead screwdriver, remove the idle and air screws. Again, be mindful not to use heavy force. If the carburetor has an external choke, turn the top with a wrench. The choke should easily slide out.

#5: CLEAN!

WARNING: Remove all gaskets and o-rings prior to cleaning the carburetor. Carburetor cleaner chemicals will eat through rubber o-rings. Also, be sure to wear nitrile gloves and safety glasses when using the spray cleaners. It’s nasty stuff and you don’t want it soaking into your skin and/or getting in your eyes.

Spray a little bit of carburetor cleaner on the exterior and use your wire brush/tooth brush to break up and agitate the debris. Give it another good shot of the spray cleaner and begin to work the holes where the jets, air and idle screws, float needle, and choke reside. Spray the holes directly with the cleaner. For stuck, caked-on debris, try to blow it out with compressed air (a thin needle or steel guitar string can also help fish out the gunk). For the throttle inlet, spray the throttle cleaner while breaking up the deposits with your brush. Spray again to wash away the residue. When finished, blow off the carburetor with compressed air. Don’t let the loosened dirt/carbon debris/cleaner sludge dry back onto the carburetor and its components.

#6: REASSEMBLE THE CARBURETOR AND REINSTALL THE UNIT


Race Driven sells complete carburetor rebuild kits, such as this one for a Yamaha Moto 4.

This would be a perfect opportunity to replace your old gaskets and o-rings with brand new ones. These pieces are meant to form tight impenetrable seals and by dislodging and disassembling the carburetor, you risk damaging these protective layers. At Race Driven, we specialize in small engine parts for motocross, street and competition motorcycles, and off-road and performance ATVs. We have full carb kits that include all the vital components such as replacement jets, springs, gaskets and o-rings for popular models by Yamaha, Kawasaki, Honda, Polaris, Suzuki, and more.

CARB REBUILD KIT BOMBARDIER/CA 26-1753

No reviews yet Write a Review

All Balls Racing
CARB REBUILD KIT BOMBARDIER/CA 26-1753

Rating Required Select Rating1 star (worst)2 stars3 stars (average)4 stars5 stars (best)

Name

Email Required

Review Subject Required

Comments Required


SKU:
CK1453A

$47. 24

Quantity:

2 in stock

  • Description

CARB REBUILD KIT BOMBARDIER/CAN AM DS650 02-07

Related Products

Quick view

All Balls Racing

SKU: CK1319A

CARB REBUILD KIT HONDA ATC125M 26-1754

Retail Price:

$44.28

Click to see Dealer Pricing

1 In Stock

Quantity Add to Your List

Quick view

All Balls Racing

SKU: CK1325A

CARB REBUILD KIT HONDA TRX200D 26-1599

Retail Price:

$45. 67

Click to see Dealer Pricing

3 In Stock

Quantity Add to Your List

Quick view

All Balls Racing

SKU: CK1452A

CARB REBUILD KIT BOMBARDIER/CA 26-1752

Retail Price:

$55.38

Click to see Dealer Pricing

1 In Stock

Quantity Add to Your List

Quick view

All Balls Racing

SKU: CK7030A

CARB REBUILD KIT YAMAHA TTR50 26-10030

Retail Price:

$33. 43

Click to see Dealer Pricing

1 In Stock

Quantity Add to Your List

Do-it-yourself carburetor tuning on an ATV

ATVs

  • Child
  • Teenagers
  • Off-road
  • All-wheel drive
  • Trailers

Motorcycles

  • Road
  • Enduro
  • Off-road
  • Scooters
  • Mopeds
  • Minibikes
  • Crossbikes
  • Pit bikes

Electric bicycles

  • Urban
  • Mountain
  • Folding
  • Tricycles
  • Fatbikes

Electric transport

  • Bicycle hybrids
  • CityCoco
  • Truck
  • Monowheels
  • Scooters
  • Scooters
  • Motorcycles
  • ATVs
  • Tricycles
  • Segways
  • Gyroscooters
  • Electric vehicles
  • Electric skateboards
  • Electric rollers

Bicycles

  • Mountain
  • Urban
  • Ladies
  • Fatbikes
  • Baby
  • Motorbikes
  • Bicycle trailers

Garden equipment

  • Mini tractors
  • Adapters
  • Motoblocks
  • Cultivators
  • Trailers
  • Attachment

Equipment

  • Helmet
  • Motorcycle jackets
  • T-shirts Jersey
  • Glasses
  • Protection
  • Gloves

Miscellaneous

  • Buggy
  • Scooters
  • Boats
  • Snowmobiles
  • Motorized towing vehicles

Accessories

  • Bicycle
  • Trunks
  • Backpacks and bags
  • Tourist
  • Motorcycle kits
  • Stickers
  • Cases
  • Cans

Parts

  • Motorcycle wheels
  • Batteries
  • Gaskets and repair kits
  • Bearings and seals
  • Plastic, frame and seats
  • Exhaust system and accessories
  • Carburettors and fuel system
  • Pendant
  • Handles and cables
  • Chains
  • Stars
  • Brakes
  • Electrical
  • Engines
  • Clutch
  • Filter
  • Starter

Spare parts for

models
  • Motorbike
  • E-bike
  • Electric scooter
  • ATV TaoTao
  • Motorcycle Kayo
  • Bicycle
  • Linhai ATV
  • Motorcycle Racer
  • Gyroscooter
  • Pitbike 110-125cc
  • Minibike
  • Scooter and moped
  • Electric vehicle
  • Electric ATV
  • ATV 49cc
  • ATV 110-125cc
  • ATV 150-250cc
  • CFMoto
  • Stealth

Fluids

  • Motul
  • Mannol
  • Ipone
  • Motorex
  • Repsol
  • Miscellaneous

It often seems like an insurmountable task for beginners to tune and adjust the carburetor of an ATV, but in fact, it is far from being the case. Using our instructions, you can easily set up a carburetor with your own hands.

Due to improper carburetor settings, problems such as: failures during acceleration, jerks while driving, uncertain start of the engine, poor acceleration dynamics, overheating, loss of power, increased fuel consumption, formation of deposits in the combustion chamber.

So what exactly are we going to tune?

Idle speed setting

Mixture quality setting (special screw on carburetor).

Adjusting the quality of the mixture (by moving the needle position)

Attention! The adjustment is carried out under the condition of a warm engine and a clean carburetor.

First, make sure there is no condensation in the carburetor. First, you need to drain the gasoline from the float chamber, for this you need to close the fuel valve and not completely unscrew screw No. 1, after the gasoline has drained from the float chamber, tighten screw No. 1.


Let's look at photos of candles with various deposits and defects.

A 100% indicator of a correctly adjusted combustible mixture is carbon deposits on a candle.


  1. Spark plug with engine running without fault.
  2. Engine with increased fuel consumption.
  3. Lean air/fuel mixture.
  4. Too much additive containing metal.
  5. Engine after a long period of inactivity.
  6. Cylinder inoperative spark plug
  7. Complete destruction of the center electrode with its ceramic skirt.
  8. Wear or embedding of oil scraper piston rings.

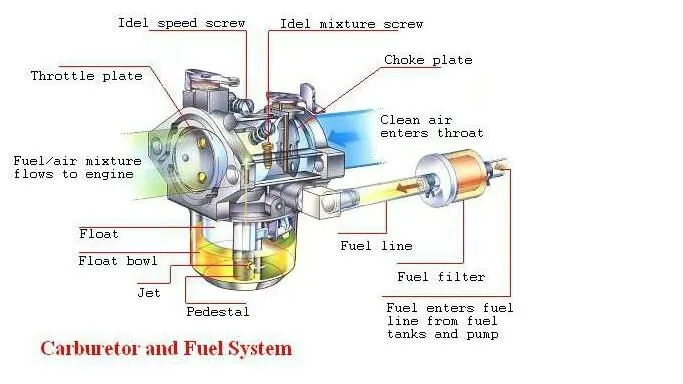

Consider the location of the screws for adjusting the quality of the mixture and idle speed of carburetors of different models.


#1 Float chamber plug; No. 2 Mixture quality screw;


#3 Idle adjustment screw.


1 - idle speed adjustment screw; 2 - fuel inlet fitting; 3 - fitting through which you can sleep fuel from the float chamber; 4 - screw-plug of the float chamber.


1 - ventilation tube; 2 - idle speed adjustment screw; 3 - screw for adjusting the composition of the air-fuel mixture.

ATV carburetor speed and mixture adjustment.

1. Start and warm up the engine until it reaches operating temperature.

2. Adjust the idle screw to set the idle speed to normal. Completely, until it stops, tighten the fuel mixture screw, the engine should stall. If this does not happen, check the tightness of the air supply system from the air filter.

3. Loosen the fuel mixture screw 1 turn. (Turning the screw clockwise, we enrich the mixture, unscrewing it counterclockwise, we lean).

4. Start the engine and, by adjusting the idle screw, set the speed slightly higher than usual

5. Slowly unscrew the fuel mixture screw until the engine reaches maximum speed (we unscrew the screw no more than 2 turns, but depending range may fluctuate due to engine wear and other faults).

6. Re-adjust the idle screw to set the idle speed to normal.

7. Press the throttle trigger a few times, check if the idle speed is stable.

Mixture quality adjustment with a needle.



Probably you have heard more than once about adjusting the quality of the mixture on the carburetor by manipulating the needle. I note that these are extreme measures, for the initial adjustment, use the mixture quality screw, and only if you do not get the desired result, unscrew the mount and remove the needle. What does she represent? This is the main element that regulates the amount of gasoline supplied to the combustion chamber. Connected directly to the throttle handle through a cable. When you turn the knob, the needle rises higher, opening up a channel for fuel, thereby delivering more mixture, which increases power, which translates into speed.

You will see 5 grooves on the needle at the attachment point. Initially, the retaining ring fixes it in the central position, this is the best option. But sometimes it is not possible to achieve the required quality of the mixture. Then we will need the remaining grooves, 2 on top and 2 on the bottom, this suggests that we can adjust the dose gradually.

Lifting the retaining ring up and locking it in this position lowers the needle, which, in turn, blocks the channel more than usual. Gasoline enters less than air, and the mixture becomes leaner. Lowering the ring down, we raise the needle, and everything happens exactly the opposite.

Be aware that an excessively lean or rich mixture can lead to serious malfunctions from overheating to loss of power, carbon deposits in the combustion chamber and all the consequences that follow from this. Keep an eye on the condition of the spark plug electrodes, this is the main indicator that will help you determine the quality of the mixture.



Related Materials:

Choosing ATV Protection
How do I adjust the valves on an ATV?
What to do and how to restore the ATV after drowning?
Do-it-yourself carburetor tuning

Adjusting the carburetor of an ATV - how to adjust the carburetor on an ATV 50, 110, 125, 150 cubes with your own hands

In order for the ATV to work like a clock, the rider needs to regularly carry out a complete maintenance of the equipment. And a key element of maintenance is ATV carburetor adjustment. Over time, the system starts to work incorrectly, which increases fuel consumption, worsens dynamics and other problems appear. So how do you adjust an ATV carburetor?

Why do I need to tune the fuel system?

The operation and life of the engine directly depends on the quality of the fuel mixture. The carburetor is responsible for the preparation of the composition, but after prolonged use of the equipment, the settings “go astray”. This results in:

  • Problems starting the power unit. For example, if a 125cc ATV carburetor is not adjusted, the unit may stop starting or stall.
  • Poor throttle response and power loss. Due to incorrect system settings, the engine speed decreases, respectively, its power drops.
  • Dips during acceleration. Traction can disappear for one or several seconds. But the most unpleasant thing is that such failures occur sequentially, which significantly interferes with speed gain.
  • Decreasing dynamics. The quad becomes "sluggish" and reluctantly picks up speed. In addition, jerks appear when accelerating.
  • Excessive carbon deposits. An improperly prepared mixture leads to the fact that a large amount of soot appears in the combustion chamber, due to which the engine overheats. Naturally, this reduces the life of the engine and leads to its breakdown.

Many riders who decide to buy an inexpensive ATV simply do not spare the technique and ignore this procedure. But even if you plan to change your device in 1.5-2 years, adjustment is needed. The reason for this is increased fuel consumption. A quad with an untuned carburetor "eats" 30-40% more gasoline, and these are tangible costs.

How to avoid problems?

So how do you adjust the carburetor on a Chinese ATV? For this you need:

  • Set idle speed. The procedure is performed using a special screw, which is responsible for the quality of the composition and the number of revolutions.
  • Optimize fuel composition quality.
  • Adjust the petrol level.

However, it is important to remember that all adjustments are made only with a "clean" carburettor. This means that the rider needs to remove all the dirt from the node and flush the system to remove condensation and sediment from it.

Note: Just before adjusting, the engine must be warmed up to operating temperature.

How do I adjust the carburetor on an ATV?

To set the carburetor idle speed, the float chamber must first be cleared of fuel. To do this, start the ATV, close the fuel cock and wait until the machine stalls (5-10 minutes). To speed up the process, you can take a little ride on the quadric. Of course, gasoline can be drained, but in any case you will have to warm up the device, so the first method of "removing" gasoline is more effective.

Then:

  • Open the tap.
  • Start the device.
  • Screw in the screw (#2) that is responsible for the quality of the mixture until it stops. Remember that to enrich the composition, turn to the right, and to deplete it to the left. If at this stage the quadric stalls, then there are problems (the pipes are depressurized).
  • Turn screw #2 once (to the left).
  • Increase idle speed with #3 bolt. Start the quad and check the RPMs. They will be slightly higher than the standard indicators.
  • Remove bolt #2 (turn it 2-2.5 times). After that, the motor should reach maximum speed.
  • Start correcting the system using screw #3. Focus on sound. The engine should run smoothly, without strain.
  • Step on the gas. So you make sure that the speed does not fall.

Read the manual before adjusting the carburetor on a 125cc ATV to be sure. Remember that the location of the bolts is different in different devices, so read the documentation in advance.

How to adjust the quality of the prepared mixture?

To evaluate the quality of the fuel composition, make a test run. After that, unscrew the candle, and evaluate its condition. If it is:

  • Brown (near the insulator). This means that everything is in order. But if such a shade is only on one side, the composition is too poor.
  • Black (on insulator). Soot signals that the system is supplying a lot of fuel. However, if the entire candle is black, then the composition is too rich, which increases gas mileage.
  • White (insulator). This means that there is not enough fuel and air. And if the mixture is too lean, the whole candle will be white.
  • Red. This means that there is a high concentration of metals in the composition.

Also look out for these "symptoms": damaged tip (electrode failure), oil deposits (damage to rings and caps), chips and inclusions (sign of motor failure).

To adjust the mixture you need to twist the needle cover and pull it out. To get the needle, pull out the cable. After that, move the ring in the required direction (lower - more air, but less fuel and vice versa).
