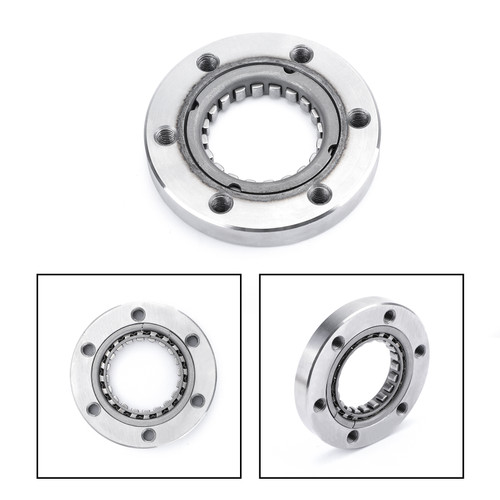

An all-new replacement clutch utilizing 20% oversize rollers to improve clutch life under hard starting conditions. Includes new pinion gear that solves the kick out problem associated with worn OEM clutches. The strengthened shaft insure reliable starting and the high contact bearing seals will not leak oil.
| Product Style | RevZilla Item # | MFR. Product # | Availability |
|---|---|---|---|
| Product Style All Balls Starter Clutch With Bearing For Harley Twin Cam 2006-2017 | RevZilla Item #1085517 | MFR. | AvailabilityIn Stock: Ships within 24 hours |
This product is vehicle specific.
Select a vehicle to ensure fitment.
Select Your Vehicle
Product Description
Part Numbers
Fitment
3 Customer Reviews
3 4.
5/5
1 Questions & 0 Answers
ATV Riders Forum > Sport ATV Model Information > Honda TRX 400EX & 400X ATV Info > another starter questions.... starter/sprag
PDA
View Full Version : another starter questions.... starter/sprag
Xplorer99
10-12-2011, 07:02 PM
hey guys... iv had an ongoing starter problem... at first i thought i just needed a new battery... then after a new battery it still did it.... so i thought starter was going bad... but a buddy of mine just had to replace the starter clutch on the inside of the motor... and he said his did the same thing mine is doing. just wanted some more opinions before i rip the side cover off lol..
- starter spins but wont crank motor. hit the starter again, might spin the motor enough to get 2 full cranks out of the motor... might sping free again... then sping the motor..
. sometimes it starts out spinning the motor, then it just spins free...
it usually only does this when you first cold start it... when im out riding it doesnt seem to do it... but then again the motor is warm and starts on the first crank
i pulled the starter side cover, and the idler gear is fine, no teeth missin on the starter shaft or on the idler. and the reduction gear teeth are fine too. should i just buy the internals and replace them? what all parts would need/should be replaced?
i was hoping to get a few more weeks of riding in before snow flies... but seeing how my clutch cable broke. and this problem is getting worse, i may end up parking it early this year and tearing it apart... it does need a bunch of minor stuff done any... ugh:ermm:
edit: reduction gear has a bit of front to back play... about .035
dxcody
10-13-2011, 05:32 AM
not real sure on that one, but i have a good starter i would sell you for cheap.
.
PM me if you are interested.
Xplorer99
10-13-2011, 10:15 PM
i took the idler gear out, and the starter spins consistantly with out the gear in there, doesnt hesitate or anything. perhaps i should just tear that clutch deal out and replace it and see if that works?
Pipeless416
10-13-2011, 10:34 PM
it's your starter clutch. its basically a one way bearing. you basically just pull the left cover off, then remove the flywheel and its right there. about a 20 minute job with the right tools :)
Xplorer99
10-13-2011, 10:47 PM
Originally posted by Pipeless416
it's your starter clutch. its basically a one way bearing. you basically just pull the left cover off, then remove the flywheel and its right there. about a 20 minute job with the right tools :)
ok thanks, i just wanted a second opinion on it... only special tool would be the flywheel puller right? i actually just tore down a 300ex.
..completely lol so i know its not real hard.
does the starter clutch just wear out and get worse to the point of no starting? or could it self destruct or something? im not one to put off maintenance, but being so close to winter time, id like to ride it a couple more weeks before it park it for the winter...
thanks for the info!
dxcody
10-18-2011, 05:09 AM
now mine started doing the same exact thing.
Except mine officially went out on me yesterday.
What exactly is it? The one way starter clutch or that big gear on the back of the flywheel?
Xplorer99
10-18-2011, 05:22 AM
Originally posted by dxcody
now mine started doing the same exact thing.
Except mine officially went out on me yesterday.
What exactly is it? The one way starter clutch or that big gear on the back of the flywheel?
the one way bearing. the OEM parts fische shows the bearing and clutch together but 2 seperate parts.
.. not sure if you replace one or the other or both tho...
Pipeless416
10-18-2011, 12:39 PM
you just replace the one way bearing/starter clutch. it will not self destruct or anything, however if you take it out and compare it to a new one you will notice that the spring running through the entire thing will have some free play. also, you are correct. a flywheel remover is the only thing that's "odd" that this job requires. you may want to replace the cover gasket while you're in there.
edit: ask for a price quote from honda east toledo. they are a new sponsor of atvriders and they have their own section with special atvriders.com member pricing.
link to their section:
http://www.exriders.com/vbb/forumdisplay.php?s=&forumid=238
Xplorer99
10-18-2011, 03:54 PM
thanks! ill give them shout a pay day then..
what would i need? part number 4, or 5
http://partsfinder.
onlinemicrofiche.com/worldofwheels6/Honda_OEM/HondaATV.asp?Type=13&A=110&B=16
Pipeless416
10-18-2011, 04:03 PM
number 5
Xplorer99
12-25-2011, 01:15 PM
that special tool to remove the flywheel is the flyweel HOLDER isnt it.... lol i bought the flywheel removal tool (the "bolt") tore everything apart (wasted recently changed oil) to find out that i apparently need ANOTHER special tool haha. but i did pull the clutch cover, cleaned the oil screen, and checked my clutch plates, they need replaced and so do the clutch springs, and replaced the valve cover gasket that has been leaking for a while. so it wasnt a totally wasted day...
i got the bearing (as well as MANY other parts) from Honda East Toledo.... BIG SAVINGS and highly recomended!
Powered by vBulletin® Version 4.2.1 Copyright © 2023 vBulletin Solutions, Inc. All rights reserved.
Bosch
Russia, Khanty-Mansi Autonomous Okrug, Surgut, Nefteyuganskoe shosse, 24Northern Industrial District
Rating:
221 ratings
All services
Car wash
car wash
engine wash
wheel wash 9Ol000
noise isolation
electrical equipment repair
tuning
engine tuning
car glass repair
Repair of the suspension
Repair air conditioners
Replacement of the rear window
Smecile replacement
Installation Ksenona
Repair of exhaust systems
installation of car skins
replacement of side glass
9000installation of seat belts
replacement of front door glass
repair of xenon ignition unit
URSTRAING STYOK
Fine repair
Repair of electronic control systems of car
Outbound services
Outbound tire tires
Evaciatorial services
TECHNISHING on the road
Exiting Auto -Supervision
9000
on-site truck diagnostics
on-site oil change
Steering gear
READY RIGE
Replacing steering rack
Repair GUR
Steam replacement
Replacement of steering tips
Steering shaft replacement
Installation GUR
Repair of the GUR pump
9000 replacement of the rack oil seal
repair of the steering column
repair of the steering
repair of the steering gear
replacement of the steering column cable 9Ol000 GUR
repair of steering rods and tips
Type
bus station
car repair shop
Vehicle type
Repair of foreign cars
Repair Chinese cars
Commercial transport repair
Repair of Korean cars
SUV repair
Repair of Japanese cars
Repair of American cars
Repair of domestic cars
Tuning 9000 Tyuning 9000
chip tuning
fog lamp installation
diesel chip tuning 9Ol000 tires
wheel balancing
tire repair
tire inflation
wheel rolling
Direction of tires
Repair of the side cuts of tire cuts
Blackthrough rubber
Vulcanization of tires
Repair Gryzh
Repair tires
Diagnostic
Infiniti car service
Additional equipment and electrics
generator replacement
tow bar installation 9Ol000
lambda probe replacement
computer repair
ignition lock repair
radio installation
Checking the ignition coils
Replacement of the oil pressure sensor
Speed Speed Speed
Replacement of the Camelon sensor
Replacement of the ECU
Subwoofer setup
Repair of the Devices Panel
9000preheater installation
distributor replacement
navigator installation
coolant temperature sensor replacement
Replacement of fuses of fuses
Repair of heating seats
Installation GPS
Replacement of the fuel level sensor
Rear speed replacement
Diagnostics ECU
Replacement of a cigarette lighter 9000,9000 throttle sensor replacement
heater motor repair
radio installation
generator diagnostics
Diagnostics of air conditioner
replacement of high -voltage wires
Replacing a retractive relay
Replacement of the motorcycle engineer
Repair of the battery
Repair Climate control
Repair Webasto 9000 solenoid relay
electrical diagnostics
speedometer drive replacement
parking sensors replacement 9Ol000 signal
electronics repair
alarm key fobs repair
mass air flow sensor replacement
Replacement repair of ATV Polaris
repair of ATV Yamaha
repair of ATV CFMOTO
Motorcycle brands
Repair motorcycles Ural
Motorcycle repair IL
Repair Minsk Minsk
Repair of the motorcycle Dnipro
Repair BMW
brands of snowmobile brands Brp 9000
ATV wheel alignment
ATV brake bleeding
ATV gearbox oil change
ATV starter repair
Lubrication of snowmobile bearings
Oil replacement in the ATV box
installation of ATVs
Lubrication of the ATV circuit 9000
motorcycle shock absorber repair
motorcycle gearbox repair
motorcycle alarm installation
Lubrication of motorcycle bearings
Brake fluid replacement of the motorcycle
Replacement of the motorcycle antifreeze
Charging motorcycle battery
Motorcycles Motorcyle adjustment
Body repair
9000 gearboxesclutch adjustment
engine diagnostics
throttle cleaning 9Ol000
oil pump repair
clutch fork replacement
engine computer diagnostics
Viskift repair
Piston group replacement
Differential repair
Setting up throttle
Replacement of the culse
manual transmission cables replacement
GDI repair
cooling system diagnostics
powershift clutch replacement
DOSCOPT EGR
Diagnostics of transmission
Repair of the Piston Group of the engine
Repair of the fuel injection system
Pillow Pillows of the PMPP 9,000 running gear
brake hose replacement
brake system repair
brake system diagnostics
Maintenance
Adjustment of the headlights
Washing engine
Benzosa replacement
Maintenance
Washing the engine nozzles
Sensor replacement
Brake fluid replacement
9000 intervalheadlight bulb replacement
turn signals replacement
ignition coil replacement 9Ol000
Throttle cable change
Compressor oil change
Tail light bulb change
Clutch fluid change
Oil replacement in differentials
Replacement of fuel pressure regulator
Catalyst cleaning
Repair of intercooler
Compression measurement
Filters replacement
9000
replacement of locks
diagnostics of the exhaust system
replacement of the trunk light bulb
1.01.0290 2.1.01.0290 Overrunning clutch (bendix) of the starter, assy (STARTER CLUTCH) ATV Stels ATV 300B 4x4 Bueang rotates. There is no engagement of the electric starter gear with the crankshaft. In this case, it is necessary to change the overrunning clutch of the Stels ATV 300B electric starter.
Drain the engine oil
Unscrew the plastic trim on the right side
Unscrew and remove the shift rods from the shift knob to the gearbox.
1 - Disconnect connectors (magneto leads) 2 pcs.
2 - Exhaust pipe
3 - Exhaust gasket
4 - Magneto cover
5 - Magneto cover gasket
6 - Pins 2pcs.
7 - Stator winding
8 - Induction sensor
1 - rotor
2 - shaft (intermediate gear)
3 - gear of the starter Divine
4 - Club of the starter assembly
5 - Outbuilding
6 - The gear of the starter coupling of the starter
(Do not touch the protruding part of the rotor with the pulley holder.) Remove the rotor nut
Remove the washer
Remove the rotor with a flywheel puller. Position the flywheel puller over the rotor. Make sure that after installing the mounting bolts, the gaps between the puller and the rotor are the same throughout their entire length. If necessary, one of the mounting bolts can be turned slightly to adjust the position of the puller. Cover the end of the crankshaft with a spanner for protection.
Remove the rotor
Remove the key
Inspection/troubleshooting of the starter drive gears
Inspect the gear teeth for burrs/splintering, chipping/roughness/wear, and if damaged, replace.
Starter idler gear teeth
Starter freewheel teeth
Starter shaft teeth
Hold the starter clutch.
When turning the starter gear clockwise , should engage between the starter clutch and gear .
If no engagement occurs, the clutch is defective and must be replaced.
When turning the starter gear counterclockwise , the rotation must be free .
If the rotation is not free or smooth, the starter clutch is faulty. It should be replaced.
Install the starter gear, then install the key.
Clean the crankshaft taper and rotor bushing.
When installing the magneto rotor, make sure the key is securely seated in the crankshaft.
Install the rotor, washer and nut
Tighten the rotor nut while holding the rotor with the pulley holder. Tightening torque: 80 Nm
