How to make a tire rim fire pit


Build a tire rim fire pit in your backyard

Build a tire rim fire pit in your backyard

Fire pits are an essential component of any outdoor living space, especially if you enjoy spending time outdoors at night. In addition to providing warmth and light, fire pits also create a focal point for social gatherings, making them the perfect addition to any backyard.

A tire rim fire pit made from a tractor tire rim is a great way to add a fire pit to your yard without spending a lot of money. If you’re looking for a cheap and easy way to add a fire pit to your backyard, consider making one from a tractor tire rim. This project is simple to do and only requires a few materials. Plus, it’s a great way to repurpose an old tire rim.

An old tractor tire rim makes an excellent fire pit because it is made of heavy-duty metal. The metal will hold up well to the heat of the fire, and the rim will contain the flames and prevent them from spreading. All you have to do is find an old tractor tire rim in your local area and have the centre cut out so that you only have the outer round metal.

Our Pick

Wood Burning Backyard Fire Pit with Cooking Grill

$169.81

The Black round fire pit is designed with an outer ledge around the central fire area allowing for convenient access to drinks and roasting supplies.

Buy on Amazon

We earn a commission if you make a purchase, at no additional cost to you.

11/19/2022 12:28 am GMT

Find a spot in your backyard where you can lay the tractor rim for your tire rim fire pit. If you have a shovel, use it to dig a hole that is a few inches deep. Place the rim in the hole and then fill the hole back up with dirt, making sure that the rim is level. If you want, you can use a level to make sure that the ground is level before you place the rim down.

Make sure to add some bricks around the perimeter to protect people from the hot metal while your tire rim fire pit is in use. You may also want to consider adding a screen or lid to help contain the fire and prevent embers from escaping.

To install the bricks around your tire rim fire pit, you can use landscape adhesive for a more solid build. This will ensure that your brick wall is secure and will last for a long time. If you’re looking for a more permanent installation, you can use mortar to set the bricks in place. However, this will require more time and effort to complete.

If you want to make your tire rim fire pit even safer, leave a gap between the tractor rim and your brick wall as you are building it. Fill that gap with crushed gravel and sand until it’s level with the top of your brick wall. The gravel and sand will absorb heat first and your brick wall should stay cool to touch even after hours of using the tractor rim fire pit!

This will help to prevent accidental fires from spreading. Additionally, you may want to consider lining the inside of your fire pit with fire bricks to help contain the heat and prevent any damage to your tractor rim.

If you’re looking for some inspiration in building your own tire rim fire pit, then look no further. We’ve put together some tips and ideas to help you get started.

Have a look at our gallery of beautiful tire rim fire pit ideas below to see how other DIY-ers built their own!

You’ll need these materials:

  • Old Tractor Tire Rim
  • Bricks/Big Rocks
  • Crushed Gravel and Sand
  • Landscape Adhesive

And these tools:

  • Shovel
  • Spirit Level

Click on any image to start the lightbox display. Use your Esc key to close the lightbox.

Thanks to Tractor By Net for this great project. You can get step-by-step instructions here

Garden Guides | Fire Pit Ideas With Tire Rims

Share this article

  • Home /

By: Lisa Magloff

17 July, 2017

Old tire rims can be used to make a cheap and practical fire pit for your backyard. Best of all, a tire rim fire pit requires little or no expense and no construction skills, and it can be made in just a few minutes. With a bit more effort, the tire rim fire pit can also become an attractive permanent addition to your outdoor space.

Materials

To make a fire pit, you will need a large tire rim, such as a rim from a tractor or truck tire. These can sometimes be found very cheaply at wrecking yards or auto body shops. Do not use an aluminum rim, because they can melt at high temperatures. You will also need some fire bricks, rocks or stones to go around the rim. If you want to use the pit for cooking, you will also need some metal grating to go on top of it.

Basic Fire Pit

To make the most basic type of tire rim fire pit, simply place a tractor or truck tire rim on its side on a non-flammable surface, such as dirt or gravel. If you are building the fire on concrete or stone, you can place a piece of fire-resistant metal underneath the rim to protect the concrete from blackening. Place stones around the rim to hold it in place and for decorative purposes. Build your fire inside the rim. You can also place a grill on top for grilling food. When not cooking food, a piece of mesh placed on top will prevent embers from flying onto any nearby flammable surfaces.

Buried Pit

If you do not like the look of a tire rim in your yard, you can dig a pit first, and place the rim inside. The tire rim will prevent scorching of the earth and create a nice, even shape for the fire pit. Place decorative stones around the outside of the pit and build them up to create a safe area. You can also place railroad ties on the ground around the pit for rustic seating.

Decorative Pit

You can also turn a tire rim into a permanent backyard addition. Place your tire rim on the ground and lay wall blocks around it. Mark out a circle on the ground the same size as your tire rim and blocks. Dig out this circle to a depth of around 12 inches. Place six inches of gravel into the trench and then use masonry adhesive to attach two layers of wall blocks into place inside the trench, on top of the gravel. Add another six inches of gravel. Place the tire rim on top of the gravel, inside the ring of wall blocks. Build up the wall around the tire rim by adding two or three more layers of blocks, attaching them together with masonry adhesive. Surround the rim with wall blocks and mortar these together. Place capstones, such as flagstones, on top of the wall blocks and attach these using flexible mortar. Wait for the mortar to dry and your pit is ready.

Related Articles

References

  • The Firepit and Grilling Guru: Creative homemade fire pit ideas Want to Build a Fire Pit?
  • This Old House: How to Build a Fire Pit

Writer Bio

Since graduating with a degree in biology, Lisa Magloff has worked in many countries. Accordingly, she specializes in writing about science and travel and has written for publications as diverse as the "Snowmass Sun" and "Caterer Middle East." With numerous published books and newspaper and magazine articles to her credit, Magloff has an eclectic knowledge of everything from cooking to nuclear reactor maintenance.

Do-it-yourself fireplace - we create comfort and beauty on the site

Contents

Hearth in the country under a cauldron

If you like to cook something in a cauldron over a fire, for example, real pilaf, stewed vegetables or meat, then before you start fold the hearth, you need to figure out how to put a cauldron on it later. The first option is to make a small hearth of stones, on which a large cauldron can be placed on top. If you need more space for a fire, make a metal structure that can be placed in a fire, and place a cauldron on top of it. Or you can make a hearth from an old car disk. How to do this - read below, and the cauldron will stand on top without any problems.

Above-ground location of the campfire site in the country

Before setting up a campfire site, it is necessary to carefully consider the area of ​​its location. The hearth should be located away from garden trees, a country house and other outbuildings. The optimal distance to the house and buildings should be at least 3 meters, and at least 4 meters to the crowns of the nearest trees. Also, do not make out a place for a fire in a lowland or on a hill. It is better to choose the golden mean.

After the place for the dacha hearth is determined, the site should be prepared: remove debris, plant roots, level the surface of the site and mark the place for the hearth itself. As a rule, the hearth is made round in shape, with a diameter of about a meter. It is necessary to remove a layer of turf from the intended area. This is necessary so that later the entire site can be laid out with paving slabs or stone. In the center of the site, the location of the hearth itself is marked. To decorate the fire, you can use the iron rim. In the place where it is planned to install a metal rim, a small layer of soil is removed, the bottom of the resulting recess is leveled and the rim is installed.

If the structure has very thin walls, it will not be able to provide the necessary strength during operation. Therefore, along the entire area of ​​\u200b\u200bthe outer wall, concrete blocks or stones are laid out in several rows. Paving slabs or granite cobblestones are also suitable for this. For masonry, it is better to use a special masonry mortar. Clay mortar is more suitable for laying natural stone.

To prevent the campfire site from becoming a pool of water after heavy rain, the roof needs to be cut out. A suitable piece of sheet metal can be used as a material.


above-ground structure of the hearth

Types of country hearths

You can build a hearth in the country with your own hands of different types. Depending on what is acceptable for the owners, what exactly is needed from such a structure, you can make a choice. Foci can be deep and external. It is worth understanding what each of them represents.

Buried hearths

You can make a hearth in a recessed cottage according to the following principle:

  1. The first step will be digging a hole of the right size, it should be about 40 centimeters deep.

The next thing to do is fill the bottom of the pit with gravel, up to 15 cm thick.

The base can be made using block stone or brick.

Before laying out the base of the country hearth, it is necessary to fill it with an adhesive composition for fireplaces, or with a clay solution.

Next, you can lay the first layer, which must be firmly tamped and made even.

All remaining gaps and spaces in the inner ring must be filled. You can do this using gravel.

The next thing to do is to round the fire pit. The row that will be the final one is better to lay out using the decorative type of stones, so you can give the hearth an exclusive decorative look.

  • Furnishing the interior space of a summer cottage can be made using a metal screen, which needs to be shaped into a cylinder. The thickness of the sheet should be up to 2 mm;
  • The gap that remains between the walls of the fireplace and the soil must be filled with soil remaining after digging the hole;
  • You also need to take care to make a protective platform that will surround the hearth. With its help, you can not only protect the nearby space from fire, but also additionally decorate the hearth;
  • Such a platform is made using the usual laying of a selected and more suitable material, for example, brick, stone, paving stones, or you can simply fill it with concrete;
  • Further on, you can equip the resulting area with benches or other places to relax. When installing them, you need to remember that the minimum distance from the hearth should be 80 centimeters;
  • To make a place for cooking, you can build a tripod that will fit in the diameter of the fire and hang a metal grate on it.

Reference: another option for building a hearth in a country house of this type can be the principle of a cone-shaped hole that needs to be dug before starting work. It is only necessary to concrete the dug cone and veneer it with decorative material.

Outdoor type of hearth in the suburban area

This type of suburban hearth can be constructed according to two principles: with an open fire and a fire of a closed type. In terms of security, the second option is better. To make an outdoor hearth with an open fire you need:

  • having decided on a place for a hearth in a summer cottage, remove a layer of earth, which will be 10 centimeters thick;
  • The diameter of the fireplace can be 1 meter;
  • the hole, which turned out after digging, must be covered with rubble, stone or any fine-grained material of this kind;
  • along the circumference of the formed hole, lay out pebbles, not less than 10 cm high;
  • be sure to make a fire protection pad around.

If there is a desire to build a more secure structure, then this can be done as follows:

  • Next, you need to install a special metal circle, the diameter of which will be at least 40 cm and a height of 30 cm. For these purposes, you can use an old drum from a washing machine or a cut metal barrel;
  • The outer part of such a circle is laid out with stone or brick. Special refractory stone materials can be used;
  • This masonry must be at least 10 cm thick; Masonry should be carried out with the use of a solution, and do not leave any gaps.

    Simple options

    Making a fire pit can be done much faster. Firstly, a lot of country or courtyard hearths made of metal are offered. All you need is a platform on which you put a metal fire pit.


    Metal bowl - a quick way to decorate a campfire site

    The advantage of this solution is not too high a price and the simplicity of setting up a campfire site. The advantages include low weight, which allows you to bring the installation under the roof for the winter or in bad weather.

    A very similar option is a concrete fire pit. They are cast in different sizes, they are round or square. You can do exactly the same yourself, but you will have to wait at least a month. And they put the finished bowl, and you can use it.


    Quick and easy

    Designing the area around the fireplace

    Pebbles, gravel or garden path tiles can be used to decorate the area around the fireplace. If you expand the territory near the hearth, you get an excellent platform for a good rest. An interesting option is flat slabs of irregular geometric shape, which are laid out in a fancy pattern. These wide slabs easily accommodate armchairs, benches, or other various garden furniture. An ideal option for arranging a campfire site in the country would be a circular bench with backs. To give such a platform comfort and coziness, the site can be decorated with rugs, and decorative pillows and rugs can be placed on the bench.

    From the same material used in the decoration of the hearth, it is possible to make a supporting wall, it will also serve as a back for the bench. In order not to have to go far for firewood, a special woodshed is equipped next to the fire place, which is decorated in the same style with the hearth.

    A garden path can be laid out next to the fireplace, along which small street lamps can be installed. This will make the site cozy in the evening and create a special romantic atmosphere.

    Often, the area around the fire is made in the form of the sun, and improvised sun rays are painted on the lining. It will be interesting to look at the summer cottage in the hearth, made in the form of a lunar crater or a fireplace, next to which you can install a small figurine of a guardian cricket.

    An interesting idea for decorating a campfire site in a country house

    Designing a place near a campfire in a country house is not so difficult. The main conditions in the work are the availability of all the necessary building materials, clear calculations, the availability of free time, imagination and a little creativity.

    How to properly equip?

    The first association associated with fire is firewood. It is logical to store them near the hearth, so the woodshed should be placed either next to the site or directly inside it. For convenience, you can provide benches with firewood under the seat or arrange a storage place directly in the construction of the fire pit.

    See examples of beautiful wood stacking.

    On the photo is a firewood storage option

    The second association is rest. A wasteland with a fire in the center has zero functionality, the hearth, first of all, is a place for communication and relaxation. Therefore, there should be sitting (or even recumbent!) places next to it - benches, armchairs, chairs, deck chairs, outdoor sofas or poufs.

    Fire pits with cooking grates should be provided with a common table or individual tables so that there is a place to put a plate of food, a glass of wine or a cup of tea. As a common table, you can specially expand the sides of the fireplace. As an idea for side tables, improvised items, such as stumps or barrels, are suitable.

    To make the space truly cozy, do not forget about decor and lighting. The fire itself will act as the main source of light, it can be supplemented with low solar-powered lanterns, garlands or candles.

    Textiles (pillows, blankets), beautiful dishes (if cooking is provided) and ornamental plants will help to decorate the recreation area. Do not overdo it with the design, the main role should remain behind the fire.

    Do-it-yourself outdoor hearth: features of arrangement

    Outdoor hearth in landscape design is usually not a separate element, but part of a complex designed for relaxation, communication with friends. A certain territory is allocated for this, which should not only be beautiful and conducive to a relaxed pastime, but also comply with fire safety requirements - remoteness from residential and utility rooms.

    When localizing the territory for a street fire with their own hands, they also take into account its remoteness from the boundaries of the site, which is required to ensure the convenience of neighbors, whose possessions can get smoke if the place is chosen incorrectly. A safe hearth not only will not transfer heat to flammable materials, but also eliminates the likelihood of smoke entering the living quarters on the site.

    In order to ensure fire safety, it is possible to build a hearth from natural stone that does not ignite. For reliability, lay out paving slabs or other hard surface around the fire.

    Another important point is the drainage system and its implementation in the design. It is desirable that rainwater that gets into the hearth for a fire can flow out of it on its own. To do this, you can make a slight slope or provide for drainage that allows water to pass into the ground.

    Options for outdoor fireplaces for the garden

    According to the complexity of the design, the main types of fireplaces can be distinguished, each of which has some variations - subspecies:

    1. Open hearth for cooking. A high-quality fireplace is built on a concrete base (if desired, reinforcement can be added), at least 10 cm thick. The internal lining of refractory bricks will allow you to use the building for a long time without chips inside and, accordingly, the need for repairs.
    2. Semi-open. Available only with gratings to provide traction. And in the case of using a solid sheet, it will be necessary to complete the chimney.
    3. Bake. It is made in a much smaller form than for heating houses, but the layout is the same. It is assumed that there are doors for drafting and stacking firewood, a smoke outlet, removable rings or a closing sheet on top for normal ignition.

    According to the materials used to create the hearth, stone (cobblestones), brick, iron and concrete can be distinguished. One of the simplest options is to use as a basis non-flammable products that have lost their intended purpose. So, a hearth from a barrel can be cut out of any height and decoratively overlaid with a stone or other facing material for beauty. It will turn out practical, inexpensive and quite aesthetically pleasing.

    Fundamentals of work

    The work to be done in the process of building a hearth in a country house has the same essence, no matter which version of the fire pit is chosen for the device. Initially, it is worth saying that the material for manufacturing can be any, the main thing is that it is refractory, for example, it will do:

    • stones of various sizes;
    • bricks;
    • concrete blocks, etc.
    Stage Characteristic
    Filling the base of the fireplace Whatever the hearth, you should always take care of its base, which will ensure not only safety of use, but also convenience when cleaning the hearth from burnt wood residues.
    Material selection This moment determines the further level of strength of the erected walls. How much will be needed in order to fold the hearth depends only on its diameter and height. It is recommended to make the walls of the hearth of large bricks.
    Wall laying The laying process itself may vary depending on what type of fire pit is being built. Can be laid with a solution, you can exclude its use. In some embodiments, the use of cement mortar on the walls is simply not necessary. The main thing is to be convinced that everything is installed securely, tightly and cannot be destroyed by someone else's influence.
    Fire place The core of the hearth is a fire. You can leave it as it turns out after pouring the base and laying the walls, or you can make an additional fixture for a fire or for cooking. It is possible, during the laying of the walls, to install an iron beam of the required size in them, on which there will be a special grill for frying in a suspended state. You can make such a grate removable and simply put it on the fire. Everyone will determine which device is better, based on their desires.
    Stage Characteristic
    Pouring the base of the fireplace Whatever the hearth, you should always take care of its base, which will ensure not only safety of use, but also convenience when cleaning the hearth from burnt wood residues.
    Material selection This moment determines the further level of strength of the erected walls. How much will be needed in order to fold the hearth depends only on its diameter and height. It is recommended to make the walls of the hearth of large bricks.
    Wall laying The laying process itself may vary depending on what type of fire pit is being built. Can be laid with a solution, you can exclude its use. In some embodiments, the use of cement mortar on the walls is simply not necessary. The main thing is to be convinced that everything is installed securely, tightly and cannot be destroyed by someone else's influence.
    Fire place The core of the hearth is a fire. You can leave it as it turns out after pouring the base and laying the walls, or you can make an additional fixture for a fire or for cooking. It is possible, during the laying of the walls, to install an iron beam of the required size in them, on which there will be a special grill for frying in a suspended state. You can make such a grate removable and simply put it on the fire. Everyone will determine which device is better, based on their desires.

    We invite you to read How to get rid of ants in the country

    Types of hearths

    Before you make a place for a fire with your own hands in a suburban area, you need to choose a suitable design. There are different options, but some have gained the most popularity for ease of use and safety:

    1. Recessed design. You just need to clear the site and dig a hole in the ground 50-60 cm deep and about the same diameter. Revet the surface with any fire-resistant material, it is also advisable to lay out with stone, tile or brick and place around the buried hearth.
    2. Brick fireplace. Most often raised above the ground to make it more convenient to use. For the interior, use only high-quality refractory bricks. For exterior decoration, conventional cladding options can also be used; they normally withstand moderately high temperatures.
    3. Stone hearth. You can collect this material for free, it is harder to make a place for a fire with your own hands from it, since the stones are uneven and of different sizes. This option withstands high temperatures well, such a fireplace in landscape design looks solid, fits well into any environment.
    4. Concrete structure. You can do it simply: put the formwork of the desired size and shape, reinforce the internal cavity with reinforcement and fill it with concrete mixed with crushed stone or stones. If you do not like the gray surface, you can clad the outside with refractory tiles or bricks.
    5. Reinforced concrete ring. A simple option, since you can buy a small ring inexpensively, then just prepare the place and put it directly on the ground, or pre-fill the base with concrete. The fire pit looks simple, but it performs its functions well.
    6. Metal structure. You can buy a ready-made version, or you can make a hearth for a fire on your own. The metal is not afraid of fire, but it gets very hot, so it’s better not to touch it, many people make a frame in their summer cottage to insert a metal hearth there and eliminate any problems.

    You need to choose the best solution for your site. You can study the information on the network, look at the pictures, find what is suitable for the site. Buy materials with a small margin, because during work you always get waste.

    How to make a hearth for a campfire in the country with your own hands

    A fireplace can be built from different materials in many ways. There are many options for building a hearth with your own hands, which do not require special skills.

    How to make a brick fire pit with your own hands

    One of the simplest options is a do-it-yourself round brick fire in a hole. Algorithm:

    1. Dig a hole, slightly expanding upwards. The depth is slightly more than the length of the brick.
    2. Remove the fertile layer of earth around it to protect it from fire.
    3. Fill the bottom with crushed stone, stone or pebbles.
    4. Lay out the walls of the pit with bricks, placing it vertically. You can spread it with a wide side or an edge.
    5. Line the protective area around the hearth with bricks, stones, fragments of paving slabs or other material of your choice.

    If desired, the bottom of the hearth from the fireplace can be laid out with the same brick as the walls. There is another option for arranging a fireplace in the country with your own hands without digging a hole. A metal bowl is installed on a pre-prepared site and covered with a brick, fixing it with a solution. The thickness of the masonry is made from 10 cm. As a bowl for a fire, a trimmed barrel, a drum from a washing machine, a circle welded from a sheet of steel are suitable. If desired, the metal frame can be partially deepened.

    Tip! For durability from the inside, the hearth for the fire is laid out with fireclay bricks, and outside, to save money, with ordinary ones. Solutions are used, respectively, fireclay and cement-sand.

    A brick fire pit can be laid out in different ways, but for stability it is important to fix most of the elements with mortar

    How to make a fire pit out of stone with your own hands

    A fire pit can be made out of sandstone. Algorithm:

    1. Draw a circle corresponding to the diameter of the focus.
    2. Remove the fertile layer inside.
    3. Mark a larger circle, departing from a smaller one, according to the size of the sandstone.
    4. Dig the earth between the circles - this is the place to pour the foundation.
    5. Install fittings.
    6. Pour concrete.
    7. Level the surface with a spatula.
    8. After the concrete has hardened, lay out the hearth of sandstone, fixing the stones on the mortar. With a diameter of 1.5 m, a height of 45 cm is sufficient.
    9. Lay out the firebowl with refractory bricks, fixing it to the mortar.

    Remove the sod around the hearth to provide a protective space. This area can be laid out with paving stones, covered with fine gravel or river stones.

    Sandstone for the hearth should be sorted by size in advance so that the rows, especially the last one, are as aligned as possible in height

    The stone can be beautifully placed over a metal or concrete fire pit

    For a bonfire, the bowl can be made from an old barrel, and the grate can be hung or installed on top of supports

    How to make a metal fire pit with your own hands

    There are many options for a metal fire pit. It can be made from four sheets of steel 0. 5 × 1 m. The algorithm is simple:

    1. Weld a rectangular box.
    2. Weld eight legs-rods - four in the corners, the rest in the middle of each side of the box.
    3. Set the hearth in the chosen place, sinking the legs into the ground.

    It is not necessary to prepare a special site for such an outbreak. If necessary, it is simply removed from the street. Another option is to make the fire pit stationary.

    How to make a concrete fire pit

    A concrete fire pit can be round, square or rectangular. In the first case, to fill the bowl, you will need two metal rings (can be cut from barrels) of different diameters, in the second - a wooden frame. Algorithm for erecting a square or rectangular hearth:

    1. Prepare the base.
    2. Assemble two formworks, one inside the other, leaving 15-20 cm between the walls.
    3. Set the formwork on the base, fix it with bricks or stakes driven in from all sides.
    4. Drive reinforcement into the space between the formwork in increments of 15-20 cm. Deepen to the same distance. Suitable rods with a length of 0.5-0.6 m and a diameter of 10-12 mm.
    5. Pour concrete between the formwork. You can make a solution of cement M150, sand and gravel 1:3:4.
    6. Leave for a week until completely set.
    7. Remove formwork.

    In the same way, you can fill in the frame of the fireplace made of concrete, and install a metal bowl inside. The space between it and the walls of the hearth is filled with gravel or stones. Outside and above, the concrete frame can be lined with decorative materials.

    A hearth in the form of a round bowl is made in the same way, only the frame for pouring the solution is assembled from rings of different diameters. After the concrete has hardened, they are cut.

    Notice! After the concrete has hardened, the hearth is not used for at least 2-3 weeks. Otherwise, the walls may crack from fire

    .

    Brick outdoor hearth.

    For those who are not in favor of excessive creativity, it is easiest to use bricks to create a hearth.

    We lay out the required size of the fireplace from the brick, mark the contours and dig a hole to the height of the brick. We cover the contours of the hearth, pouring gravel to the bottom. Tip: if the walls at the pit are made slightly tilted outward, then the structure will turn out to be more stable.

    Having minimally decorated the upper part of the hearth, you will get a cozy and beautiful fireplace in the country. You can put a metal tripod in the hearth and cook kulesh. For meat lovers, you can install a simple spit and cook the whole bird on a spit.

    Beautiful ideas for inspiration

    To fit the fire zone into the landscape design of the site, rely on natural elements: stone, wood. In this design, the space will look as natural as possible.

    In the previous photo, the site is open, but if you wish, you can make it more intimate, for example, enclosing it with an original fence in a circle.

    The last piece of advice concerns the arrangement itself. Instead of ordinary benches, for example, you can put a swing. And the fire pit itself is located near the barbecue area or the summer kitchen - this way you will simultaneously unite the spaces and separate the place of cooking from the rest.

    As you can see, setting up a fire pit is easy. But this simple element adds points to the design of any site: whether it is an ordinary cottage or an elite country house.

    Where can I get inexpensive materials for landscaping

    In order to carry out the landscaping of the site at minimal cost, building materials are bought at a low cost. In most cases, these are used bricks or building blocks, both. For some materials, you can not pay money at all - this is what is stored in sheds and pantries, taking up useful space.

    Flowerbeds and beds from used materials

    Lumber left after the construction of a residential building is used to create raised beds for growing strawberries, herbs, herbs, vegetables. Boards of the same width are selected, a rectangular box is knocked down right on the ground, filled with fertile soil, and any garden crop is planted.

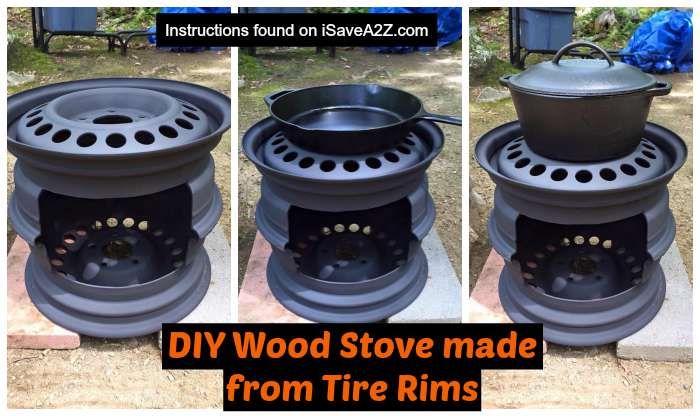

    Fireplace: Barbecue from an old car disk

    If you don't want to stack bricks, you can use the simple and proven way to make a fire yourself, which I mentioned earlier - use an old car disk (stamping, not casting!). It is ideal for this - round shape, high walls, air intake holes and ease of installation. You can either bury it in the ground, arranging a fire pit flush with the ground, or set it up and overlay it with bricks on top to give it a more attractive look.


    Making a hearth out of a car disc

    By the way, not only a hearth can be made from the same disc, but also a brazier - on steel legs, so that it is more convenient to follow the cooking kebabs, grill (by adding a grate of the right size on top), barbecue and much more other.

    And if instead of a car disk in your garage or basement you find some other metal bowl or other container, you can also use it to make a hearth in your summer cottage. By the way, an old steel basin will also do for this - who else has kept such from Soviet times?


    We make a hearth on the site from a metal bowl

    Above-ground location of a fire place in the country

    Before equipping a fire place, it is necessary to carefully consider the territory of its location. The hearth should be located away from garden trees, a country house and other outbuildings. The optimal distance to the house and buildings should be at least 3 meters, and at least 4 meters to the crowns of the nearest trees. Also, do not make out a place for a fire in a lowland or on a hill. It is better to choose the golden mean.

    After the place for the dacha hearth is determined, the site should be prepared: remove debris, plant roots, level the surface of the site and mark the place for the hearth itself. As a rule, the hearth is made round in shape, with a diameter of about a meter. It is necessary to remove a layer of turf from the intended area. This is necessary so that later the entire site can be laid out with paving slabs or stone. In the center of the site, the location of the hearth itself is marked. To decorate the fire, you can use the iron rim. In the place where it is planned to install a metal rim, a small layer of soil is removed, the bottom of the resulting recess is leveled and the rim is installed.

    If the structure has very thin walls, it will not be able to provide the necessary strength during operation. Therefore, along the entire area of ​​\u200b\u200bthe outer wall, concrete blocks or stones are laid out in several rows. Paving slabs or granite cobblestones are also suitable for this. For masonry, it is better to use a special masonry mortar. Clay mortar is more suitable for laying natural stone.

    To prevent the campfire site from becoming a pool of water after heavy rain, the roof needs to be cut out. A suitable piece of sheet metal can be used as a material.

    Hearth above ground

    Fire place

    Note. The word "bonfire" in most cases means a place for a fire in the country or in another place, made specifically for this purpose, or left after the combustion of fuel. Also, this word can mean a large fire.

    What is it for

    Fire place for barbecue

    Open fire in a suburban area, as a rule, is bred for three reasons:

    • firstly, it is the usual disposal of unnecessary things and garbage;
    • secondly - for aesthetic purposes, that is, to just sit by an open fire in the fresh air;
    • thirdly - for arranging a country barbecue or barbecue.

    Of course, safety will be in the first place and it does not matter at all whether there are country houses made of block containers, brick or wood around - there will always be a material that poses a fire hazard.

    Of course, if you are barbecued, you will use only wood as fuel, and it is also more likely that you will use wood for the aesthetic enjoyment of fire. But when burning garbage, different materials can get there.

    Therefore, you should make sure that explosive objects, such as paint and aerosol cans, do not get into the fire - the instruction warns of their explosiveness. You should also avoid burning rubber and plastic (bottles, bowls, toys, and so on) - rubber will smoke, settling soot flakes in neighbors' areas, and polymers emit toxins when burned.

    Arrangement options

    Outdoor above-ground hearth

    • First of all, in order to equip a place for a fire, you will have to find a good place, which should be located away from the residential building, outbuildings and crowns of sprawling trees.
    • Also, don't use the lowest or highest points of your site - it's best if you settle for something in the middle and the site is open and well visible.

    For the arrangement of such suburban areas, a round shape is most often used, but this is by no means the main requirement - it can also be:

    • square;
    • rectangle;
    • and even a triangle.
    Aboveground hearth
    • Usually made with decorative trim. Although a metal rim can be inserted into the middle, its walls must be at least 1-1.5 mm, otherwise it will burn out. That is, a metal bowl will not work here.
    • You can also install a concrete circle in the center, which you will then finish with paving slabs, only as an adhesive you will need special mixtures with fireclay additives.
    • You can also lay out the walls of fireclay (refractory) bricks, use ordinary clay with the addition of fireclay powder to bind it.
    • Or you can use granite cobblestones instead of bricks, which will be enough to be well fixed in the ground or in a concrete screed, and small gaps between them do not need to be sealed at all - this will not interfere with combustion.
    • Walls and the site itself can be finished with any facing materials that are not subject to melting and are not afraid of open fire.
    Buried hearth

    The recessed hearth that you see in the photo above is very similar in technological design - similar materials are used there, and the section of the fireplace itself does not differ from the above-ground version. The main difference is the aesthetic perception of the object and personal preferences.

    Buried hearth in section

    For arranging a buried fireplace:

    • A pit 30-40 cm deep is dug and a pillow 15-20 cm high is poured into it from crushed stone of fine fraction or from granite screenings (some use fine fraction expanded clay for this purpose).
    • The walls can be made of refractory bricks, hewn or simply flat granite, using clay with fireclay powder for bonding.
    • You can also go the simpler way and lay a concrete ring in the pit - the main thing is that the upper part of the walls be strictly horizontal. The bottom can be concreted.
    The easiest way to make a fire pit

    Steel barrel grill

    The easiest way to make a fire pit in your country house is to use an old steel barrel. Its walls should not be rusted, otherwise the metal will burn out very quickly.

    Two options are possible here:

    1. The first is when you simply cut a circle 30-35 cm high and drive it into the ground, leaving 15-20 cm above the ground.
    2. The second, when a grate is welded 15-20 cm from the top, and a blower is cut below to create traction. From above, you can weld the grill, as shown in the photo.

    If your suburban area is not electrified, then you will not feel the full comfort of rest even if there is a romantic fire. But you have a way out - this is renting a diesel generator for a summer residence.

    Beautiful ideas for inspiration

    To fit the fire zone into the landscape design of the site, rely on natural elements: stone, wood. In this design, the space will look as natural as possible.

    In the previous photo, the site is open, but if you wish, you can make it more intimate, for example, enclosing it with an original fence in a circle.

    The last piece of advice relates directly to the arrangement. Instead of ordinary benches, for example, you can put a swing. And the fire pit itself should be located near the barbecue area or the summer kitchen - this way you will simultaneously unite the spaces and separate the place of cooking from the rest.

    As you can see, equipping a fire pit is easy. But this simple element adds points to the design of any site: whether it is an ordinary cottage or an elite country house.

    Fireplace and design

    Living fire is a decoration of any area, but, of course, the type and model of the hearth must match the style of the house and landscape.

    Metal, concrete fire pit in the form of a bowl, sphere, cone or glass will suit any typical building with a modern exterior.

    Sometimes a hearth of a traditional type is combined with a stone fence, imitating, with the help of textured masonry, the outlines of a fireplace.

    A fire pit made of minimally processed cobblestones, laid out with deliberate carelessness, will be a good decoration for a natural garden style area. Instead of armchairs, picturesque boulders, stumps and logs are located around such an emphatically natural, eco-friendly fire pit.

    Rough open stone hearth with massive wood furniture around it is the perfect addition to a chalet and alpine style garden.

    With a Scandinavian-style house, a round or square fireplace made of stone, brick, slabs is combined. In this case, the main thing is the conciseness of the object, the clarity of its lines. Hearths in Scandinavian areas are often combined with a table or bench, as well as shelves for firewood, which is consistent with the ideas of minimalism.

    For techno, loft, high-tech styles, designers recommend gas fires decorated with smooth, polished concrete. They can be either flush with the platform or of a modular, protruding type. The same styles are characterized by integrated fireplaces - built into a retaining wall, a semicircular bench or into the side of the pool.

    Gas fires, by the way, are interesting in that the filler used to fill containers with burners can be an independent decorative element. It is enough to collect stones of various shapes and shades or find colored glass. And if the site with a gas fire is provided with artificial, luminous stones, you will get a magnificent space in the style of modern modernity.

    Finish off by decorating the garden furniture next to the hearth with appropriate textile details. For example, multi-colored pillows and fluffy blankets will look cute and touching on brutal wooden benches in a homely way. And for a site in an industrial spirit, small rugs or mats made of artificial fiber are suitable.

    Heating of the territory from the hearth on the site. How to make a fire pit out of brick or curb stone - ideas and tips. Creation of a deepened fireplace

    The recreation area equipped at the dacha will become your favorite place to spend time near the fire with friends and relatives.

    If you like to spend time in the country, then undoubtedly, in your suburban area there should be an equipped campfire site . How to make a place for a fire in the country with our own hands, we will tell in this article. We share our experience in the arrangement and design of the hearth. In our master class we will tell, how to make a fire place in the country with your own hands .

    Before us is a finished recreation area with a fire pit. Before you get started, you will need the following building materials and tools.

    DIY materials and tools for building a fire pit:
    • Cement: 5-6 bags
    • Heat-resistant adhesive for stoves and fireplaces: 5-6 bags of
    • Building reinforcement 8-10 mm: 10 pieces of 60 cm.
    • Sandstone: 750 kg
    • Refractory bricks: 60 pcs.
    From the tool you will need:
    • Safety goggles
    • Watering hose
    • Wheelbarrow
    • Stone chisel
    • Hammer
    • Shovel
    • Gloves
    • Patience

    Before you start the main work, you need to choose the right place for a fire. Try to place a recreation area with a hearth away from residential buildings. Remember that the smoke from the fire should not enter the living quarters. If there are neighbors living around your property, keep in mind that they may also be uncomfortable with the smoke. The best solution would be to coordinate with your neighbors the future place for the fire.

    Firepit dimensions

    Once a site has been selected, the dimensions of the campfire site must be determined. In our master class, a campfire site in the country (see example in the photo) has the following dimensions.

    Hearth diameter 1.5 m.
    Height 45 cm.

    The dimensions of the hearth can be changed as desired. Before starting construction, you can make a preliminary calculation of the future hearth.

    So, we chose a place for a fire in our summer cottage. They took measurements and made markings with the help of a simple device. To make an even circle, we will use a homemade compass, and for its manufacture you will need: a stick (you can use a pipe or fittings) and a rope.

    Determine the center of the fire pit and drive in a stick to which a rope is tied. Everything, our compass is ready. Important! The size of the rope must be equal to the radius of the hearth.

    Tip! To mark the area for the hole, use a paint spray can that can be tied to the end of a rope. .

    Having made the markup, we determined the place for the foundation of the hearth. Armed with a shovel, we begin to dig a hole. In order for the campfire site to serve you for more than one summer season, we advise you to first determine the depth of soil freezing. Professional builders advise digging a foundation hole at least 9 deep.0 cm. Also, you need to take into account climatic conditions and humidity.

    After the foundation pit is ready, we proceed to reinforce the foundation and pour it with concrete.


    The mixed concrete mortar must be poured into the prepared hole, this must be done slowly, let the mortar fill all the cavities. When the work on pouring the foundation is completed, it is necessary to level the surface with a wooden block or a special spatula. Make sure the concrete mix is ​​even.


    Wait for the mortar to dry completely. While the concrete mixture hardens, you can start sorting the stone. Distribute it in such a way that the big ones are in one pile, the flat ones in another. Decide which stones you will use to base the hearth.

    Tip! Before you start laying stones on the glue, make a test laying out of the first row. When choosing stones for the first row, give preference to an even and flat stone that does not have bumps and bends. Experienced craftsmen, before laying out the stones, process them with a special tool. Giving the base a flat shape.


    When foundation is dry, you can start laying the first row of stones using the Tetris principle. Important! Stone blocks should be in contact with each other as tightly as possible.

    Let's admit that this is the most responsible and slow work, which can take a lot of time. Advice - be patient, it depends on this stage of work how the hearth will look like in a summer cottage made by yourself.


    Mix the amount of mortar required for the job, laying out a new batch of stone. The main thing is to take your time and mix the required amount of mortar, this will help you avoid wasting expensive material.

    Tip! To avoid damage to the lawn and the site, try to do all the work in one place.


    The task of laying stone will become more difficult with the new level. Ideally, the upper edge of the laid out hearth should be at the same level, because such a hearth looks beautiful. Aligning the last row of stone is not easy. Use a mallet and hammer, and if you have a power stone tool, the task of leveling the top edge of the fire pit will be much easier.

    The photo above shows the penultimate row of the fire pit, inside which refractory bricks are laid out, fastened with a special mortar.

    When laying stone and brick, craftsmen are advised to leave small gaps for ventilation. Based on my own experience, this can not be done, since the size of the fire pit already provides air access.

    When the stone and brick work is completed, the bottom of the pit must be filled with fine gravel. As you use it, it can be easily washed or replaced with a new one.

    So, the do-it-yourself hearth made in the country is ready, and the next step will be to check it.


    Fire place, hearth in the country (photo)

    As can be seen from the photo, the grass around the hearth is heavily trampled. The next step is to arrange the space around the fire pit.

    To do this, we take a homemade compass, and determine the size of the area around the hearth. When the markup is done, we take the shovel and remove the sod around the pit (see photo below).

    Do not forget to prepare in advance the place where you will transfer the removed sod and earth. When the sod around the firepit has been removed, deepen the space to the required depth, but remember that the depth must be at least 8 cm.


    Fire place, hearth in the country (photo)

    Tip! When this stage of site arrangement is completed, we recommend laying geotextile material on the bottom. Thus, you will avoid contact between soil and gravel. Do not forget about climatic features and rainy weather.

    After the site preparation is completed, it must be backfilled with fine gravel. Try to choose the right combination of stone color and gravel area to be filled.

    If you don't want to use gravel, it can be any other material. For example: garden tiles, small river stones, paving stones, etc. Gravel stone is one of the budget options for arranging a fire pit and can be replaced at any time with a more suitable one.

    Fire place, hearth in the country house (photo)

    So, when all the work on the construction of the campfire site and the surrounding area is ready, you can invite friends and have a party. Before that, do not forget to stack firewood next to the hearth so that they do not have to be carried from the back of the site.

    If you want the fireside to look cozier, plant suitable plants and shrubs around it. Red, orange and yellow colors will look great.


    As can be seen from the photo, the stones left from the construction found their use and a small path was laid out with them. Now you can comfortably sit by the fire and spend unforgettable evenings to the sound of firewood crackling in the hearth.

    In any case, in the countryside in the warm season there will be some garbage that needs to be burned, or it will simply be unnecessary things. And here it becomes important how to equip a place for a fire in the country so that the wind cannot blow sparks, which can cause a fire.

    This issue is most relevant in the area where wooden buildings prevail (even if not at home, but utility rooms), where open fire is a particular danger in windy weather. Making a protective structure in this case is not very difficult - we will talk about it below and show you a video in this article.

    Fire place

    The word "bonfire" in most cases means a place for a fire in the country or in another place, made specifically for this purpose, or left after the combustion of fuel.
    Also, this word can mean a large fire.

    What is it for

    An open fire in a suburban area, as a rule, is bred for three reasons:

    • firstly, this is the usual disposal of unnecessary things and garbage;
    • secondly - for aesthetic purposes, that is, to just sit by an open fire in the fresh air;
    • thirdly - for arrangement.

    Of course, safety will be in the first place and it does not matter at all whether there are country houses made of block containers, brick or wood around - there will always be a material that poses a fire hazard.

    Of course, if you are barbecued, you will use only wood as fuel, and it is also more likely that you will use wood for the aesthetic enjoyment of fire. But when burning garbage, different materials can get there.

    Therefore, you should make sure that explosive objects, such as spray cans and aerosols, do not get into the fire - the instruction warns of their explosiveness. You should also avoid burning rubber and plastic (bottles, bowls, toys, and so on) - rubber will smoke, settling soot flakes in neighbors' areas, and polymers emit toxins when burned.

    Arrangements

    • First of all, in order to equip a place for a fire, you will have to find a good place, which should be located away from a residential building, outbuildings and crowns of sprawling trees .
    • Also, do not use the lowest or highest points of your site. - it is best if you stop at something in the middle and the site is open and well viewed.

    For hearths, the round shape is most commonly used, but this is by no means a basic requirement - it can also be:

    • square;
    • rectangle;
    • and even a triangle.

    The main thing is that its cross section in the narrowest place where the firewood will burn is at least 40 cm. For a circle, a diameter of 80-100 cm is usually dispensed, although this is not something mandatory.

    Above-ground hearth
    • Usually made with decorative trim. Although a metal rim can be inserted into the middle, its walls must be at least 1-1.5 mm, otherwise it will burn out. That is, a metal bowl will not work here.
    • You can also install a concrete circle in the center, which you will then finish with paving slabs, only as an adhesive you will need special mixtures with fireclay additives.

    • You can also lay out the walls of fireclay (refractory) bricks, use ordinary clay with the addition of fireclay powder to bind it.
    • Or you can use granite cobblestones instead of bricks, which will be enough to be well fixed in the ground or in a concrete screed, and small gaps between them do not need to be sealed at all - this will not interfere with combustion.
    • Walls and the site itself can be finished with any facing materials that are not subject to melting and are not afraid of open fire.

    The recessed hearth that you see in the photo above is very similar in technological design - similar materials are used there, and the cross section of the fireplace itself does not differ from the above-ground version. The main difference is the aesthetic perception of the object and personal preferences.

    For arranging a buried fire pit:

    • A hole 30-40 cm deep is dug and a pillow 15-20 cm high is poured into it from crushed stone of fine fraction or from granite screenings (some use fine-grain expanded clay for this purpose).
    • The walls can be made of refractory bricks, hewn or simply flat granite, using clay with fireclay powder for bonding.
    • You can also go the simpler way and lay a concrete ring in the pit - the main thing is that the upper part of the walls be strictly horizontal. The bottom can be concreted.
    The simplest version of the hearth

    The hearth for a fire in the country is rightfully considered one of the most important accessories of the yard. Most owners of land allotments simply cannot imagine life without evening gatherings by an open fire, when all things are over, peace and grace reign on the street. A competently and thoughtfully designed open hearth is a practical multifunctional structure that can last for decades. Today, making a hearth in the garden, people pursue not only utilitarian goals. Country allotment is used to relax from the hustle and bustle of the city. The dacha hearth in such cases becomes a spectacular element of landscape design. Using modern technologies and non-standard solutions, hearths for cauldrons, barbecues and skewers can be made on the lawn, veranda and even in a closed gazebo. Consider how to make a hearth in the country with your own hands so that it is beautiful and safe.

    When planning a building, keep in mind that an open fire poses a serious fire hazard. The fire can spread throughout the area. Based on this, the choice of the location and design of the fireplace on the street must be approached very responsibly.

    1. Barbecues, fireplaces, hearths and other structures, the operation of which is associated with an open flame, must be built at a distance of at least 10 m from wooden buildings. Such structures include barns, fences, livestock pens, and residential buildings.
    2. Fireplace in the country should be built on a hill. To protect the yard hearths from storm and melt water, it is necessary to consider the arrangement of the drainage system. Drainage is also needed to keep dry the area that surrounds the open hearth in the country.
    3. The round hearth is considered the most practical and easy to use. Firewood burns completely and evenly in it, creating a constant steady heat. The absence of corners prevents the accumulation of dirt and the development of mold.
    4. Starting to build a fire pit or barbecue with your own hands, you need to make sure that there are no communications under and above these structures. Do not build a garden hearth next to large trees. Their roots can destroy the masonry, and the foliage can catch fire under the influence of an open flame.
    5. If you plan to install a hearth in the gazebo, then its floor, walls and roof must be made of non-combustible materials. It can be tiles and steel panels. A gazebo with a hearth in the center looks exotic and unusual, but you need to think carefully about the issue of smoke removal.

    To make camping by the fire even more pleasant and comfortable, it is advisable to arrange a platform around the fireplace. It will not be superfluous to carry out paving with tiles or stone, install comfortable furniture and a canopy.

    How to choose a hearth design

    Having decided on the construction site, you should choose the type of fireplace. According to the location relative to the ground level, the foci are divided into surface and deep. Each of these design solutions has its pros and cons.

    Thus, surface bonfires do not require excavation of a foundation pit, they are not threatened by flooding with storm waters. This type of hearth can even be placed on the terrace, after taking measures to protect its floor from sparks. A barbecue hearth rising above the ground can be beautifully and interestingly arranged, making it the highlight of the courtyard landscape.

    A recessed hearth is good because it does not need to be designed and adapted to the design style of the site. The only difficulty will arise with the supply of air for the fire. This problem can be solved by arranging an underground duct or by manipulating the laying of logs.

    Let's dwell on some ideas with which you can build an original and practical hearth with your own hands.

    Making a stone fireplace

    It is advisable to use natural materials or their imitation for arranging a summer cottage. The brilliance of glass and steel is appropriate only in the office and city apartment. A hearth made of stone will organically look in any environment, without standing out against the background of greenery or snow-covered land. For work, you need to use only a special stone that is resistant to high temperatures. An ordinary cobblestone will immediately crack from the heat already at the first firebox. The choice is to stop on granite. It is better to purchase already chopped stones with which roads are laid.

    The following tools and materials are required for work:

    • bayonet shovel;
    • Bulgarian;
    • level;
    • mallet;
    • trowel;
    • clay;
    • sand;
    • buckets for water and mortar;
    • gravel;
    • rags.

    Making a stone fire is carried out in the following sequence:

    1. Tracing the terrain. A circle, square or rectangle is outlined, from which the top layer of soil with sod and plant roots is removed.
    2. Arrangement of the base for paving stones. A ditch 30-35 cm deep is dug. Its bottom is leveled and compacted. A mixture of gravel and sand is poured into the trench. Another ramming is underway.
    3. Sand and clay mortar being mixed. It is laid out on a well-dampened sandy base. The layer thickness must be at least 10 cm. Pipes are installed to supply air to the furnace space. It is better to use steel pipes with a diameter of 50 mm. They are easy to clean after becoming clogged with ash and debris, and their service life is practically unlimited.
    4. Paving stones are laid on the mortar. The grooves between the stones are filled with clay mortar. Surplus is collected with a trowel and rags. Large openings can be closed with medium pebbles.
    5. Aligns the inner and upper part of the hearth. For this, the clay mortar already used in the masonry is used. It is advisable to polish the inside of the firebox to a shine. So it will be much more convenient to clean it of soot.

    Finished fire pit can be finished with stone tiles cut into straight or curved strips. This will not only decorate the hearth for the cauldron, but also expand its functionality. It will be possible to put mugs and plates on the shelf. Their contents will remain warm for a long time even in the winter cold.

    Stone fireplace does not require any maintenance. After the first furnace, the clay hardens and crystallizes. She will no longer be afraid of moisture. Any, even the most stable dirt is easily washed off from granite. In order for the hearth to shine with cleanliness, it is enough to sometimes treat it with soapy water.

    Building a hearth with bricks

    It should be noted right away that only fireclay (refractory) bricks should be used to create a firebox. The usual material left after the construction of the house will withstand no more than one season. Under the influence of heat, a standard brick cracks, in autumn water enters the cracks, and in winter the masonry collapses from expansion in the ice grooves.

    In order to build a fire pit for a cauldron out of brick, you will need:

    • grinder;
    • tape measure;
    • oil level;
    • bayonet shovel;
    • rotary hammer with mixer;
    • trowel;
    • set of steel spatulas;
    • abrasive mesh;
    • facade plaster;
    • heat resistant powder coating.

    A brick hearth is erected in the following sequence:

    1. Arrangement of a reliable foundation. Brickwork can have a mass of up to a ton. To prevent subsidence and destruction of the walls, a strong foundation is needed. The depth of its occurrence should be at the level of soil freezing. You can save on material and time if you use a factory-made reinforced concrete slab as the base. If there are problems with its delivery, then you can cast the slab yourself using rebar, sand, crushed stone and cement.
    2. Laying out the walls of the fireplace. This is done in compliance with the alignment of the bricks vertically and horizontally. For a bunch of stones, a mixture of sand, clay, water and cement is used. The laid out walls should stand at rest for at least three days for the solution to completely solidify.
    3. Hearth wall decoration. From the inside, it is simply coated with a mixture of clay and sand. Appearance requires a more thoughtful approach. Outside, the walls of the firebox are finished with facade plaster, laid out with heat-resistant ceramic tiles or small stones.

    To give the brick hearth more strength, you can lay out stones around the perimeter of a pre-welded metal frame.

    Manufacture from metal structures

    Each household always has a lot of improvised materials that can be used in the improvement of a summer cottage. The solution that lies on the surface is the construction of fire pits from discs of various origins. An excellent option is to use a rim from the wheels of heavy vehicles. These products are made of thick steel, which is resistant to mechanical and thermal stress.

    Another interesting solution is the fireplace from the washing machine drum. But its adoption must be treated quite carefully. The steel in the drum is very thin, it will quickly burn out from exposure to an open flame. The drum can only be used as a template for laying heat-resistant material.

    To make a hearth out of a disk, you need the following:

    • bayonet shovel;
    • level;
    • hammer;
    • manual rammer;
    • trowel;
    • fireclay bricks;
    • clay and sand;
    • facing material.

    Steel rings are highly resistant to external pressure. Of these, it is advisable to make foci of a buried type. Iron is perfectly cleaned of soot and grime, and has been exposed to dampness for decades without visible damage.

    Construction of fire pits from steel rings is carried out in the following sequence:

    1. Excavation excavation. It should be made 10-15 cm wider and deeper than the planned penetration of the steel product. The bottom of the pit is cleared of large roots, leveled and rammed.
    2. Geotextiles are laid at the bottom of the pit, fine gravel and sand are poured. This mixture is well wetted, leveled and compacted.
    3. Steel ring is being installed. It is leveled, sand is poured into the gap between its walls and the pit. As the backfill sand is wetted and rammed.
    4. Finishing material is laid out along the iron rim. It is best to use fireclay bricks for this. You need to fasten it with clay mortar.

    The final step is to create a ledge along the top edge of the masonry. It will not only make the laying more convenient, but also hide the internal steel walls.

    It is impossible to imagine a cozy house outside the city without barbecues or confidential gatherings with friends and relatives near a live fire. This is both relaxation and a kind of unity with nature. It is difficult to build a fireplace inside the premises, but it is not so difficult to arrange a hearth for a fire in the country house outside. It is enough to have primary skills in construction to make it not only convenient in practice, but also beautiful.

    A cozy place for a fire

    Having not managed to purchase a plot for a country house or just having built it, the happy owners are thinking about where to arrange a fire pit in the country so that it would be beautiful, with a conveniently equipped recreation area around, and at the same time comply with the rules of the fire department security.

    The dacha is actually the heart of the house, where in the evening people gather to admire the sparks of fire and sing songs with a glass of wine, and during the day they grill kebabs and insist on delicious tea, so you need to choose a place for it very carefully, especially since it will be redone later difficult.

    Preparation and first circuits

    You can make a fireplace in the countryside either by plunging it deep into the ground, which is a more difficult option both in terms of finishing and providing oxygen supply, or by creating an above-ground structure. There are a lot of options, but first of all you need to make sure that the trees and the house, as well as any buildings, are at least 4-5 meters from the outer boundaries of the hearth.

    You can not place it on a hill or below the level of the garden and the house, it is best to choose a site in the middle of the site or be guided by the rule of the golden section - two thirds from the main entrance. You also need to consider which side of the site the wind most often blows, and how close to the fire the furniture will be for relaxation. It is best to put it in 70-90 cm from the outer circle of the focus. Materials needed:

    • spade and spatula;
    • gravel, concrete pour, cement;
    • fireplace adhesive, sand;
    • bricks, stones of various sizes;
    • tape measure and small spatula.

    It is better to immediately clean up the area: uproot the roots of trees, remove large bushes, stones, level the surface. Having decided on the place, you need to draw the contours of the future bonfire. Usually it is made about a meter in diameter and the top layer of turf is removed from the site, so that later masonry or tile can be laid there without any problems for beauty and safety.

    Summerhouse tricks: useful tips for DIY landscaping

    Classic masonry

    An old metal rim from a tractor or a large aluminum basin with high sides, from which the bottom must be cut, will serve as a frame. Cast concrete blocks or flat stones with a thickness of at least 15 cm are laid out along its outer line, in four blocks. To fix the upper row of masonry, a special mortar with refractory components is used, and cement is used to fill the gaps between the bricks. You can also use special glue for the fireplace. The most commonly used materials are:

    • natural stones - granite, marble, cobblestone;
    • large pebbles, boulders;
    • concrete and paving slabs;
    • cinder block and regular bricks.

    If natural stones are used, with the exception of shell rock and limestone, clay mortar is also acceptable. Homemade bricks work well. A metal or steel base will protect them from overheating. Fine-grained gravel is poured to the bottom for drainage. Thus, the depth for the fire pit is 30-40 cm, and the gravel will take at least 15 cm. The last layer of masonry can be made from decoratively decorated stones to create a unique stylized exterior object.

    The shape is most often chosen round, it is most convenient, and in order not to get a small pond instead of an open hearth after heavy rains, it is worth building a metal cover. If you make it to order, an interesting shape with stylized ornaments or decorations, then this will add beauty to the design.

    Different ways to tame a fire

    There are many options for creating different types of fire in the country with your own hands. It doesn't have to be round. It will be even easier for beginners to create a square outline, ordinary concrete blocks and special glue are suitable for this. You can use concrete pouring or get by with gravel, but in any case, everything will work out. So the shape and appearance is a matter of personal taste and choice:

    The use of shrubs in garden planning

    Any carefully designed fire pit can be ordered with a stone top that frames it around the perimeter. On such a fire table, you can put plates with food and cups of coffee and tea, providing constant heating, besides, it's just beautiful and convenient. You can also order beautiful forged hemispheres for the top decoration of the fire. Cups or spheres with carved drawings are popular: the globe, the ocean with dolphins, or the forest with wild animals. Illuminated by tongues of fire, they look like holograms or animated paintings.

    Relaxation area

    It is very important not only to create a hearth, but also to design the area around it, arranging everything nice and cozy. Of course, it's easiest to just fill it with concrete or fill it with gravel for fire safety reasons, but it's worth getting a little more creative and decorating the fire pit as follows:

    A fire in the country is a special pleasure that is not available to us in a city apartment. Having made an outdoor hearth with your own hands, you can enjoy the play of fire more often, cook something tasty on the grate by the hearth, or just soak up the warmth on cold evenings.

    In order for the fire to look harmonious in the garden, it is better to arrange a permanent place for it, which would provide for proper fire regulations and provide comfort.

    And, although the outdoor hearth in the photo may look absolutely luxurious, its construction does not require a significant investment of time or materials.

    You may well choose for yourself an option that you can implement in a couple of days off.

    How to make a stone outdoor hearth.

    In order to make an outdoor hearth with natural stone trim, first mark out the kennels of the hearth and pour a small concrete cushion under the masonry.

    Masonry will consist of two layers. The inner layer is brick and the outer layer is made of natural stone.

    The top of the hearth can also be finished with stone.

    In order to use the fireplace as a brazier, provide a grate for it in accordance with the size of the hearth.

    Such a beautiful place for a fire can be placed on the terrace in front of the house, where you can spend really unforgettable evenings in the country.

    Concrete block fireplace.

    In fact, the simplest outdoor hearth can be built from ordinary concrete blocks.

    In order to protect the soil from fire as much as possible and to make it easier to clean the hearth, it is better to place concrete blocks on a brick platform.

    If the top of such a hearth is decorated with natural stone, it will look quite respectable.


    By placing the fire pit next to the summer kitchen and gazebo, you will have another wonderful seating area in the garden.

    Hearth made of semicircular curb and paving slabs.

    Concrete blocks are produced not only in the form of rectangles - semi-circular concrete curbs are usually used to protect trees.

    These concrete blocks are perfect for creating a small outdoor hearth.

    If you can't find semi-circular blocks, pay attention to paving slabs. It turns out that using it as bricks, you can also make a fire pit for a summer residence.

    Brick outdoor hearth.

    For those who are not in favor of excessive creativity, it is easiest to use bricks to create a hearth.


    We lay out the required size of the fireplace from the brick, mark the contours and dig a hole to the height of the brick. We cover the contours of the hearth, pouring gravel to the bottom. Tip: if the walls at the pit are made slightly tilted outward, then the structure will turn out to be more stable.

    Having minimally decorated the upper part of the hearth, you will get a cozy and beautiful fireplace in the country. You can put a metal tripod in the hearth and cook kulesh. For meat lovers, you can install a simple spit and cook the whole bird on a spit.

    How to make a campfire site in the country.

    To fit the fireplace into the overall design of the garden, you can make a special platform for it.

    Such a place for a fire will be more cozy and comfortable. the stone border can be used as a bench, and the smooth shape of the platform will add an elegant touch to the landscaping of the entire garden.

    Outdoor hearth from improvised materials.

    For those who like to use improvised materials, there are also beautiful options for an outdoor hearth.


    For example, you can make such a beautiful hearth out of an old basin and the remains of stone and metal.

    In fact, any solid metal will do for the inside of the hearth.

    This metal can be a tank from a washing machine.

    It is enough to weld the legs to it for its functioning.

    And you can add a minimum brickwork. A little work, but a noticeable difference.

    Sometimes a fire pit is placed in a recess on the site - this technique is used for a windy or noisy area, this creates a calmer and quieter atmosphere around the fire.

    Metal outdoor hearth.

    It is not necessary to use the remains of household appliances for the fire bowl.

    You can simply buy a sheet of galvanized metal and weld a simple structure for the hearth out of it.

    The only disadvantage of this design is that its walls are seriously heated and it is necessary to isolate the hearth from flammable surfaces.

    Outdoor hearth from a car disk.

    Therefore, it is better to cover the metal hearth with bricks or decorative stone from the outside.

    A disk from a tractor wheel was taken as the basis for this hearth.

    How to make a hearth out of concrete with your own hands.

    For an outdoor fireplace made of concrete, it is necessary to make a formwork in accordance with the dimensions of the fireplace you have chosen.


    Learn more
