How do car tire pressure monitors work


WHAT IS TPMS & HOW DOES IT WORK?

The purpose of the tire pressure monitoring system (TPMS) in your vehicle is to warn you that at least one or more tires are significantly under-inflated, possibly creating unsafe driving conditions. The TPMS low tire pressure indicator is a yellow symbol that illuminates on the dashboard instrument panel in the shape of a tire cross-section (that resembles a horseshoe) with an exclamation point.

That indicator light in your vehicle has a history. It’s a history rooted in years of uncertainty about proper tire pressure and many serious car accidents that might have been avoided had drivers known their air pressure was low. Even now, it’s estimated that a substantial number of vehicles hit the road each day with underinflated tires. However, proper tire maintenance with the aid of a TPMS can and does help prevent many serious accidents.

Before this indicator light became commonplace, knowing whether your air pressure had reached unsafe levels meant getting out, crouching down, and using a tire gauge. With few exceptions, this was the only pressure-checking tool ordinary consumers had at their disposal.

Then, in response to a surge in accidents due to underinflated tires, the US government passed the Transportation Recall Enhancement, Accountability, and Documentation (TREAD) Act. One of the outcomes of this legislation is that most vehicles sold in the United States since 2007 include a tire pressure monitoring system of some kind.

Not every TPMS works the same way. The illumination of the low tire pressure indicator represents the final step in the process of either an indirect TPMS or a direct TPMS.

INDIRECT TPMS: WHAT IS INDIRECT TPMS & HOW DOES IT WORK?

An indirect TPMS typically relies on wheel speed sensors that the anti-lock brake system uses. These sensors measure the rate of revolution each wheel is making and can be used by on-board computer systems to compare with each other and to other vehicle operation data such as speed.

Based on the rate of revolution of each wheel, the computer can interpret the relative size of the tires on your vehicle. When a wheel starts spinning faster than expected, the computer calculates that the tire is underinflated and alert the driver accordingly.

So, an indirect tire pressure monitoring system doesn’t actually measure tire pressure. It’s not electronically processing the same kind of measurement you might see with a tire gauge. Instead, an indirect tire pressure monitor simply measures how fast your tires are rotating and sends signals to the computer that will actuate the indicator light when something in the rotation seems amiss.

ADVANTAGES OF INDIRECT TPMS

-- Relatively inexpensive compared to a direct TPMS

-- Requires less programming/maintenance over the years than a direct TPMS

-- Less overall installation maintenance than its direct counterpart

DISADVANTAGES OF INDIRECT TPMS

-- May become inaccurate if you purchase a bigger or smaller tire

-- May be unreliable when tires are unevenly worn

-- Must be reset after properly inflating every tire

-- Must be reset after routine tire rotation

DIRECT TPMS: WHAT IS DIRECT TPMS & HOW DOES IT WORK?

Direct TPMS uses pressure monitoring sensors within each tire that monitor specific pressure levels – not just wheel revolution data from the anti-lock brake system.

Sensors in a direct TPMS may even provide tire temperature readings. The direct tire pressure monitoring system sends all of this data to a centralized control module where it’s analyzed, interpreted, and, if tire pressure is lower than it should be, transmitted directly to your dashboard where the indicator light illuminates. A direct tire pressure monitor usually sends all of this data wirelessly. Each sensor has a unique serial number. This is how the system not only distinguishes between itself and systems on other vehicles, but also among pressure readings for each individual tire.

Many manufacturers use proprietary technology for these highly specialized systems, so replacing a TPMS in a way that’s consistent and compatible with your vehicle will require an experienced, knowledgeable technician.

ADVANTAGES OF DIRECT TPMS

-- Deliver actual tire pressure readings from inside the tire

-- Not prone to inaccuracies because of tire rotations or tire replacements

-- Simple resynchronization after tire rotation or tire replacements

-- Batteries inside the sensors usually last for about a decade.

-- May be included in a vehicle’s spare tire

DISADVANTAGES OF DIRECT TPMS

-- More expensive overall than an indirect TPMS

-- Though simple, resynchronization may require costly tools.

-- Battery rarely serviceable; if the battery is drained, the whole sensor must be changed.

-- Proprietary systems make installation, service, and replacement confusing for consumers and auto shops.

-- Sensors are susceptible to damage during mounting/demounting

TIRE PRESSURE AND SAFETY

Although the methods may be different, both systems serve the same purpose and activate the same indicator light. Even though a TPMS can deliver accurate alerts when properly maintained, it’s not a replacement for manual air pressure checks, consider it just another item in your car maintenance toolbox.

CONTINUE YOUR JOURNEY

There’s never a good time for a flat. That’s why Bridgestone DriveGuard tires are masterfully engineered to keep you moving for up to 50 miles at speeds up to 50 MPH without disruption.

CONTINUE YOUR JOURNEY

There’s never a good time for a flat. That’s why Bridgestone DriveGuard tires are masterfully engineered to keep you moving for up to 50 miles at speeds up to 50 MPH without disruption.

See Details Find Your Fit

Tire Pressure Sensor: TPMS | Tires Plus

See why a TMPS is an important function of your vehicle and learn how to read it.

What is TPMS?

The Tire Pressure Monitoring System (TMPS) is an electronic system in your vehicle that monitors your tire air pressure and alerts you when it falls dangerously low.





Why do vehicles have TPMS?

To help drivers recognize the importance of tire pressure safety and maintenance, Congress passed the TREAD act, which requires most vehicles made after 2006 to be TPMS–equipped.

How does the Tire Pressure Monitoring System work?

There are two different types of systems being used today: Direct TPMS and Indirect TPMS.

Direct TPMS uses a sensor mounted in the wheel to measure air pressure in each tire. When air pressure drops 25% below the manufacturer’s recommended level, the sensor transmits that information to your car’s computer system and triggers your dashboard indicator light.

Indirect TPMS works with your car’s Antilock Braking System’s (ABS) wheel speed sensors. If a tire’s pressure is low, it will roll at a different wheel speed than the other tires. This information is detected by your car’s computer system, which triggers the dashboard indicator light.

What are the benefits of TPMS?

TPMS notifies you when your vehicle’s tire pressure is low or is going flat. By helping you maintain proper tire pressure, TPMS can increase your safety on the road by improving your vehicle’s handling, decreasing tire wear, reducing braking distance and bettering fuel economy.

Is my vehicle equipped with a Tire Pressure Monitoring System?

Your vehicle has TPMS if the "low tire pressure" warning light appears on your dash when the key is turned to the "on" position.

What should I do if my warning indicator comes on?

Check the air pressure in your tires and inflate any tire that is low (according to the manufacturer’s recommendation). When the tire is at the appropriate pressure, the indicator light should go off.

If necessary, replace the tire with your spare tire and visit your local Tires Plus store for needed repairs or replacement. They’ll check your vehicle’s tire pressure and perform a systems test on all of your tire sensors to diagnose the problem. Once our technicians address your vehicle’s tire needs, they’ll then suggest the proper maintenance to get you back on the road safely.

Why does tire maintenance with Direct TPMS cost more?

Direct TPMS equipped tires cost slightly more to maintain than non–equipped tires because proper care requires extra parts and labor. The valve service kit, which includes the valve core, cap, nut and o–ring (seal), must always be replaced when a tire is dismounted for service or replacement. A special TPMS tool and additional time are also needed to check and reset the sensor system.

{{storeNumber}}
{{storeName}}

{{link-icon "Call Us" mobileCallLink null "call-cta"}} {{link-icon "Directions" directions "_blank" "directions-cta"}}

{{address}}
{{city}}, {{state}} {{zip}}

{{#if activeFlag}} {{#ifCond mystore "or" myPreferredStore}} {{#ifCond storeType 'eq' "TPL"}}

My Store

*Call store for appointment {{phone}}

{{else}} {{#if onlineAppointmentActiveFlag }}

{{#if myPreferredStore}}

My Preferred Store

{{/if}} {{#if mystore}}

My Store

{{/if}} Schedule Appointment

{{else}}

My Store

*Call store for appointment {{phone}}

{{/if}} {{/ifCond}} {{else}} {{#ifCond storeType 'eq' "TPL"}}

*Call store for appointment {{phone}}

{{else}}

Schedule Appointment {{#if onlineAppointmentActiveFlag}} {{else}}

*Call store for appointment {{phone}}

{{/if}}

{{/ifCond}} {{/ifCond}} {{else}}

*Temporarily Closed Due To: {{temporarilyClosedReason}}

{{/if}} {{#if isMilitaryStore}}

*This location is on an active US military base. You may need military ID to access the location.

{{/if}}

Do you want to change your Preferred Store?

How does the tire pressure monitoring system work?

In America and Europe, a tire pressure monitoring system is an indispensable element of a car. Most likely, in the near future the same rules will be adopted in Russia.

But even if this system does not become mandatory, nothing prevents it from being installed in a car if the standard TPMS is not provided by the manufacturer: it is much better to find out in time that the wheel is flat than to wait for sad consequences.


TPMS (tire pressure monitoring system) monitors changes in tire pressure: even a small decrease in pressure in one wheel increases fuel consumption, worsens car handling and increases tread wear.

Now the pressure control system is divided into systems of direct (direct) and indirect (indirect) directions - we will tell you in more detail what it is.

How the direct system works

In direct measurement systems, sensors are placed on the valves of all wheels. They can be installed inside or outside. The sensor detects the level of pressure in the wheel and transmits information via radio to the control unit. Here, the accuracy of the readings plays a big role - you can even track a decrease in pressure by only 0.1 bar.


The "direct" system is more expensive than the "indirect" one, but it transmits information more accurately and faster. She, of course, has her own nuances: if you have to swap tires for even wear, then information about this will need to be entered into the control unit.

How the “indirect” system works

The so-called "indirect" TPMS is essentially a software extension for ABS: in its work it uses standard wheel rotation sensors. The system monitors changes in wheel speed and can diagnose tire pressure loss based on this information.

In this case, we are not talking about exact values, but only signals a significant deviation from the usual pressure - a significant deviation in this case is 0.3 bar, and a dangerous one - 0.5 bar.

"Indirect" systems may erroneously transmit a signal for a decrease in tire pressure also when:

  1. Uneven load distribution

  2. Frequent change from lane to lane

  3. slippage

  4. Sharp descents and ascents

But this can be adjusted, for example, by setting an alert delay. You can also reboot the system so that it adjusts to different tire pressures at startup.

TPMS from AIRLINE

The AIRLINE range includes 2 models of the "direct" system.

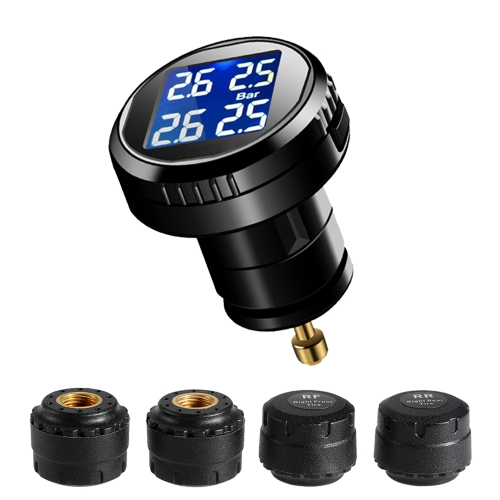

Tire pressure monitoring system TPMS BLACK ATP-MS-01 includes 4 sensors and a receiving module with a color LCD display. The sensors are mounted on the nipple of the car wheel, measure the pressure and air temperature in the tire and transmit information about the pressure value via radio to the display. When the tire pressure changes, the system transmits information with sound signals and displays it on the display. The pressure and temperature thresholds are set in the display menu. The system can be installed independently - it does not require special skills.


The receiving module is powered by the car's cigarette lighter socket, there is also a USB output for convenient parallel charging of the smartphone. The kit includes a receiver with a display, 4 external pressure sensors, 4 locknuts, a kit for mounting sensors, a warranty card and instructions. The operating temperature of the sensors is from -40°С to +125°С.

Tire pressure monitoring system TPMS wireless INSIDER SOLYAR ATP-MS-02 includes 4 sensors and a receiving module with a color LCD display. When the tire pressure changes, the system transmits information with sound signals and displays it on the display. The sensors are marked position, but the wheels can be swapped, everything is reconfigured. The operating temperature of the sensors is from -40°С to +125°С.


The kit includes a double-sided adhesive tape for fixing the receiving module on the dashboard of the car, it can also be mounted on a Velcro mat.

The receiver module is powered by a built-in lithium-polymer battery, which is charged by a built-in solar panel or a microUSB socket. The kit includes a receiver with a display, internal sensors, a USB-microUSB cable, double-sided tape, a warranty card and instructions. Tire fitting is required for installation, so we recommend contacting a service center for proper installation.

How tire pressure sensors work - DRIVE

  • News
  • Our test drives
  • Our videos
  • Site search
  • Full version of the site
  • Acura
  • Alfa Romeo
  • Aston Martin
  • Audi
  • Bentley
  • Bilenkin Classic Cars
  • bmw
  • Brilliance
  • Cadillac
  • changan
  • Chery
  • Chevrolet
  • Chrysler
  • Citroen
  • Daewoo
  • Datsun
  • Dodge
  • Dongfeng
  • D. S.
  • Exeed
  • FAW
  • Ferrari
  • FIAT
  • Ford
  • Foton
  • GAC
  • Geely
  • Genesis
  • Great Wall
  • Haima
  • Haval
  • hawtai
  • Honda
  • Hummer
  • Hyundai
  • Infiniti
  • Isuzu
  • JAC
  • Jaguar
  • Jeep
  • Kia
  • Lada
  • Lamborghini
  • Land Rover
  • Lexus
  • Lifan
  • Maserati
  • Mazda
  • mercedes benz
  • MINI
  • Mitsubishi
  • Nissan
  • Opel
  • Peugeot
  • Porsche
  • Ravon
  • Renault
  • Rolls Royce
  • Saab
  • SEAT
  • Skoda
  • Smart
  • ssangyong
  • Subaru
  • Suzuki
  • Tesla
  • Toyota
  • Volkswagen
  • Volvo
  • Zotye
  • UAZ
  • Acura
  • Alfa Romeo
  • Aston Martin
  • Audi
  • Bentley
  • BCC
  • bmw
  • Brilliance
  • Cadillac
  • changan
  • Chery
  • Chevrolet
  • Chrysler
  • Citroen
  • Daewoo
  • Datsun
  • Dodge
  • Dongfeng
  • D. S.
  • Exeed
  • FAW
  • Ferrari
  • FIAT
  • Ford
  • Foton
  • GAC
  • Geely
  • Genesis
  • Great Wall
  • Haima
  • Haval
  • hawtai
  • Honda
  • Hummer
  • Hyundai
  • Infiniti
  • Isuzu
  • JAC
  • Jaguar
  • Jeep
  • Kia
  • Lada
  • Lamborghini
  • Land Rover
  • Lexus
  • Lifan
  • Maserati
  • Mazda
  • mercedes benz
  • MINI
  • Mitsubishi
  • Nissan
  • Opel
  • Peugeot
  • Porsche
  • Ravon
  • Renault
  • Rolls Royce
  • Saab
  • SEAT
  • Skoda
  • Smart
  • ssangyong
  • Subaru
  • Suzuki
  • Tesla
  • Toyota
  • Volkswagen
  • Volvo
  • Zotye
  • UAZ

Vitaly Kabyshev,

A punctured tire is always very annoying. But it is better to know about the flat tire in advance - this is where tire pressure sensors will help.

The first patent for a tire was obtained in 1846, and since then the wheels have been constantly punctured. It is clear to anyone that a flat tire does not bode well. Yes, and dropped pressure can be very dangerous: it’s not for nothing that in the “Daily Maintenance” section of the car’s operating instructions, the item “Checking tire pressure” is one of the first.

When a tire "breathes", the rolling resistance increases significantly. Where does this lead? To an increase in fuel consumption, increased tire wear and, of course, to the side slip of the car. Moreover, such a small drift to the side can be attributed to the slope of the road or rut. So the driver, by mistake or inexperience, can continue to move for quite some time. And the most dangerous thing about this is that in an emergency, for example, during a sharp maneuver or braking, a flat tire can break off the disc or turn over. And here it is not far from the accident.

Therefore, this disgrace must be fought with all our might. And the sooner the driver notices the loss of pressure, the better. Of course, the easiest way is to check the pressure before the trip by connecting a pump or pressure gauge to each wheel in turn. But we are lazy and forgetful people. And the pleasure of poking around in the cold or in the rain with some kind of devices is small. Moreover, there is already a whole bunch of systems that can check this same pressure.

China-made caps indicate pressure loss by changing color. Informativeness is good, accuracy is questionable.

The simplest of them are special caps with color indicators, which are installed instead of the standard caps on the boost valves. The pressure dropped below, say, two atmospheres - a warning yellow (orange, purple) strip will appear under the transparent cap of such a miracle cap. Yeah, it's clear that something is wrong with the wheel, we need to check. The pressure has dropped even lower - the cap will “paint” in a different, usually red color, which will indicate the criticality of what is happening. The advantage of this approach is simplicity. Minus - not enough good information content. After all, the caps can only be seen during a stop. Still, getting around the car before the trip, looking at the colors of the caps, is much easier than measuring the pressure every time.

Another disadvantage is that the caps begin to inform about the change in pressure only when it falls below some certain values, which, by the way, can be quite normal for your car and your wheels. So, you need to select them exactly for your car.

The radio sensors of many electronic monitoring systems are mounted on the disk using special clamps.

And in order to notice something wrong while driving, it would be nice to have an electronic system on board that would automatically notify you of dangerous pressure drops. And not just notify, but would do it on time (so that there was time to orient) and without false positives.

The installed control system in this case will warn the driver at the right time about a change in the corresponding parameter and give him enough time to stop the car safely. It is clear that in cases of a serious puncture or explosion of a tire, such systems will not help, since the driver will feel the car pull without any sensors. But with a “slow” puncture, such electronics are simply irreplaceable.

There are, for example, systems that transmit tire pressure and temperature data to the central unit via radio. And there are those who can transmit this data via Bluetooth to phones or communicators. Well, it's very convenient.

X-Pressure pressure monitoring system developed by Pirelli. In the simplest version of Optic, it consists of four caps that are installed on regular valves. And they signal a drop in pressure by a change in color.

But there are more tricky systems that work without "real" pressure sensors, but through ABS. It is they who are usually put in the standard configuration of cars. How do they work?

Electronics with the help of sensors determines the speed of the wheels and their relative difference at each moment of time. As you know, when the pressure drops, the height of the tire profile becomes lower. Consequently, the speed of rotation of the wheel with the "sick" tire increases, therefore, the difference in the frequencies of rotation of the wheels on the same axle also increases. As a result, the system captures these changes - and gives an alarm signal.

Acoustic X-Pressure system. Sensors are built into the caps that register pressure, and radio transmitters that provide communication with the central unit. As soon as the pressure has dropped, a corresponding indication appears on the display of this unit and a warning sound signal is heard. Batteries in caps are enough for about 5 thousand hours of operation, which corresponds to five years of operation. Replacement of batteries in the caps is not provided, therefore, at the end of the service life, the set must be changed completely.

Why is this indirect method of determining tire pressure bad? Such systems can work, for example, in long turns, when for a relatively long time the system detects a large difference in the rotational speeds of the wheels of different sides (after all, the outer wheels spin at a higher speed than the inner ones). And these are flowers.

One of the more sophisticated X-Pressures, AcousticBlue can transmit pressure data via Bluetooth to a mobile phone. There is such a thing from 160 euros.

In some cases, such systems are useless at all. For example, when tires with run-flat technology are installed on a car.


Learn more
