How to make atv muffler


How To Make An ATV Run Quieter, Silent ATV Exhaust – AtvHelper

Making your ATV run quieter is actually not all that hard to do. It all starts with the exhaust noise. There’s a few ways you can lower the exhaust noise of your quad that are pretty easy to do yourself.

Suppressing the sound your ATV makes is pretty popular among hunters, bird watchers, or anyone that wants to disturb the wildlife where they ride as little as possible. Others want a quieter machine to avoid bothering the neighbors or to comply with sound pollution regulations in their area. Whatever the case may be you have a few options available to quiet down the noise your ATV makes.

The most effective way to reduce the sound an ATV makes is to install an aftermarket ATV exhaust silencer on your machine. Other options include packing the muffler with sound dampening materials, installing a spark arrestor, or repairing any leaks in the exhaust or muffler system.

ATV Exhaust Silencer

This is the preferred method, and you’ll see why later on when I talk about the other options out there. Getting and installing an aftermarket ATV exhaust silencer is so simple and straight forward, and suppresses the exhaust noise better than anything else you could do.

There are plenty of ATV exhaust silencer kits out there to look through. I suggest you start with this Silent Rider ATV Silencer on Amazon. It’s a bit more pricey than some of the other options out there, but well worth it. The Silent Rider makes many versions of this ATV silencer so you should be able to find one that fits your quad. They make it a custom fit for your machine and even offer a one year warranty.

If you’re a bit strapped for cash you could try this Universal Fit Kolpin Stealth Exhaust 2.0 with Heat Shield. Sure it’s about half the price of the Silent Rider, but it’s also about half the star ratings too.

Don’t be put off by that though, most of the complaints are about fitting issues. If you’ll be able to weld this on, you shouldn’t have a problem. The makers of this ATV exhaust silencer, Kolpin, claim there will be no loss in performance with this silencer. That’s a plus in my book.

Pack The Muffler

If you’re trying to spend as little money as possible, you’re looking at the do it yourself approach. You could silence the existing exhaust by packing the muffler with sound dampening materials.

I don’t recommend doing this because you will be restricting airflow out of your engine and could cause overheating or other issues. Still, It’s a viable option if you need to quite the engine quickly and cheaply.

I would advise against using steel wool or anything of that sort because it will heat up pretty quickly in your muffler. Eventually blowing red hot pieces of steel all over the trail. Instead try using heat resistant insulation of some kind.

Sure, you could go into your attic and grab some fiberglass insulation to stuff in your muffler. That should work fine, but the best thing to use would be this Standard Muffler Packing Material, or something similar.

Install A Spark Arrestor

This is low down on the list because it’s not made to reduce the sound of your ATV exhaust. It’s intended to prevent hot debris from being blown out of your exhaust and catching the woods on fire. But, it does reduce the sound your engine makes a little bit.

If you’re going to use the ‘pack the muffler’ method, I highly recommend you make sure your ATV has a spark arrestor because the chances of high heat material getting shot out your exhaust is a lot higher.

It’s pretty easy to install a spark arrestor, and you can find them for around 20 bucks online. Here’s an HMF Spark Arrestor For Exhaust from Amazon to get your search started. As for the install, you simply take the end piece off your exhaust tip, put this on the end of the exhaust and reinstall the end piece.

Repair Exhaust And Muffler System

This may seem like a no brainer but a lot of people don’t realize their exhaust system may have a crack or rusted out areas. If you’re trying to quiet your ATV because you feel the exhaust is overly loud, it may be as simple as fixing the existing exhaust system on the machine.

Check over the exhaust and muffler systems for any small cracks or rusted out areas. Get a flashlight and take care to get a good look, even a small hairline fracture could be causing extra noise.

Repack Exhaust Silencer

This is another simple maintenance tip I’ve noticed not many people know about. If you already have an exhaust silencer installed on your quad, you may just need to repack the insulation.

Some ATVs come stock with a silencer on the exhaust from the factory that you will need to repack. You can use the same silencer packing material I recommended up above in the ‘pack the muffler’ section.

You should only need to do this every few years depending on how much you ride. It’s a simple process. Start by taking the exhaust silencer off the exhaust and disassemble until you have access to the material in the silencer.

Pull out all the old silencer packing material and clean the core. It doesn’t hurt to blow out the silencer with compressed air if you can. Install new packing material and reassembly the silencer. Easy as that, you’re done.

Sum It Up

There you have it, there’s a few different ways to make your ATV exhaust quieter. I would start with inspecting your exhaust and muffler for damage, rust, and cracks to make sure you don’t have a problem before going through the process of suppressing your ATV exhaust.

If everything looks good, I would repack the stock silencer if you have one, or go ahead and buy an aftermarket silencer for best results. Install a spark arrestor for a little help with the noise if you don’t already have one.

In a pinch you could always pack the muffler, but remember, that could lower your airflow which will reduce your engine power or cause problems.

Sharing is caring!

  • Facebook
  • Twitter

How to Make Your UTV Quiet and Hush Your Angry Engine

You might love BRAAAP with your morning coffee, but your neighbors and your missing dog don’t. It’s time to tame the beast, save your hearing, and make your UTV quiet.

Or maybe you don’t and you’re just as tired of the noise as your dog. Either way,e we’re looking at what makes UTVs so dang loud and what you can do to make them a little less rowdy. Check it out.

What Makes a UTV Loud?

The 4-cylinder, 2.5-liter engine in your grandma’s SUV doesn’t rattle windows the way your 2-cyliner 1000 cc UTV does.

What’s the deal with that? Why are they so loud?

Simply put, UTVs aren’t put together with sound in mind. A consumer car is packed with insulation and vibration-reducing upholstery. It’s a selling point for a compact, but “quiet” isn’t a feature on a UTV.

As a result, the engine is right out in the open, the plastic panels are thin, and the noise is loud for everyone.

As vehicles age, they tend to get even louder. Loose or worn parts will vibrate and rattle louder. And an old exhaust system with corrosion can really amplify the sound you’re already making.

And noise isn’t just annoying—it can cause some real issues too.

The Importance of Quiet UTVs

There are a lot of reasons why quiet UTVs just makes sense, and why it’s not always good to blast your engine out for the whole world to hear.

1. They’re Good for Hunting

This is one situation we can all agree on. Hunting with a UTV is convenient and fun, but it demands a quiet UTV. The louder the UTV, the longer you’re going to have to sit and wait for the game to return or the farther you’ll have to hike to find any.

2. They Don’t Annoy Everyone

There’s a time and a place for a brain-rattling roar from your engine. It’s great at the starting line for a race or when you want to catch your buddy unawares with a quick pants-messing rev. It’s not so great when you can’t get away from it on your scenic mountain ride or when all your neighbors scorn you for test driving it around the block. Not to mention, you lose your voice just by holding a conversation while you ride.

3. They Don’t Damage Your Hearing

You might not think your UTV is that loud, but long exposure to moderately loud sounds can damage your hearing anyway. Riding for 6 hours with an uninsulated engine blaring just a few feet away can ruin your hearing. Maybe not right away, but eventually you’ll be shouting, “WHAT!?” more than you would otherwise.

4. They Reduce Noise Pollution

The word of the day is “noise pollution.” When local, noise-sensitive residents live near a ride spot or in a town where UTVs are street legal, it causes problems.

Ten years ago, side-by-sides weren’t nearly as popular as they are today. And right now we’re on the cusp of our favorite hobby becoming a mainstream pastime.

That means people outside of the hobby that happen to live around popular ORV areas have to listen to more machines ripping through their neighborhoods than ever before.

You can’t ignore them—in America, everybody gets a vote. And places like Moab, Utah and the Oceano Dunes in California are already restricting UTV use citing noise pollution among other reasons.

Perhaps the best reason to consider a quiet UTV is to avoid unwanted restrictions at your favorite riding spot.

Noise pollution is becoming a bigger issue as the industry grows. Moab has already issued some restrictions to side-by-sides and ATVs to make it quieter. For places like this, quiet UTVs are more important than ever.
Photo by SuperATV

How to Make Your UTV Quiet

It’s not all doom and gloom for your ears and neighbors’ sanity—we know how to make your UTV quieter. Here are a few tried-and-true methods you can use to make any UTV quieter.

1. Get an Exhaust Silencer

Installing an exhaust silencer is a great start to quieting down your UTV. These muffler replacements are relatively inexpensive and very easy to install. They generally give you a beefier muffler and redirect the noise down instead of up and out. It’s not a magic bullet, but you will notice the difference.

2. Insulate Your UTV

Insulating your UTV is a little more of a DIY project than just buying an exhaust silencer. You’ll need to purchase vehicle insulating material like Dynamat and apply it under plastic panels to help dampen vibration. With a little ingenuity and elbow grease, you can quiet down your UTV a lot.

3. Fix Issues

Finally, giving your machine an all-around tune-up can get rid of any extra rattles and vibrations that aren’t supposed to be there. Got old bushings? Replace them. Wheel bearings wearing out? Get new ones. Belts slipping? Time to upgrade.

Go through and tighten your bolts too. Making sure everything is tight and in good working condition will keep the sound down.

Keeping your UTV in good working condition is one way to make it quieter. Tighten bolts, replace worn parts, and wash away mud to reduce noisy vibration.
Photo by SuperATV

Quietest UTV on the Market

If you’re looking for the quietest UTV on the market, nothing beats an electric UTV. The Ranger EV, Hisun Sector E1, and Tracker Off-Road EV are all class-leading electric UTVs that balance power and performance. And they do it all with just the sound of turning gears and a low electric hum.

We understand that a lot of people are nervous about getting an electric UTV. The options are slim and the range is limited. But with commitments from companies like Nikola, Segway, and BRP to make the high performance electric vehicles of the future, the future of electric side-by-sides is looking up.

The electric market’s about to blow up—soon you won’t have to think twice about getting one.

Break the Not-So-Silent Curse

A quiet UTV is the way to go. Whether you’re retrofitting your favorite side-by-side with insulation and an exhaust silencer or thinking about getting an electric UTV, quieting down is a win-win. It will change your experience for the better… and your neighbor’s too.

Why do you want a quiet UTV? Let us know in the comments!

Do-it-yourself ATV muffler tuning. Varieties. Methods.

ATV muffler tuning can be conditionally divided into four types of tasks to be solved:

  • Exhaust thermal insulation;
  • Exhaust noise reduction;
  • Increased engine power by installing a straight-through muffler;
  • Installation of a snorkel on the exhaust pipe of an ATV (for swimmers).

As you can see, each of the above types of muffler tuning solves its own, specific task, but we will try to acquaint you with all four types of muffler tuning as briefly and as easily as possible and give you, as they say, food for thought.

You may be interested in the article - "Cleaning the muffler of an ATV with your own hands."

ATV mufflers.

This type of muffler is designed to increase engine thrust, lighten the stock design (especially important for sports tuning), and, in addition, these mufflers have a beautiful acoustic effect.

The increase in power is due to the fact that all unnecessary elements that can slow down the flow of exhaust gases are removed from the design of the muffler, roughly speaking, the exhaust in this case goes without obstacles, directly. There are a great many models of direct-flow mufflers for ATVs on sale, but their cost is very high, and therefore craftsmen make direct-flows with their own hands.

We bring to your attention the simplest scheme of a straight-through muffler.

As well as the finished silencer in the section.

And you can appreciate the pleasant and daring sound of a straight-through muffler by watching this video.

ATV Exhaust Thermal Insulation.

Why is it necessary to insulate the muffler pipes and reduce their heat transfer? Most often, this type of tuning is used on ATVs, the exhaust system of which is very close to the gas tank and, with the active operation of the ATV, brings a lot of trouble to the owner.

There is also an opinion that reducing the heat transfer of the muffler pipes allows you to keep the exhaust gas temperature high, which, in turn, increases the exhaust gas flow rate and has a positive effect on engine health.

A special muffler thermal tape is used to insulate the pipes. There is a tape with a width of 2.5 and 5 cm, for an ATV, a width of 2.5 cm will be optimal.

When reassembling the exhaust system, use heat resistant sealant to seal the joints.

Silencer for ATV.

This type of muffler tuning is especially relevant for hunters, but can also be indispensable for people riding an ATV with a loud exhaust in densely populated areas. The disadvantages include a decrease in engine power when using additional mufflers, although manufacturers claim that this does not happen.

Factory models of additional mufflers (for example, KOLPIN) are very easy to mount on an ATV and also easy to dismantle if necessary, but again everything comes down to money, and ATVs make an additional jar with their own hands and connect it to the main muffler using a small pipe and clamps .

You can listen to the sound of the exhaust with an additional muffler in the video below.

ATV exhaust snorkel.

This snorkel is made solely to avoid water entering the engine through the exhaust pipe and to easily overcome deep fords.

It is very easy to make a nozzle: as a donor, you can use the muffler pipes of a VAZ car, choosing the most suitable length in the store, welding a snorkel of the shape and length you need on the spot, and you can fix the structure with clamps.

If overcoming fords is not a frequent occurrence for you, it is more expedient to use a stainless corrugated pipe (sold in hardware or plumbing stores) and attach it with clamps for the duration of the “water procedures”.

Well, in the end, we offer you a photo of frankly brutal exhaust tuning, as you can see, sometimes everything is limited only by our imagination. Good luck on the road and stay with us.

Muffler for ATV

monssson

Are you tired of the loud exhaust sound on your ATV? Are the neighbors complaining? Do you use an ATV for hunting? animals scatter from you Try our silencer!!! .Now you will enjoy a quiet ride without any power loss or performance degradation. Easy to install. Easily dismantled.
All hardware is included, no need to weld parts or make modifications to the ATV.
- Sophisticated sound suppression system reduces noise by up to 60% without power loss!
- Uses steel construction for durable use. It is made for all types of ATV equipment, including all-terrain vehicles and swamp vehicles.
cell.0105

monssson

Monssson


Monssson

Tsepoych

    And something else? If the price turns out to be acceptable, of course

    monssson

    no more compact did the effect not the same. price 8500 weight 4.5 kg fastening under the ball for someone removable then the bracket is attached to the frame.

    Miner1976

    Throw off the link on YouTube

    Monssson 9000


  • Forester+

    monssson

    did not. But if you have a desire, then you can send it to the "jar", but how to fix it and the adapter will have to be thought by yourself

    forester +

    monssson

    Yes, it differs in its throughput by the number of labyrinths, the diameter of the mesh, the thickness of the metal "Okovskaya" can, according to its technical characteristics, will rather not suppress, but increase the exhaust roar. who does not believe can check.

    SimonF

    Do you make for stealth 600?

    monssson

    no friends standing in the garage x8 chinese here and doing it.

    Forest wolf 63

    How much will it cost at Can Am?

    monssson

    Only on x8. Other quadras require the presence of vehicles. But if you have a desire, you can send it to the "bank", but how to fix it and the adapter will have to be thought for yourself, this will be considered not a finished product, the price of a ruble is two cheaper, the price was announced above!

    Amigo 28

    Does the towbar continue to function after the silencer is installed or is it removed every time?

    monssson

    the towbar remains in place, unless of course it is removable and performs its functions in any case. on the other hand, the muffler can be removed quickly and easily and can be removed!

    vicvol73

    I will mark

    Hatsan OPTIMA 12

    Contact T. S.

    I wrote you SMS, although I ate to chat.

    No answer, if the phone number is different please write.

    Yours faithfully.

    monssson

    call me
    https://www.avito.ru/samara/mo...hitel_911477871
    http://forum.x8faq.ru/viewtopic.php ?f=14&t=1049

    tigerhunter

    did you do it on X6?

    ThoR177

    Interested in CF Х5НО

    zabuqrai

    How stupid people are. Written only in X 8

    ThoR177

    Smart guy, watch your language!

    monssson

    friends don’t swear, the technique is all different and we are working on creating a universal additional silencer, there are a lot of thoughts, but they all crumble from the variety of ATV models. You can put a silencer on any device and I have such cases was a lot of the main condition is the presence of technology.
    RESPECT TO YOU .

    aak

    how much does your muffler "strangle" the engine?

    monssson

    the diameter of all holes is in no case less than the standard exhaust muffler. Prima, the gas flow is divided into many small ones, its passage through the muffler is lengthened due to the many labyrinths at the end, it unites and freely exits closer to the ground, which also underestimates the noise level.

    monssson

    this does not affect the dynamic characteristics of the engine. in any case, whoever puts it is not in a hurry unnecessarily, but quietly, without noisy, drives up to the right place and also quietly leaves in that sense of this device.

    Vitalya imashev

    Cool thing I met a hunter in the forest on an ATV with your additional muffler I really liked the result of the exhaust in general it’s not audible like the wind in the forest I at first thought the scooter was driving through the forest. now it caught fire the desire to also ride and enjoy the singing of birds in the forest and not scare all the animals for five kilometers, and the neighbors will grumble less, tell me what you can offer me for my BRP 1000, I know that it’s not according to your model, I will be very grateful for any advice and help.

    ----------
    icler

    monssson

    call me on

    https://www.avito.ru/samara/mo... hitel_911477871
    http://forum.x8faq.ru/viewtopic.php?f=14&t=1049

    ARIK8880

    Contacts in PM

    Monsson 901.2019 - 12 58

    Friends with the popularity and high demand of this offer, as well as with the complexity of manufacturing, a slight increase in the price of an additional muffler is expected from the new year.
    HAPPY NEW YEAR TO ALL.

    Vitalya imashev

    Thank you very much. this is exactly what I wanted. I recommend it to all hunters and not only. I will post a photo later.

    Arik880

    Guys don't raise prices, and so the price is normal.

    monssson

    Friends demand exceeds supply! the waiting list is two or three weeks and the price for seven years is raised a second time. With respect to everyone, but the closest analogue costs twice as much!
    http://www.atvtun.ru/kolpin_protivoshumnaya_nasadka_na_glushitel

    monssson

    This miracle is done by the Americans if anyone liked write we have one in stock soon we will shoot a comparative video!

    Yuriysergievposad

    monssson
    Are you tired of the loud exhaust sound on your ATV? Are the neighbors complaining? Do you use an ATV for hunting? animals scatter from you Try our silencer!!! . Now you will enjoy a quiet ride without any power loss or performance degradation. Easy to install. Easily dismantled.
    All hardware is included, no need to weld parts or make modifications to the ATV.
    - Sophisticated sound suppression system reduces noise by up to 60% without power loss
    - Uses steel construction for durable use
    Seems to be half the price of stock. location Samara region. It is made mainly for x8, but there were options for other models of ATVs and bugs, everything is negotiated individually. 89093715861

    Please tell me, if you send a muffler from a taiga snowmobile, can you reduce the sound?

    Yuriysergievposad

    monssson
    Are you tired of the loud exhaust sound on your ATV? Are the neighbors complaining? Do you use an ATV for hunting? animals scatter from you Try our silencer!!! .Now you will enjoy a quiet ride without any power loss or performance degradation. Easy to install. Easily dismantled.
    All hardware is included, no need to weld parts or make modifications to the ATV.
    - Sophisticated sound suppression system reduces noise by up to 60% without power loss
    - Uses steel construction for durable use
    Seems to be half the price of stock. location Samara region. It is made mainly for x8, but there were options for other models of ATVs and bugs, everything is negotiated individually. 89093715861

    Please tell me, if you send a muffler from a taiga snowmobile, 2 stroke, can you reduce the sound?

    monssson

    .

    Yuriysergievposad

    monssson
    difficult situation with the muffler from the taiga snowmobile. I have never come across looked pictures thought how to help and came to the conclusion that the engine compartment does not give vent to fantasy. can't be added! and the native is competently made to modify it is not worth it. either the engine will choke or everything will light up. Yuriysergievposad try to wrap the entire exhaust system with non-combustible material like tape as in the picture. % 15 will be quieter.

    Understood, thank you.

    Taydak

    Good afternoon, do you do Haysan 500? And another question, is there any power loss after installing your muffler?

    monssson

    You can make it for any ATV and bugs, including the Haysan 500 stealth, but if you have it in the garage !!! currently stands sf moto x8 and sf moto 500 On the issue of power loss after installing an additional muffler, I will answer - it’s a bad case! The basic rule in the manufacture of a muffler is that the labyrinth and all holes with their number should not be narrower than the outlet of the standard exhaust system!

    monssson

    Friends, I'm sorry, I rarely visit !!! I bring to your attention a new product, an additional muffler on the SF moto 500-A, it became possible to make several copies.

    Monssson


    Monssson

    Monssson : 2105 9000 Monsson 9000 Monsson 9000 Monsson

    Successful test! There is a video on my channel!

    Kalina

    Will the 800 bomb be silenced?

    monssson

    I will make a muffler based on the throughput and cubic capacity of your ATV! The difficulty is to install and hermetically connect!

    monssson

    I will make a muffler based on the throughput and cubic capacity of your ATV! The difficulty is to install and hermetically connect!

    monssson

    Contact me at least by SMS, I will give you a WhatsApp number. In the tablet I have similar developments!

    monssson





    monssson

    This is a new more perfect model4 of the additional silencer! Increased the severity of the can, the most compact setting without interfering with the functions of the towbar! And a more advanced exhaust sound suppression system.

    zemba

    And for Chinese Lifans
    https://www.220-volt.ru/catalo...830958180592232 76730]https://www.220-volt.ru/ catalo...818059223276730
    did you try to make mufflers?
    On such motors, cheap all-terrain vehicles karakat-breaks on UAZ fists "a la Vologda" are usually assembled on such motors.
    They rumble mercilessly, but their hands don't know how to attach something from the Oka.

    monssson

    Chinese Lifans were made yes, but only the silencer itself!!! you have to connect and install in place on your own, the models are different, the layout and location of the power unit are also different for everyone. I always advise such Kulibins to take the exhaust gases further from the seat so that the combustion products are not inhaled !!! There were no complaints.

    zemba

    Price, what, size, weight?

    monssson

    zemba the price does not fundamentally change, all the work is in the lineup of the barrel itself! material iron of different thicknesses internal labyrinths many holes of different diameters, size 25-30 cm diameter 12-15 everything depends on the cubic capacity and throughput of the power unit, respectively, the weight also changes 5-8 kg. Vosnavnom difficulty in installation in place. Everything needs to be discussed!!!
    whatsapp and viber +79179528938 .

    monssson

    BAD NEWS due to increased demand, the order waiting time has increased from one week to two!

    monssson

    BAD NEWS due to increased demand, the order waiting time has increased from one week to two!

    monssson

    GOOD NEWS despite the critical fall of the ruble, the price remains the same!

    Kalina

    There is good news, how to try it on remotely?

    monssson

    Kalina is waiting for a visit, otherwise it is impossible to remotely try on, but if you have not changed the design and everything is in order, how can I take a photo and even a video of the fitting!!!

    monssson


    monssson

    Watch the video on YouTube channel.

    BMP193

    I myself installed an additional one from Oka on the CF 600. Everything worked out, the main sound remained from the variator. Corrugated stainless steel plumbing, from Leroy (~500 rubles).

    monssson

    BMP193 Well done, I just forgot to mention that it is three times larger than the regular one and you can’t put it without welding! drum! watch the comparison video.

    monssson

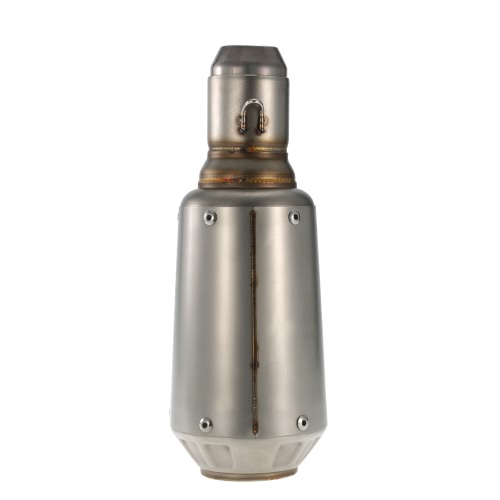

    ATV friends!!! Work on the creation of a universal muffler has ended. The barrel itself has remained unchanged, since for eight years it has proven itself from the best side and does not need to be improved. Innovations are a strong bracket with double fastening to the barrel and the possibility of bending in the right direction! and the introduction of AISI 304 stainless steel flexible bellows for exhaust systems. The only thing I ask when ordering is the outer diameter of the standard muffler outlet and discuss the installation location, since not everyone has a tow ball mount !!!



    monssson

    Despite the fact that the labor intensity and the cost of manufacturing a universal additional silencer is an order of magnitude higher than usual, we will not raise the price this year.

    monssson



    monssson

    Individual approach to each order, unlimited opportunities to make your trips quieter and more comfortable.

    blawe

    Can I have a link to YouTube with comparative tests?

    Taydak

    Didn't they make Haysan500 stealth?

    monssson

    In this video, we compared our version of the silencer with foreign ones!
    https://www.youtube.com/watch?v=xcjpmeIN4Tg
    The introduction of a special corrugation for exhaust systems into production has made it possible to improve any ATV model!

    monssson

    https://www.avito.ru/samara/za...itel_1948057706
    my tablet is always at hand and viber and vatsab
    +7938.95 Sergey

    monssson







    monssson

    https://www.avito.ru/samara/za...itel_1948057706
    my tablet is always at hand and viber and vatsab
    +79179528938 Sergey. 9Is the topic alive or dead?
    I'm interested in the muffler for Suzuki Kingquad 750.
    How much does it cost, how fast is the installation / dismantling, is it possible to ride with it all the time?
    Fragment is

    Monssson


    Monssson


    Monssson 9+79179528938 Sergey.
    Test video available!

    monssson


    RSL

    Hello, on AVANTIS HUNTER 200 - is it possible to do it?

    monssson


    marmosha

    monssson

    marmosha you can say that he did everything! the barrel itself without fundamental differences! only cubature affects the flow area of ​​gases in the labyrinth.
    I don't remember exactly what the 400 BRP looks like. There are a lot of photos, only the rear view! I know that the same model may differ over the years and the place of attachment is always at the choice of the customer !!!
    skinte me on a tablet photo rear view +7 917 952 89 38 Sergey. maybe I have a photo of the finished and installed version.

    monssson



    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson


    monssson

    https://vk. com/public210437417

    igor honda

    Are there options for Suzuki Kingquad?

    monssson

    Good day. I assemble an additional quiet muffler individually for each model, taking into account the wishes and possible attachment points, strictly according to the cubic capacity of the engine! On the Suzuki Kingquad 750, it is mounted on a bracket for a towbar ball, if there is no bumper on the back, there is an option for attaching to it.
    Write to WhatsApp +7 917 952 89 38 so quickly. Production time 3-4 days Price 12 to Send by SDEKOM.

    Igor Honda

    I have a cap. I have 500, not 750

    Monssson

    IGOR HONDA on the photo VIZHA RIDA I suggest mounting on it, you only need to make two holes for 8mm! And you need to clarify the outer diameter of the pipe outlet of the standard muffler, so that the connecting part of the quiet muffler fits snugly on it!

    monssson

    photo for example! WRITE ME AT LEAST SMS to the above number, I will start assembling, I rarely go here only when I have time to sit down at a PC.

    monssson


    monssson


    monssson


    ruslangalitzin

    Good day.


    Learn more
